SD Card Data Structure
1.
When the SD card is first inserted into the datalogger the folder HBA01 is created.
2.
The first datalogging session will then create a file HBA 01001.xls. All data will be saved to this
file until the number of columns reaches 30,000.
3.
After 30,000 columns, a new file (HBA01002.xls) is created. This is repeated every 30,000
columns until HBA01099.XLS. At this point a new folder, HBA02 is created and the process is
repeated; HBA10 is the final folder.
Transferring Data to a PC
1.
Remove the memory card from the datalogger and plug it into the SD card slot on the PC.
2.

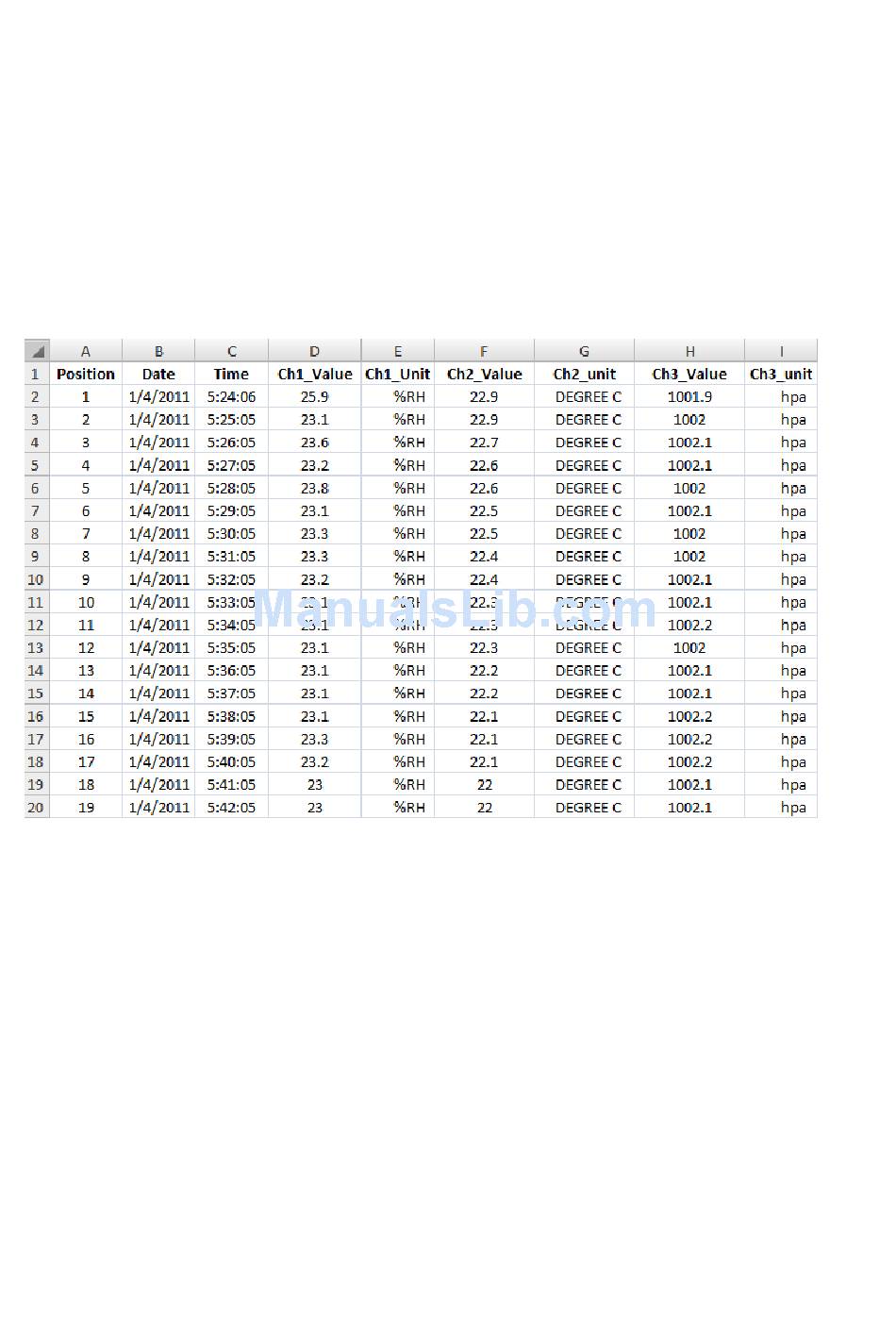

Launch Excel® and open the data file on the memory card from within the spreadsheet
program. The file will appear similar to the one shown below.
5
SD700-EU-EN V2.4 07/13
