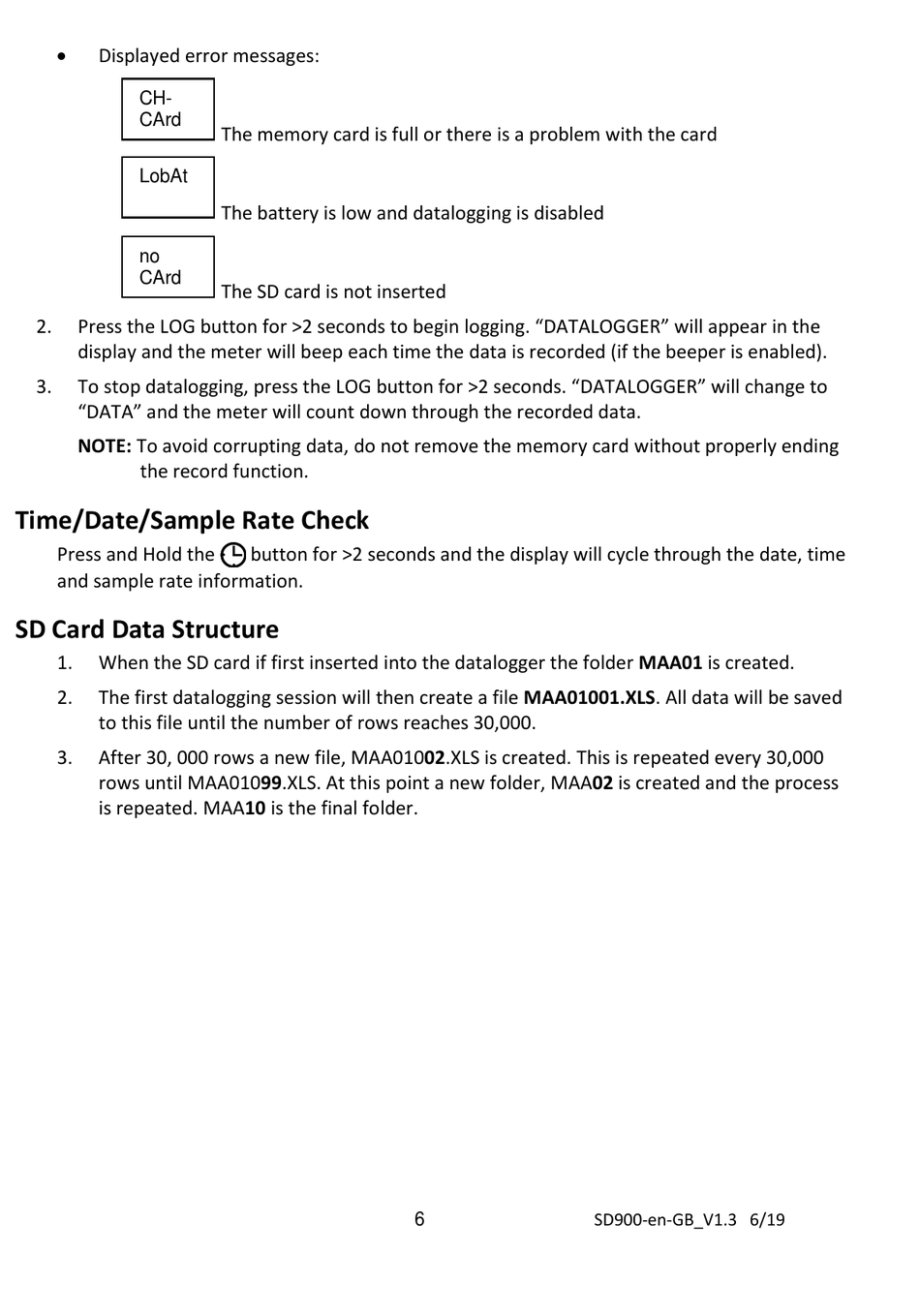

Time/Date/Sample Rate Check; Sd Card Data Structure - Extech Instruments SD900 User Manual

3-channel dc current datalogger
Table of Contents

Advertisement

Displayed error messages:
CH-
CArd
LobAt
no
CArd
2.
Press the LOG button for >2 seconds to begin logging. "DATALOGGER" will appear in the
display and the meter will beep each time the data is recorded (if the beeper is enabled).
3.
To stop datalogging, press the LOG button for >2 seconds. "DATALOGGER" will change to
"DATA" and the meter will count down through the recorded data.
NOTE: To avoid corrupting data, do not remove the memory card without properly ending
the record function.

Time/Date/Sample Rate Check

Press and Hold the
and sample rate information.

SD Card Data Structure

1.
When the SD card if first inserted into the datalogger the folder MAA01 is created.
2.
The first datalogging session will then create a file MAA01001.XLS. All data will be saved
to this file until the number of rows reaches 30,000.
3.
After 30, 000 rows a new file, MAA01002.XLS is created. This is repeated every 30,000
rows until MAA01099.XLS. At this point a new folder, MAA02 is created and the process
is repeated. MAA10 is the final folder.
The memory card is full or there is a problem with the card
The battery is low and datalogging is disabled
The SD card is not inserted
button for >2 seconds and the display will cycle through the date, time
6
SD900-en-GB_V1.3 6/19
