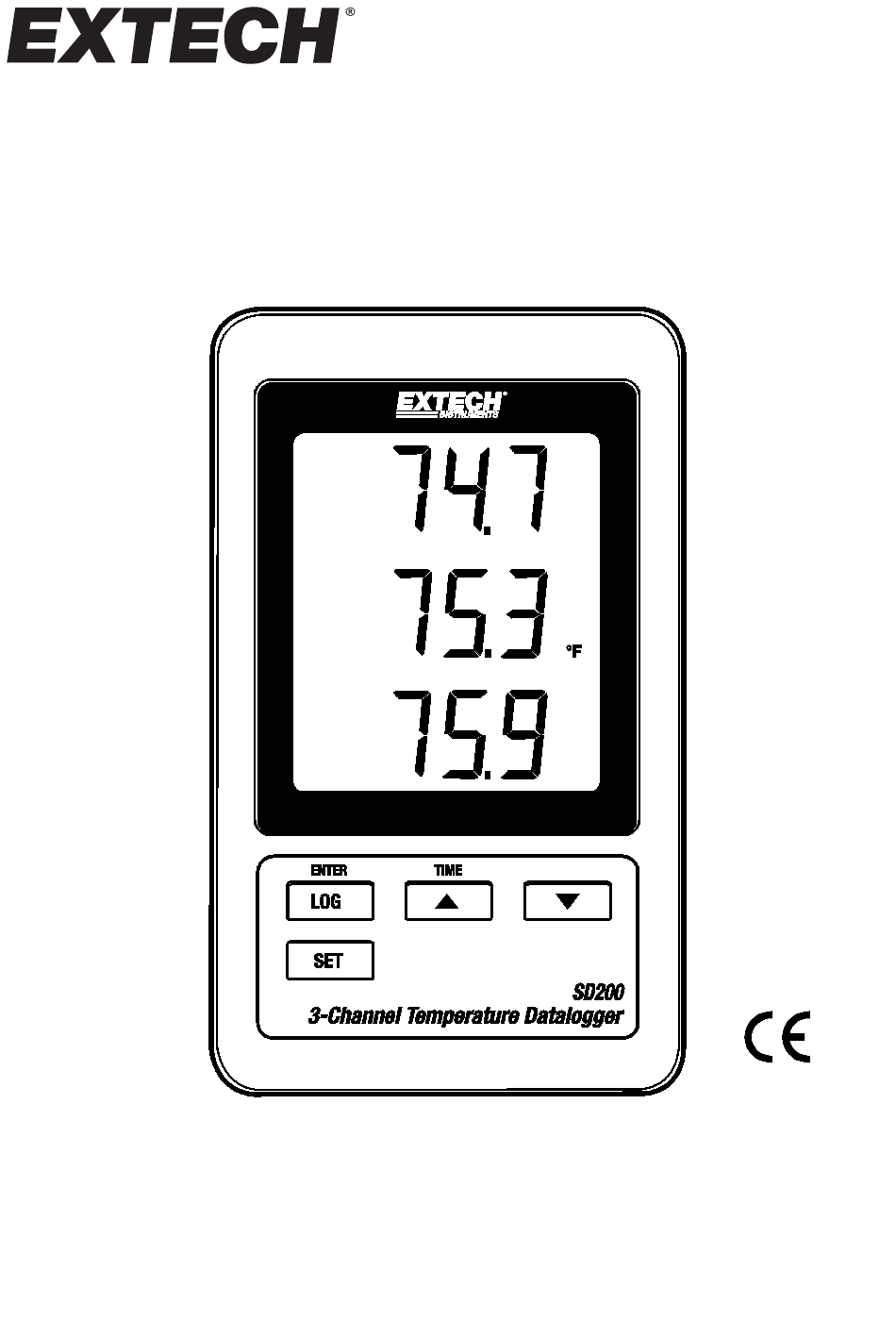

- Page 1 USER MANUAL Three-Channel Temperature Data Logger Model SD200 Additional languages available at www.extech.com...
- Page 2 Introduction Congratulations on your purchase of the Extech SD200 Three-Channel Temperature Data Logger. This meter displays and stores temperature readings for up to three type K thermocouple probes. Data is stored on a SD card in Microsoft Excel® format for easy transfer and use on a PC.
- Page 3 Product Description T1 display T2 display T3 display LOG (ENTER) button SET button Temperature unit icon ▲(TIME) Up arrow button ▼ Down arrow button AC adaptor connection 10. Reset button 11. PC (RS-232) jack 12. SD memory card slot 13. T1 thermocouple input 14.
- Page 4 Operation Meter Power Install six (6) ‘AAA’ alkaline batteries in the rear compartment or use the supplied AC adaptor to power the meter. Remove the Philips head screw that secures the rear battery compartment and lift off the cover. Insert the batteries observing correct polarity. Secure the compartment cover before use.
- Page 5 CArd SD card not inserted or is damaged. Long press the LOGGER button to begin logging. “DATALOGGER” will appear in the display (between T2 and T3 displays). The meter will beep each time data are recorded (if the beeper is enabled). To stop data logging, long press the LOGGER button.
- Page 6 Advanced Settings Mode The SET function is used to: • Format the SD memory card • Set the date and time • Set the data logger sample rate • Set the beeper ON/OFF • Set the SD card decimal character •...
- Page 7 Specifications Display Multifunction LCD Size: 2.4 x 2.0 in. (60 x 50 mm) Display update rate One (1) second, approximately Temperature probes Type K thermocouples SD memory card sizes 1 GB to 16 GB (2 GB card included) Data logger sample rate 5, 10, 30, 60, 120, 300, 600 seconds or Automatic (AUTO) Temperature compensation Automatic...
- Page 8 Two-year Warranty Teledyne FLIR warrants this Extech brand instrument to be free of defects in parts and workmanship for two years from date of shipment. To view the full warranty text please visit: https://www.flir.com/support-center/warranty/instruments/extech-product-warranty/ Calibration and Repair Services Teledyne FLIR offers calibration and repair services for the Extech brand products we sell. We offer NIST traceable calibration for most of our products.
