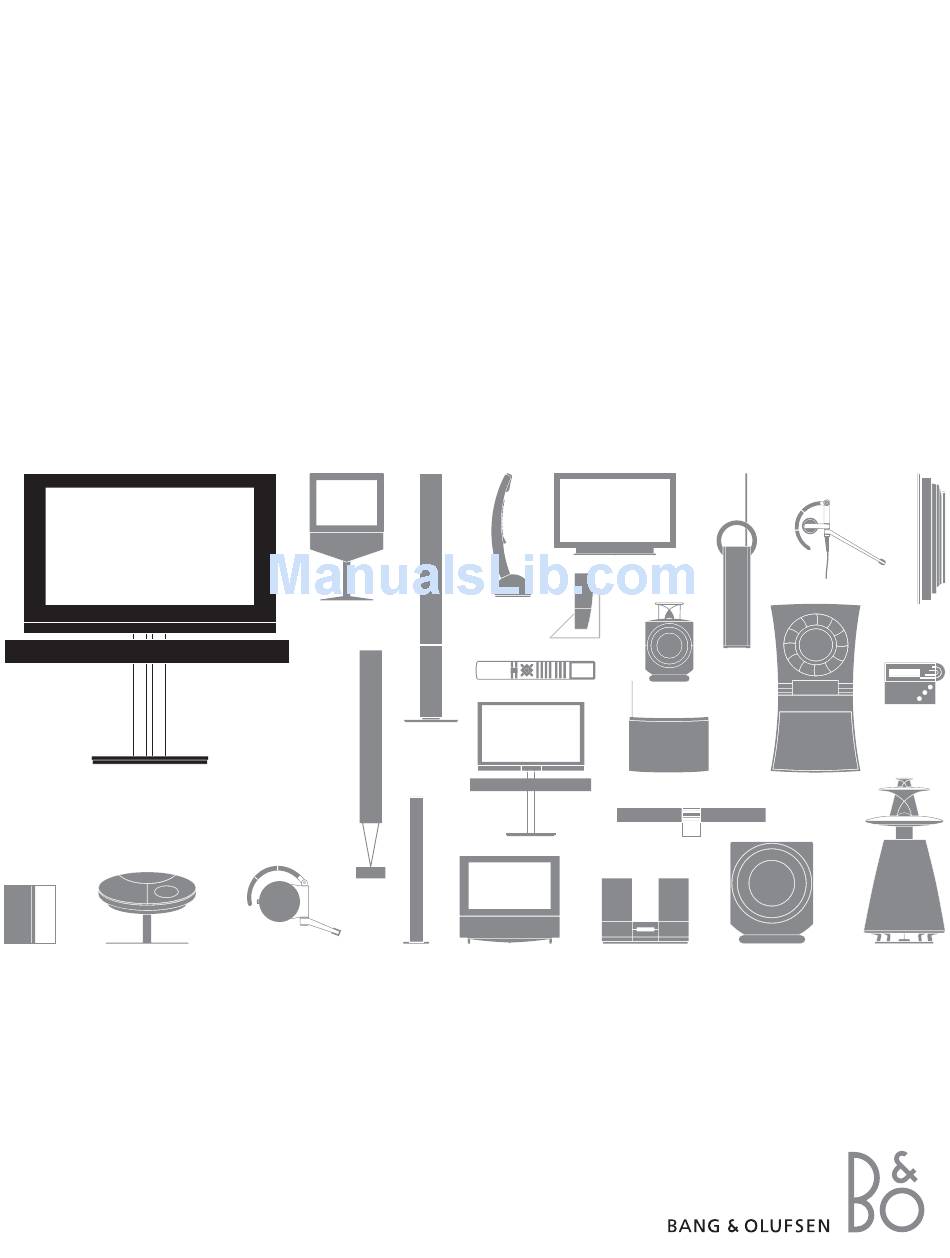

  • Page 1 BeoVision 7 Guide...
  • Page 2 Cautions – Do not place the television in direct sunlight or CAUTION direct artificial light, such as a spotlight, as this RISK OF ELECTRIC SHOCK may reduce the sensitivity of the remote control DO NOT OPEN receiver. Also if the screen is overheated, black spots may appear in the picture.
  • Page 3 Dear Customer Contents This Guide contains information about the daily use of your Watch television Bang & Olufsen product and connected equipment. We expect Teletext your retailer to deliver, install and set up your product. Use the Blu-ray player On www.bang-olufsen.com you can find further information and relevant FAQs about your product.
  • Page 4 How to use your remote control Beo5 operation Beo4 operation You can operate your television with Beo5 or Beo4. The instructions in this Guide are mainly based on Beo5. Soft button, touch screen to select* The Beo4 display shows you the activated source or function Switch on a source or select a function Switch on the TV* Back up through Beo5 displays...
  • Page 5 Introduction Navigate in menus and select settings using your remote control. On page 50 you will find an overview of the menus in your television. Display and menus … Menu Select TV’s Switch on TV Switch on Show menu Information about the selected source is zone optional shown in the display window to the right.

  • Page 6: Watch Television

    Watch television Beo5 operation Choose a TV channel by its number or switch to another channel or source. Adjust the sound volume, change the sound type or language and turn the TV. Switch on the TV Activate the TV source to use these functions Channel name Select a TV channel...
  • Page 7 Beo4 operation Press Press 0–9 Previous 0–9 Select Activate Select channel Select previous channel Select Select Select numbers channel previous channel 0–9 Hold for Select page Select Activate numbers Accept Hold to Select page or channel and channel list channel activate accept Adjust volume.
  • Page 8 Teletext Beo5 operation Operate teletext through the menu bar at the top of the teletext page or the arrow buttons on your Beo5. Start teletext Activate teletext to use these functions Access the start page of teletext. Current page Move to pages Change broadcaster Access teletext pages you wish to see.
  • Page 9 Beo4 operation Text TEXT Press repeatedly to change screen mode Press repeatedly to change screen mode 0–9 0–9 Select page Move to Select page Go to index pages (100, 200, 300 …) Select page Move to ‘PAGE’ Index ‘PAGE’ and select pages Move to ‘CHANNEL’...

  • Page 10: Slow Playback

    Use the Blu-ray player Beo5 operation If your TV is equipped with the optional Blu-ray player, you can watch both Blu-ray discs and DVDs. With Blu-ray discs the menu uses blue colours and with DVDs the menu uses red colours. Switch on the Blu-ray player Activate the source of the Blu-ray player to use these functions...
  • Page 11 Beo4 operation Press Press … MENU 1–8 Select function Bring up menu overlay Select function PLAY Start playback Start playback STOP PLAY STOP Once to pause, press again to stop. Resume playback Once to pause, press again to stop. Resume Third to return to beginning of disc Third to return to beginning of disc playback...

  • Page 13: Table Of Contents

    Contents – BeoLink BeoLink system Connect and set up an audio system Connect and set up a BeoLink system Your television in a link room Two televisions in the same room...

  • Page 14: Beolink System

    BeoLink system Beo5 operation If you have a BeoLink system, you can operate all connected sources from both the main room and link rooms. TV sound on the audio speakers Activate main or link room sources Listen to sound from a TV source on your audio system speakers.
  • Page 15 Beo4 operation … Select audio speaker Select video source Select video source* zone … Select TV speaker zone Select audio source Select audio source* RADIO RADIO Select source Operate source as usual Select source Operate source as usual Select source Operate source as usual Select source Operate source as usual Link...

  • Page 16: Connect And Set Up An Audio System

    Connect and set up an audio system To obtain the benefits of an integrated audio/video system, connect a compatible Bang & Olufsen audio system to the TV using a Master Link cable. 1. Connect the audio system Connect the available sockets marked MASTER LINK on the TV and the audio system using a Master Link cable.
  • Page 17 Your audio/video system can be placed together in one room, or in two rooms with the TV in one and the audio system with a set of speakers in another. Select options The TV and audio system are set up in one To set the correct options with Beo5, select Option 2 Option 0...

  • Page 18: Connect And Set Up A Beolink System

    Connect and set up a BeoLink system Connect and set up a BeoLink system to see pictures and hear sound in link rooms. You can, for example, connect the living room TV to another video system or to a set of speakers in another room. Make link connections Connect the Master Link cable to the available To distribute video signals to link rooms, it...

  • Page 19: Your Television In A Link Room

    Your television in a link room If you have a BeoLink system, operate all connected systems through the TV in a link room. Connect link room TV 1 Connect the link room TV to the mains Follow the procedure described here when supply.

  • Page 20: Two Televisions In The Same Room

    Select OPTION? and Select V.OPT Select accept Option 4 Beo5 – operate the TVs … BeoVision 7 Select zone for the Select source Normally, if you have a Beo5, you can Zone ‘A’ TV you wish to use activate a source simply by pressing the relevant source button.
  • Page 21 Beo4 – operate TV in option 4 LIST BeoVision 7 Select LINK Select source Option 4 Normally you can activate a source simply by pressing the relevant source button, but if your TV is set to Option 4, you must do the following to activate a source, if you have a Beo4.
  • Page 23 Contents – Advanced use Surround sound and Home cinema Sound type Wake-up Timer Play Timer Edit and add TV channels Adjust picture and sound settings The pincode system Tuner setup Operate other equipment with Beo5 or Beo4...

  • Page 24: Surround Sound And Home Cinema

    Surround sound and Home cinema When you add Bang & Olufsen loudspeakers and a projector, you can turn your TV into a Home cinema system with surround sound. You can also select a picture format to customise the viewing experience. Select speakers for movie sound Bring up Scene Select Speaker...

  • Page 25: Sound Type

    Sound type While you watch TV, switch between available sound types and languages. Change sound type or language Sound Sound Bring up sound type Press repeatedly to select Switch between available sound types and languages. Sound type or language Store your favourite sound type when tuning in TV channels. See p. 26.

  • Page 26: Wake-Up Timer

    Wake-up Timer You can make the TV switch on automatically via the Wake-up Timer. A Wake-up Timer is a once only Timer which lasts for one hour and is disabled once it has been executed. Enter a Wake-up Timer Bring up ‘TV SETUP’ Select ‘PLAY TIMER’...

  • Page 27: Play Timer

    Play Timer You can make your TV switch on and off automatically by setting a Play Timer or a Standby Timer in your main room system. Timed play and timed standby Bring up ‘TV SETUP’ Select ‘PLAY TIMER Enter and accept menu and select Select source PROGRAMMING’...

  • Page 28: Edit And Add Tv Channels

    Edit and add TV channels Rearrange the order in which the channels appear and provide them with a name of your own choice. You can also delete a channel or add new channels, if available. Preset up to 99 TV channels on channel numbers of their own. Move a channel Select ‘EDIT Bring up ‘TV SETUP’...

  • Page 29: Adjust Picture And Sound Settings

    Adjust picture and sound settings Picture and sound settings are preset from the factory to neutral values which suit most viewing and listening situations. However, if you wish, you can adjust these settings to your liking. Adjust picture Bring up ‘TV SETUP’ Select ‘OPTIONS’...

  • Page 30: The Pincode System

    The pincode system The pincode system prevents people who do not know the pincode from using the TV. When the pincode system is activated and the TV has been disconnected from the mains for 15–30 minutes, the system goes into effect. Enter the pincode Enter pincode Accept...

  • Page 31: Tuner Setup

    Tuner setup Disable the TV or DVB tuner, if your TV or DVB source is a peripheral unit, such as a set-top box. Disable the internal tuner Select ‘TUNER Bring up ‘TV SETUP’ Disable/enable ‘TV Disable/enable ‘DVB‘ SETUP‘ in menu TUNER’...

  • Page 32: Operate Other Equipment With Beo5 Or Beo

    Operate other equipment with Beo5 or Beo4 The built-in Peripheral Unit Controller acts as an interpreter between connected video equipment, such as a set-top box, recorder or DVD player, and your Bang & Olufsen remote control. Beo5 operation Select source Select function The main functions of your equipment can be operated with the Bang &...
  • Page 33 Use the Bang & Olufsen remote control to gain access to the functions offered by your non-Bang & Olufsen equipment. Use equipment menus 0–9 Bring up equipment menu Navigate in Select function Step in pages/ Enter information Operate a connected equipment’s own menu menus channel lists via the remote control.
  • Page 35 Contents – Installation Set up your television Expand your setup Set up additional equipment Connection panels Sockets for temporary connections First-time setup of your television Loudspeaker setup Additional settings On-screen menus Cleaning...

  • Page 36: Set Up Your Television

    Set up your television Follow the guidelines for placement and connection described on this and the following pages. Place the TV When you place the TV, remember that the Due to the heavy weight of the TV, any moving or built-in motor unit will turn and tilt the TV to a lifting of the TV should be performed by qualified preset position when you switch it on.
  • Page 37 Placement options The television can be placed in several ways, some are illustrated to the right. Overview Locate the connection panels and other important 1 Cover for sockets for temporary connection, items. such as camera and headphones sockets. Push in to open, push again to close. 2 Cover for card reader (DVB-HD).

  • Page 38: Expand Your Setup

    Expand your setup Your TV supports a wide range of additional equipment. You can even connect a projector or a home automation system to control room lights and curtains. Only connect video recorders to AV1 or AV2. Disconnect from the mains Switch off TV Disconnect TV from mains While expanding your setup, the TV must be...
  • Page 39 Select Select Register additional equipment ‘CONNECTIONS’ in Select Bring up ‘TV connected Follow on-screen ‘OPTIONS’ menu ‘STANDBY SETUP’ menu equipment instructions If not detected automatically by the TV, register and register OPTIONS’ menu name* the equipment you have connected to the TV. sockets Repeat the procedure for each socket group.

  • Page 40: Set Up Additional Equipment

    Set up additional equipment Set up the TV with video sources and loudspeakers. Video signals Connect your video signals, such as a cable or antenna to the sockets shown on the diagram. POWER LINK 1 Loudspeakers DVB-T/C Use Bang & Olufsen Power Link speakers. Use the ANALOGUE cables enclosed with the speakers.

  • Page 41: Audio System

    Expand your setup, for example in a home cinema system with a projector and a home automation system. Home cinema setup Use a projector or connect a home automation system to the TV so you can control room lights and curtains. IR-receiver Home If the built-in IR-receiver for the remote control...

  • Page 42: Connection Panels

    Connection panels Any equipment you connect to the main connection panel must be registered in the ‘CONNECTIONS’ menu. See p. 37. LINK TV VGA IN PCMCIA DVB-T/C CINEMA CONTROL SMARTCARD PROJECTOR OUT CENTRE DVI-D OUT HDMI IN 1 (SUB) VIDEO L IN R IN SPDIF...
  • Page 43 “Greyed out” sockets on the illustration of the main connection panel may be occupied by internal connections. Do not disconnect the cables from these sockets! AV 1 L-IN, R-IN (AV 5) MASTER LINK Socket for AV connection of a primary recorder or Right and left line input.

  • Page 44: Sockets For Temporary Connections

    Sockets for temporary connections Connect headphones and listen to a TV programme, connect a camera or PC and see the pictures on the screen, or connect a Camcorder and watch or record your home movies. Make temporary connections S-VIDEO If you wish to register the connected equipment SPDIF permanently, use the ‘CONNECTIONS’...

  • Page 46: First-Time Setup Of Your Television

    First-time setup of your television This first-time setup procedure is activated when the TV is connected to the mains and switched on for the first time. If you want to change your setup at a later date, you can access the same menus and update your settings. Switch on the TV Switch on It takes the TV approx.
  • Page 47 Calibrate the stand STAND ADJUSTMENT At ‘SET LEFTMOST At ‘SET RIGHTMOST Set the maximum angle the TV will turn – left and POSITION’ turn left to the POSITION’ turn right to the right. The motorised movement of the TV will not point you wish to restrict point you wish to restrict the work until the calibration process has been...

  • Page 48: Loudspeaker Setup

    Loudspeaker setup Add Power Link speakers and up to two BeoLab subwoofers to your TV and you have a surround sound system. Select speaker setup Switch on TV and bring up Select ‘SOUND’ in ‘OPTIONS’ Select menu ‘TV SETUP’ menu menu Switch on the TV in TV or Home cinema mode before you adjust speaker settings for either...
  • Page 49 If your setup includes two different viewing positions, a Home cinema setup and a regular TV viewing setup, you must make two different loudspeaker settings. Set speaker distance Select ‘SPEAKER Select speaker and select distance DISTANCE’ menu Accept Enter the straight-line distances in metres between your favourite viewing position and the individual speakers.

  • Page 50: Additional Settings

    Additional settings You have the possibility to make additional settings, such as to set the positions for the TV to turn to, to set the correct time and date, and to make settings for the optional Blu-ray player. Bring up ‘TV SETUP‘ Select ‘VIDEO‘, Positions of the TV menu and select...
  • Page 51 Press the centre Press STOP to leave Press DVD and then Move to ‘OPTIONS’ Disable the parental lock button to bring up without disabling the press Menu twice to and press Menu to the menu. Press parental lock or press bring up the ‘TV reveal the Enable or disable the parental lock function on...

  • Page 52: On-Screen Menus

    On-screen menus General settings: Select your Zone, TV and Menu. Make settings TUNING* EDIT CHANNELS p.26 ADD CHANNELS p.26 AUTO TUNING p.26 MANUAL TUNING MANUAL TUNING (EXTRA) p.26 PLAY TIMER TIMER ON/OFF p.25 PLAY TIMER INDEX p.25 PLAY TIMER PROGRAMMING p.25 WAKE-UP TIMER p.24...
  • Page 53 Blu-ray settings: Select your Zone, DVD and DVD setup. Make settings SETUP PLAYBACK STATUS STANDARD EXTENDED AUDIO FORMAT STANDARD RE-ENCODE BITSTREAM LANGUAGE AUDIO SUBTITLES DISC MENU ACCESS CONTROL p.49 PARENTAL LOCK p.49 RATING NEW ACCESS CODE p.49 ADVANCED MEMORY MANAGEMENT NETWORK MODULE INFORMATION SOFTWARE UPDATE...
  • Page 54 Waste Electrical and Electronic Equipment Electrical and electronic equipment, parts and Collecting electrical and electronic equipment, (WEEE) – Environmental protection batteries marked with this symbol must not be batteries and waste prevents the potential disposed of with normal household wastage; all contamination of nature with the hazardous electrical and electronic equipment, parts and substances which may be present in electrical and...
  • Page 55 All Bang & Olufsen products comply with applicable environmental legislation throughout the world. CLASS 1 LASER PRODUCT The label on the compact disc player serves as a warning that the apparatus contains a laser system and is classified as a class 1 laser product. In case any difficulties arise with the compact disc player, please contact a Bang &...
