Page 1: User Manual
Kramer Electronics, Ltd. Preliminary USER MANUAL Model: TP-305A UXGA – Audio – RS-232 Line Receiver/DA... -
Page 2: Table Of Contents
Figure 1: TP-305A UXGA - Audio - RS-232 Line Receiver/DA Figure 2: TP-305A Underside Figure 3: Connecting the TP-305A UXGA - Audio - RS-232 Line Receiver/DA Figure 4: Distributing the Signal to 17 Receivers Figure 5: CAT 5 PINOUT ... -
Page 3: Introduction
1,000-plus different models now appear in 11 groups that are clearly defined by function. Thank you for purchasing the Kramer TP-305A UXGA - Audio - RS-232 Line Receiver/DA, which is ideal for: • Presentation and multimedia applications • Long range graphics distribution for schools, hospitals, security, and... -
Page 4: Quick Start
Connect the TP-123 transmitter to the TP-305A via CAT 5 Connect the TP-123 transmitter to the TP-305A via CAT 5 Connect the TP-305A to up to five TP-124 receivers via CAT 5 Connect the TP-305A to up to five TP-124 receivers via CAT 5... -
Page 5: Overview
UXGA output, an analog audio output, a digital audio output and an RS-232 output. The TP-305A serves as a power center that can distribute power to both the transmitter and the connected receivers (see section 3.1). In particular, the TP-305A features: •... -
Page 6: About The Power Connect Feature
We recommend that you use Shielded Twisted Pair (STP) cable. There are different levels of STP cable available, and we advise you to use the best quality STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP is intended for analog signals where skewing is not an issue. For cases where there is skewing, our UTP skew-free cable, Kramer BC-XTP, may be used. -
Page 7: Your Tp-305A Uxga - Audio - Rs-232 Line Receiver/Da

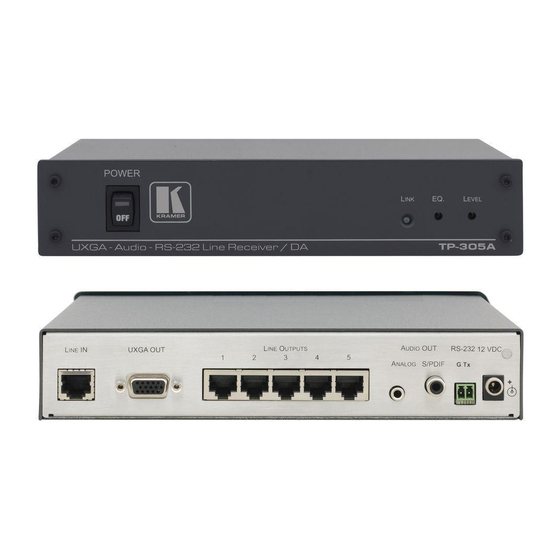

Your TP-305A UXGA - Audio - RS-232 Line Receiver/DA Your TP-305A UXGA - Audio - RS-232 Line Receiver/DA Figure 1 Table 1 define the TP-305A: UXGA Audio 232 Line Receiver/DA Figure 1: TP-305A UXGA Audio 232 Line Receiver/DA Table 1: TP-305A... -
Page 8: The Tp-305A Uxga - Audio - Rs-232 Line Receiver/Da Underside
3 Using up to 300ft (100m) of UTP cabling 4 Switch OFF the power on each device before connecting it to your TP-305A. After connecting your TP-305A, switch on its power and then switch on the power on each device... - Page 9 1 Not supplied. The full list of Kramer cables is on our Web site at http://www.kramerelectronics.com. Alternatively, you can connect an XGA source to the XGA IN 15-pin HD connector, and a separate audio source to the AUDIO IN 3.5mm mini jack...
-
Page 10: Connecting Several Tp-305A Units
To connect an expanded UXGA – Audio Line Receiver/DA system, do the following: 1. Connect a transmitter to the LINE IN RJ-45 connector of the first TP-305A. 2. Connect the LINE OUTPUT 1 RJ-45 connector of the first TP-305A to the LINE IN RJ-45 connector of the second TP-305A. -
Page 11: Figure 4: Distributing The Signal To 17 Receivers
Connecting the TP-305A UXGA-Audio-RS-232 Line Receiver/DA 3. Connect the LINE OUTPUT 2 RJ-45 connector of the first TP-305A to the LINE IN RJ-45 connector of the third TP-305A. 4. Connect the LINE OUTPUT 3 RJ-45 connector of the first TP-305A to the LINE IN RJ-45 connector of the fourth TP-305A. -
Page 12: Wiring The Cat 5 Line In / Line Out Rj-45 Connectors
Connecting the TP-305A UXGA-Audio-RS-232 Line Receiver/DA Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors Table 3 Figure 5 define the UTP CAT 5 PINOUT, using a straight pin to pin cable with RJ-45 connectors: Figure 5: CAT 5 PINOUT... -
Page 13: Technical Specifications
Technical Specifications Technical Specifications Table 5 includes the technical specifications of the TP-305A: Table 5: Technical Specifications of the TP-305A INPUT: 1 LINE IN on an RJ-45 connector OUTPUTS: 5 LINE OUT on RJ-45 connectors 1 UXGA video output on a 15-pin HD connector 1 audio output on a 3.5mm mini jack connector... - Page 14 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 15 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
