Monoprice VGA User Manual

ND

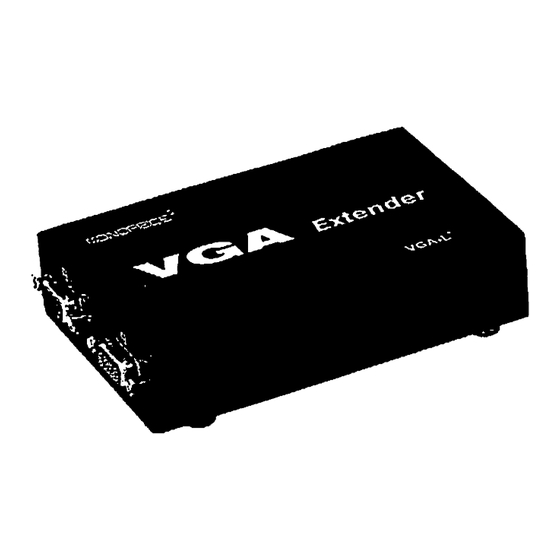

(Local)
(Remote)

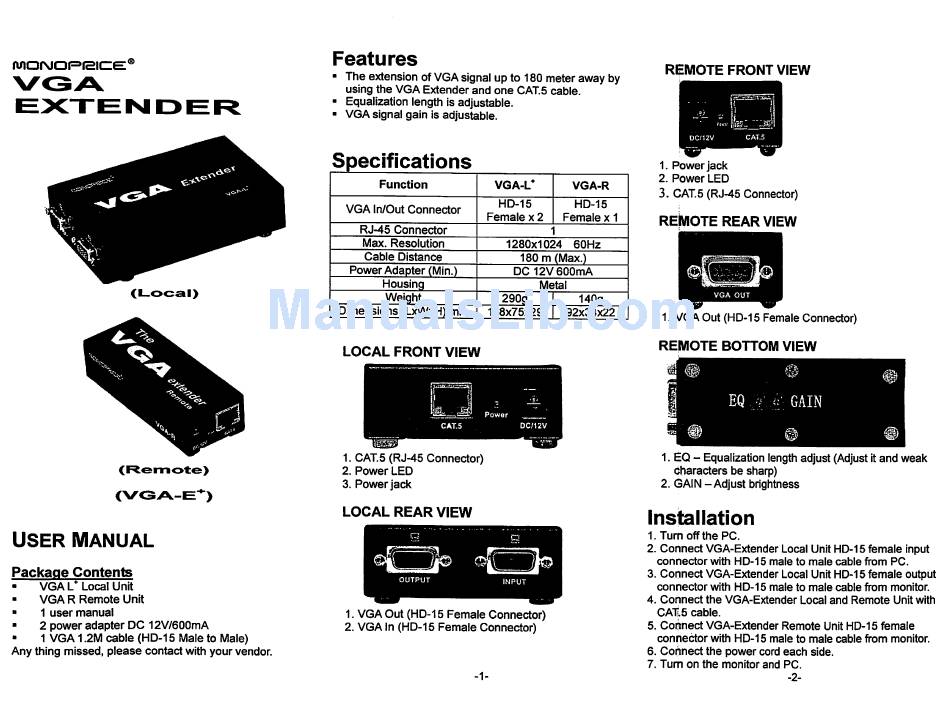

USER MANUAL
Package Contents
■ VGA L+Local Unit
VGA R Remote Unit
■ 1 user manual
■ 2 power adapter DC 12V/600mA
1 VGA 1.2M cable (HD-15 Male to Male)
Any thing missed, please contact with your vendor.
Features
■ The extension of VGA signal up to 180 meter away by
using the VGA Extender and one CAT.5 cable.
- Equalization length is adjustable.
■ VGA signal gain is adjustable.
LOCAL FRONT VIEW
1. CAT.5 (RJ-45 Connector)
2. Power LED
3. Power jack
LOCAL REAR VIEW
1. VGA Out (HD-15 Female Connector)
2. VGA In (HD-15 Female Connector)
-1-
REMOTE FRONT VIEW
1. Power jack
2. Power LED
3. CAT.5 (RJ-45 Connector)
REMOTE REAR VIEW
1. VGA Out (HD-15 Female Connector)
REMOTE BOTTOM VIEW
1. EQ - Equalization length adjust (Adjust it and weak
characters be sharp)
2. GAIN -Adjust brightness
Installation
1. Turn off the PC.
2. Connect VGA-Extender Local Unit HD-15 female input
connector with HD-15 male to male cable from PC.
3. Connect VGA-Extender Local Unit HD-15 female output
connector with HD-15 male to male cable from monitor.
4. Connect the VGA-Extender Local and Remote Unit with
CAltS cable.
5. Connect VGA-Extender Remote Unit HD-15 female
connector with HD-15 male to male cable from monitor.
6. Connect the power cord each side.
7. Turn on the monitor and PC.
-2-
