Page 1: Kvm Switch
KVM SWITCH QUICK START GUIDE MODELS 157025 & 157032 INT-157025/157032-QSG-1106-01... -
Page 2: Installation

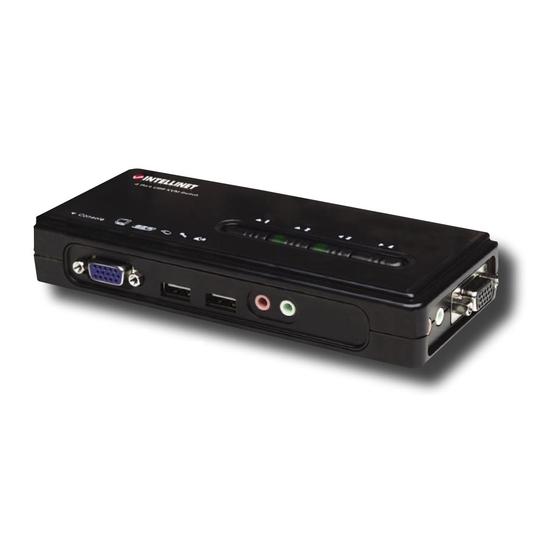

Thank you for purchasing this INTELLINET NETWORK SOLUTIONS KVM Switch with Audio and Mic switching functionality allows you to access, control, boot and reboot two (Model 157025) or four (Model 157032) USB-enabled multimedia computers with only one USB keyboard, mouse, monitor and optional speaker set and microphone, using the Switching Software Client installed on your PCs. - Page 3 NOTE: The KVM Switcher software supports only the Windows operating system on PC platforms. For other OS platforms, such as Linux, you can still use the keyboard hotkey — ScrLk + ScrLk — to switch PCs. However, this switching hotkey is not available on non-PC platforms such as MacOS. When connected to a Mac, use the face-panel button to switch ports.
-
Page 4: Operation
NOTE: If using Windows 95/98/SE without a USB mouse, an error message may appear saying that a mouse is not detected and giving you the option of ignoring the same message in the future. Since you likely would have no mouse movement to disable this message, it’s recommended that a USB mouse be installed on your computer before connecting it to this KVM Switch. - Page 5 NOTE: The universal hotkey is not available for Mac. And neither the universal hotkey nor user- definable hotkeys allow you to switch to an empty port that is not connected with any computer. To switch to an empty port, just press the corresponding face-panel button. Each keystroke within a hotkey sequence should be pressed within 2 seconds.
- Page 6 Start Auto-Scan: Right-click the KVM Switcher icon to display the operation menu; select "Start Auto-Scan." Stop Auto-Scan: (While auto-scanning) right-click the KVM Switcher icon to display the operation menu; select "Stop Auto-Scan." Or press any button on the face-panel. KVM Switcher Configuration: Right-click the KVM Switcher icon;...
-
Page 7: Specifications
SPECIFICATIONS General • PC connections: Model 157025, 2; Model 157032: 4 • Console connections: 1 • PC port connectors, Model 157025: - 2 x USB Type A (keyboard, mouse) - 2 x HD15 male (video) - 2 x USB mini 5-pin B (audio, for use with included USB mini to 3.5 mm audio cable) •... - Page 8 Are you completely satisfied with this product? Please contact your INTELLINET NETWORK SOLUTIONS dealer ™ with comments or questions. Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
