Page 1: User Manual

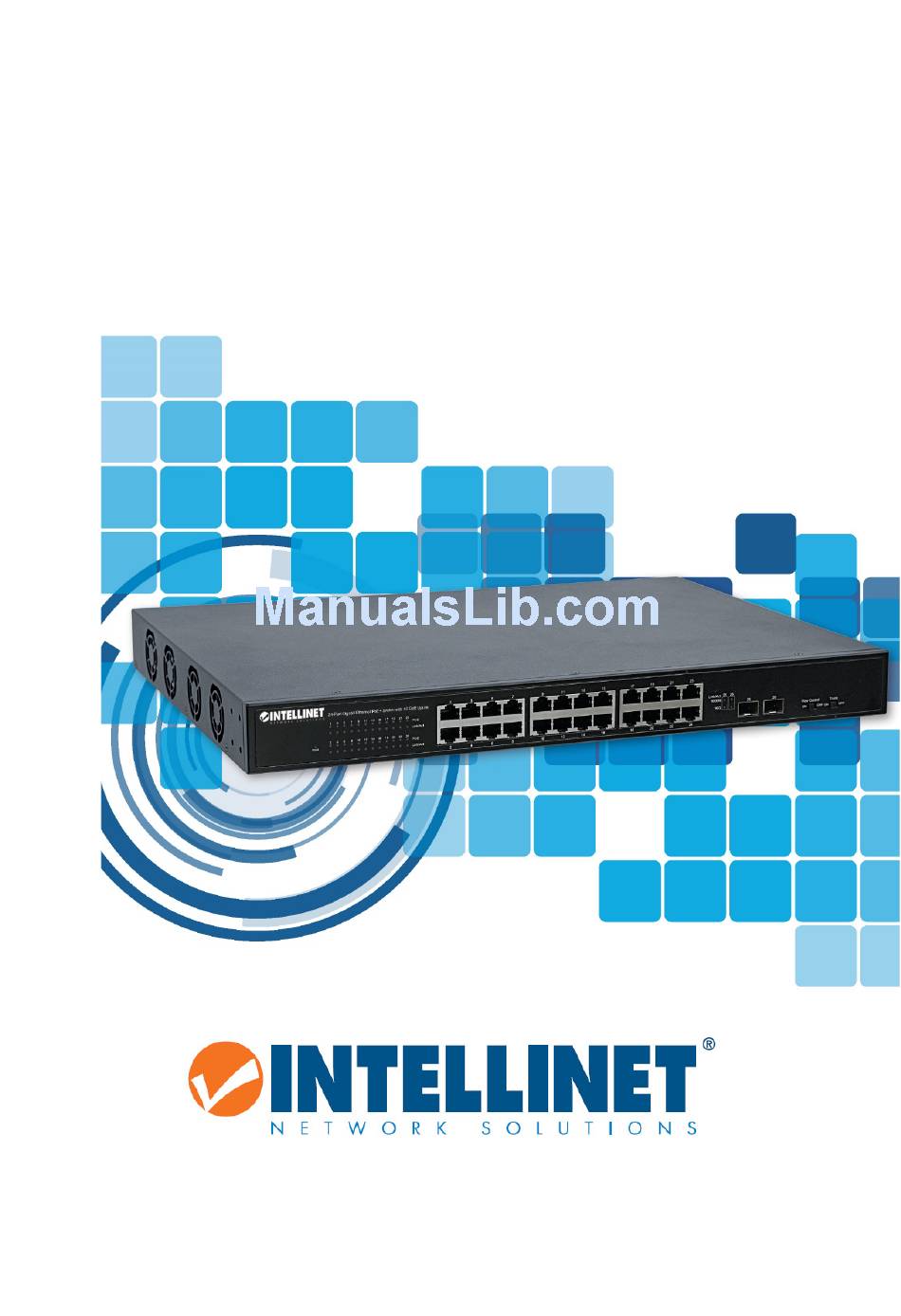

24-Port Gigabit Ethernet PoE+ Switch with 10 GbE Uplink User Manual Model 561143 intellinet-network.com... -
Page 2: Table Of Contents
Contents Chapter 1 Product Introduction ..............3 1.1 Product Overview .................... 3 1.2 Features ......................3 1.3 Package Contents ..................4 Chapter 2 External Component Description ..........5 2.1 Front Panel ..................... 5 2.2 Rear Panel ...................... 7 Chapter 3 Installing and Connecting to the Switch ........8 3.1 Installation ....................... -
Page 3: Chapter 1 Product Introduction
Chapter 1 Product Introduction Thank you for purchasing the Intellinet 24-Port Gigabit Ethernet PoE Switch with 10 GbE Uplink. Before you install and use this product, please read this manual carefully to fully understand the functions of this product . -
Page 4: Package Contents
1.3 Package Contents • 24-Port Gigabit Ethernet PoE+ Switch with 2 x 10 GbE SFP+ Uplinks • Power cable • User manual • 19" rackmount brackets 24-Port 10/100/1000Mbps + 2-Port 1000/10000Mbps SFP+ Ethernet Switch |... -
Page 5: Chapter 2 External Component Description
Chapter 2 External Component Description 2.1 Front Panel The front panel of the switch consists of a series of LED indicators, 24 x 10/100/1000Mbps RJ-45 ports, 2 x 1000/10000Mbps SFP+ ports, one Flow Control switch and one Trunking switch, as shown below: Figure 1 - Front Panel 10/100/1000Mbps RJ-45 ports (1-24): Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or... - Page 6 COLOR STATUS STATUS DESCRIPTION Power On Green Power Off Orange A device is connected to the port. (10/100Mbps) 1-24 A device is disconnected from the port. （Link/Act） Green (1000Mbps) Flashing Sending or receiving data There is a PoE PD connected to the port, which is successfully being supplied power.
-
Page 7: Rear Panel
2.2 Rear Panel The rear panel of the switch contains an AC power connector, as shown below. Figure 3 - Rear Panel AC Power Connector: Power is supplied through an external AC power adapter. It supports AC 100~240V, 50/60Hz. Grounding Terminal: Located on the left side of the power supply connector;... -
Page 8: Chapter 3 Installing And Connecting To The Switch
Chapter 3 Installing and Connecting to the Switch This chapter describes how to install your Ethernet switch and make connections to it. Read the following sections and perform the procedures in the order presented to avoid incorrect installation, which will cause damage to the device and will threaten its security. -
Page 9: Rack-Mountable Installation In A 19-Inch Cabinet
Follow the next tips to turn on the switch: AC Electrical Outlet: Intellinet recommends using a single-phase three-wire receptacle with a neutral outlet or a multifunctional computer-professional receptacle. Make sure to connect the metal ground connector to the grounding source on the outlet. -
Page 10: Connect Computer To The Switch
AC Power Cord Connection: Connect the AC power connector on the back panel of the switch to an external receptacle with the included power cord, and check that the power indicator turns on. When it is ON, the device is receiving power. 3.2 Connect Computer to the Switch Connect one end of an Ethernet cable to an RJ45 jack on your computer;... -
Page 11: Appendix
Appendix: Technical Specifications Standards IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az, IEEE802.3ae Number of Ports 24 x 10/100/1000Mbps Auto-Negotiation ports 2 x 1000/10000Mbps SFP+ ports Network Media (Cable) 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ù... -
Page 12: Warranty
Polski Informacje dotyczące gwarancji znajdują się na stronie intellinetnetwork.com/warranty. México Póliza de Garantía Intellinet — Datos del importador y responsable ante el consumidor IC Intracom México, S.A.P.I. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlan Izcalli, Estado de México, C.P. 54730, México. •... -
Page 13: Notes
Notes Copyright 24-Port 10/100/1000Mbps + 2-Port 1000/10000Mbps SFP+ Ethernet Switch | 13... - Page 14 Copyright ©2015 IC Intracom. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.
-
Page 15: Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 16 © IC Intracom. All rights reserved. Intellinet is a trademark of IC Intracom, registered in the U.S. and other countries. 24-Port 10/100/1000Mbps + 2-Port 1000/10000Mbps SFP+ Ethernet Switch | 16...
