Summary of Contents for Makita LM2350

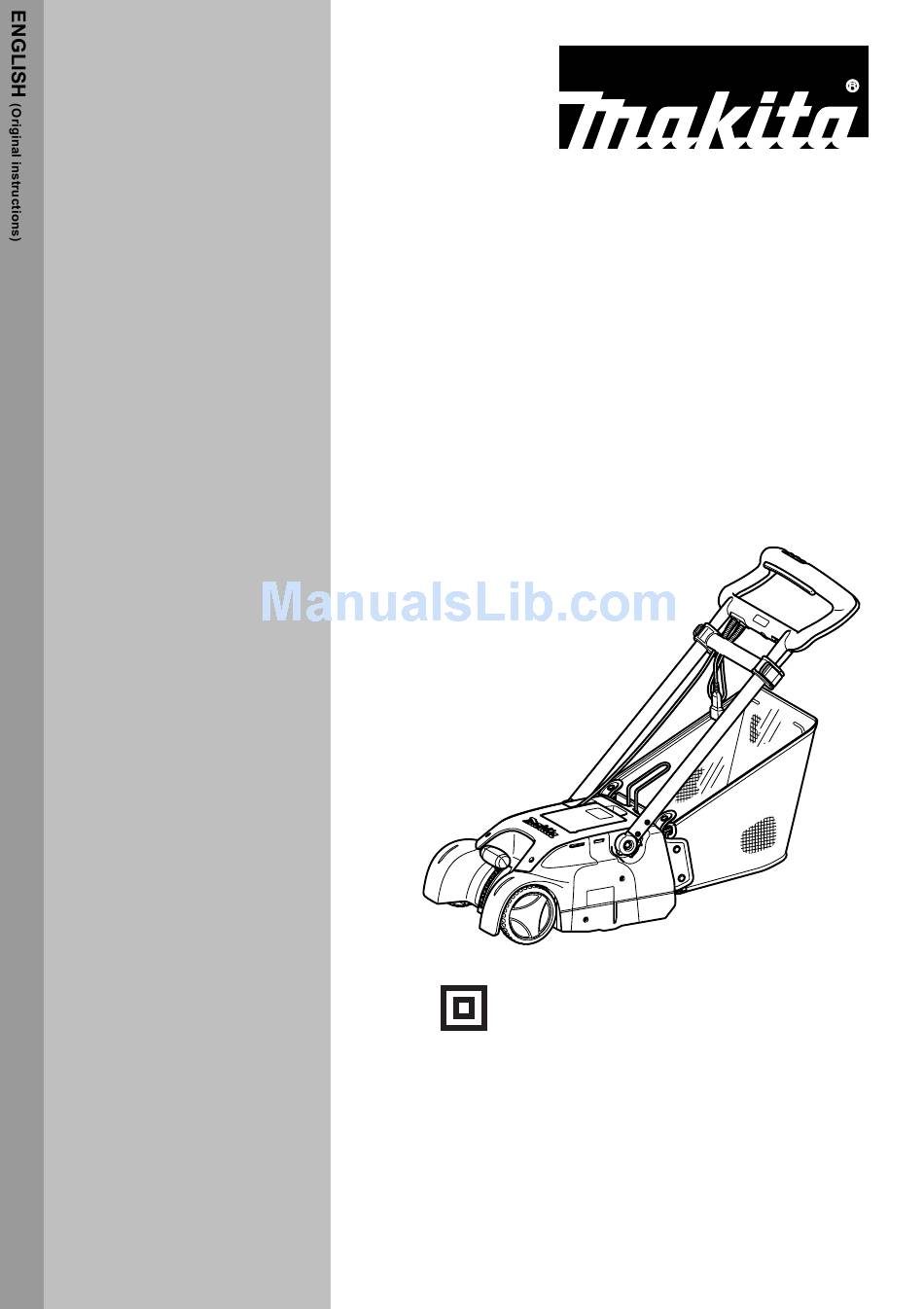

- Page 1 Electric Lawn Mower LM2350 LM2850 DOUBLE INSULATION INSTRUCTION MANUAL IMPORTANT: Read Before Using.
-
Page 2: Specifications
ENGLISH (Original instructions) SPECIFICATIONS Model LM2350 LM2850 No load speed 1,800 min Height of cut 5 mm, 10 mm, 15 mm, 20 mm, 25 mm, 30 mm Width of cut 230 mm 280 mm at work (with grass 747 mm x 304 mm x 675 - 922 mm... - Page 3 12. Use personal protective equipment. Always wear Service 25. Have your power tool serviced by a qualified eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing repair person using only identical replacement protection used for appropriate conditions will reduce parts.
- Page 4 OPERATING INSTRUCION 11. Be sure to hold the electric lawn mower firmly when in use. • Failure to hold the device firmly will cause it to Raising handle vibrate, which may cause injury. 1. Handle 12. Do not plug in/unplug power cord with wet hands. •...
- Page 5 NOTE: lawn height to be slightly different to the set height figure. • Be sure to attach the grass basket in the correct position. Failure to do so may cause loss of grass Adjusting blade gap basket functionality. WARNING: Always turn OFF power switch and unplug the Electrical Lawn Mower before commencing adjustment of blade gap.
- Page 6 causing the blockage, press the Recovery Button, and 1. Switch lever then restart mowing. 2. Handle • Be sure to press the Recovery Button at least ten 3. Lock off lever seconds after the device has stopped. NOTE: • The over current relay may be activated when wet or long grass gets caught up inside of the main unit.
-
Page 7: Operation
1. A section 2. Holder • Using the waist hook for power cord helps prevent • Firmly hold the electric lawn mower handle with both careless severing of the extension cord due to the cord hands when mowing. being loose. •... -
Page 8: Maintenance
• Periodically check the level of the grass basket, and 1. Handle empty before it becomes full. 2. Grass basket 3. Hook NOTE: 4. Handle stoppers • Using the electric lawn mower with the grass basket full prevents smooth blade rotation and places an extra load on the motor, which may cause breakdown. - Page 9 Replacing the fixed blade • Remove the screws that secure the fixed blade, and then replace the old blade with a new one. • LM2350 uses four screws and LM2850 uses five screws. 1. Screws 2. Fixed blade Mounting a cylinder blade 1.
- Page 10 Lapping (grinding) blade cylinder blades and fixed blade come into slightly high-pressure contact. • When the cylinder blade loses sharpness, perform 1. Cylinder blade lapping (grinding) in the following way. Note that 2. Fixed blade lapping is a simple form of sharpening, so it will not 3.
-
Page 11: Optional Accessories
OPTIONAL ACCESSORIES CAUTION: • These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. - Page 12 Makita Corporation www.makita.com 885018-0...
