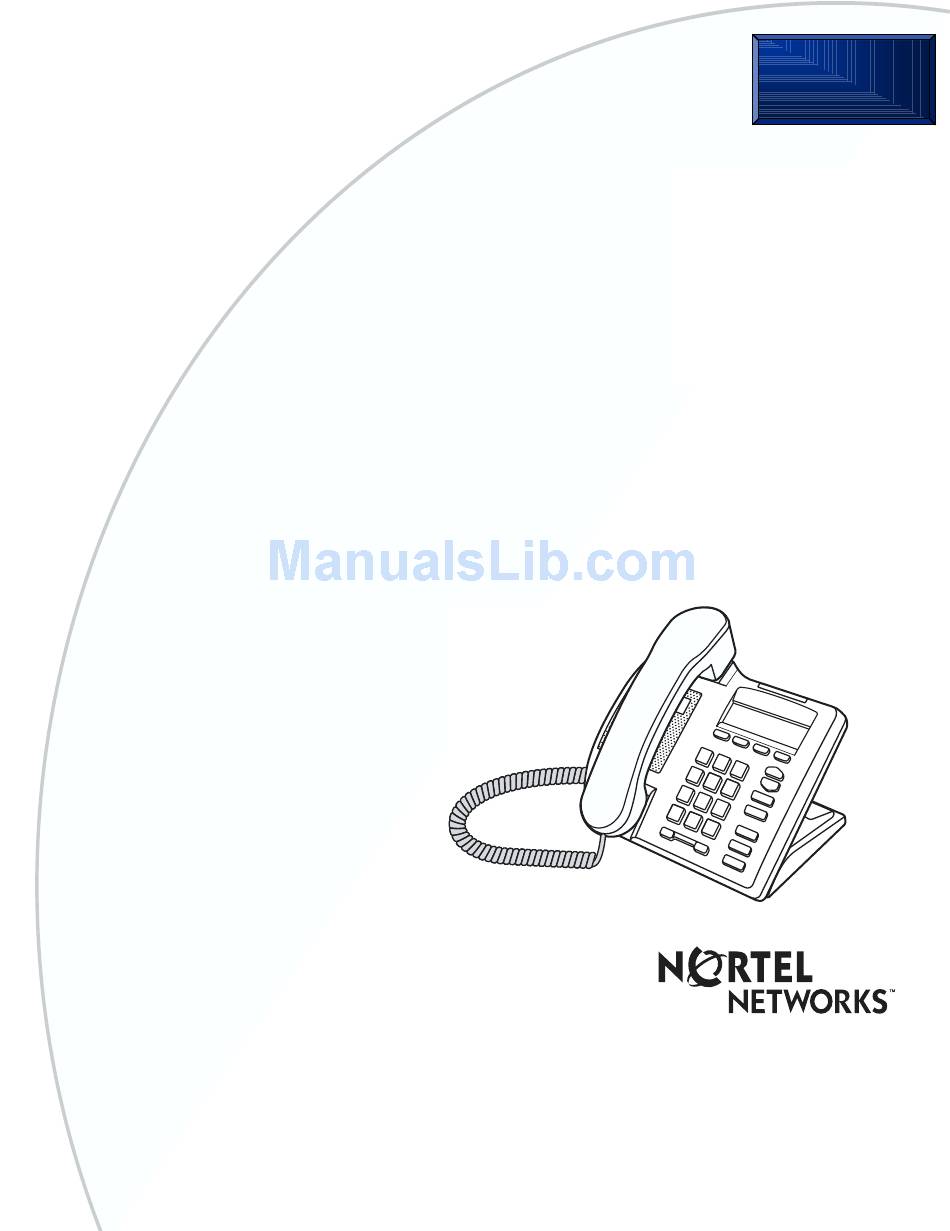

Business Communications Manager
Nortel Networks IP Phone 2001

User Guide

Return
to Menu
Part No. P0609359 03
March 24, 2004

Advertisement

Table of Contents
loading

Related Manuals for Nortel 2001

Summary of Contents for Nortel 2001

  • Page 1: User Guide

    Return to Menu Part No. P0609359 03 March 24, 2004 Business Communications Manager Nortel Networks IP Phone 2001 User Guide...

  • Page 3: Getting Started

    Getting Started The Nortel Networks IP Phone 2001 brings voice and data to your desktop. Introduction This guide contains information about: • telephone buttons and lights • telephone display • telephone setup • how to make and answer calls •...

  • Page 4: Ip Phone 2001 Default Buttons And Descriptions

    Getting Started IP Phone 2001 default buttons and descriptions Telephone light Flashes when a call rings at the telephone. Lights up when Message for you appears on the display. Feature button Starts or ends a feature. Display buttons Shows feature options.

  • Page 5: Telephone Display

    Button labels appear in capital letters directly above the display buttons. Button labels vary depending on the type of call or feature in use. Display area examples idle Active - internal call DN: 2245 DN: 2245 2257 Feb 24 1:23 pm Feature Feature TRANSFER IP Phone 2001 User Guide...

  • Page 6: Telephone Setup

    Getting Started Telephone setup Basic telephone setup features are: • Display contrast • Language choice • Ring type Display contrast level Adjust the contrast for the telephone display. Press Feature • ‡ Press DOWN and UP to view the levels. Press OK to select a level.

  • Page 7: Features And Buttons

    Features and buttons This section describes some of the IP Phone 2001 buttons and call features: • Basic call features • Navigation buttons • Programmable memory buttons Basic call features There are many ways to make a call depending on your telephone programming and the type of call.

  • Page 8: Time Offset

    Time offset When your IP Phone 2001 is located in a different time zone from your system, the display shows the system time not the local time. The Time Offset feature allows you to adjust the time that appears on the display.

  • Page 9: Navigation Buttons

    To return a call from your Call Log: Display the desired number on your telephone. Edit the number, if required. You can add numbers for long distance dialing or line pool access or remove numbers using TRIM and BKSP. Lift the handset. IP Phone 2001 User Guide...

  • Page 10: Programmable Memory Buttons

    Features and buttons Programmable memory buttons There are three programmable memory buttons on your telephone. You can change the default programming on these memory buttons with internal and external numbers or features to give you one touch dialing or feature activation. Services button Message button Line button...

  • Page 11: Erase Memory Buttons

    Press • Feature ⁄. Press a memory button. Press OK to erase the button. Note: For information on telephone features and how to use them, refer to the Business Communications Manager Telephone Feature User Guide. IP Phone 2001 User Guide...
  • Page 12 Features and buttons P0609359 03...
