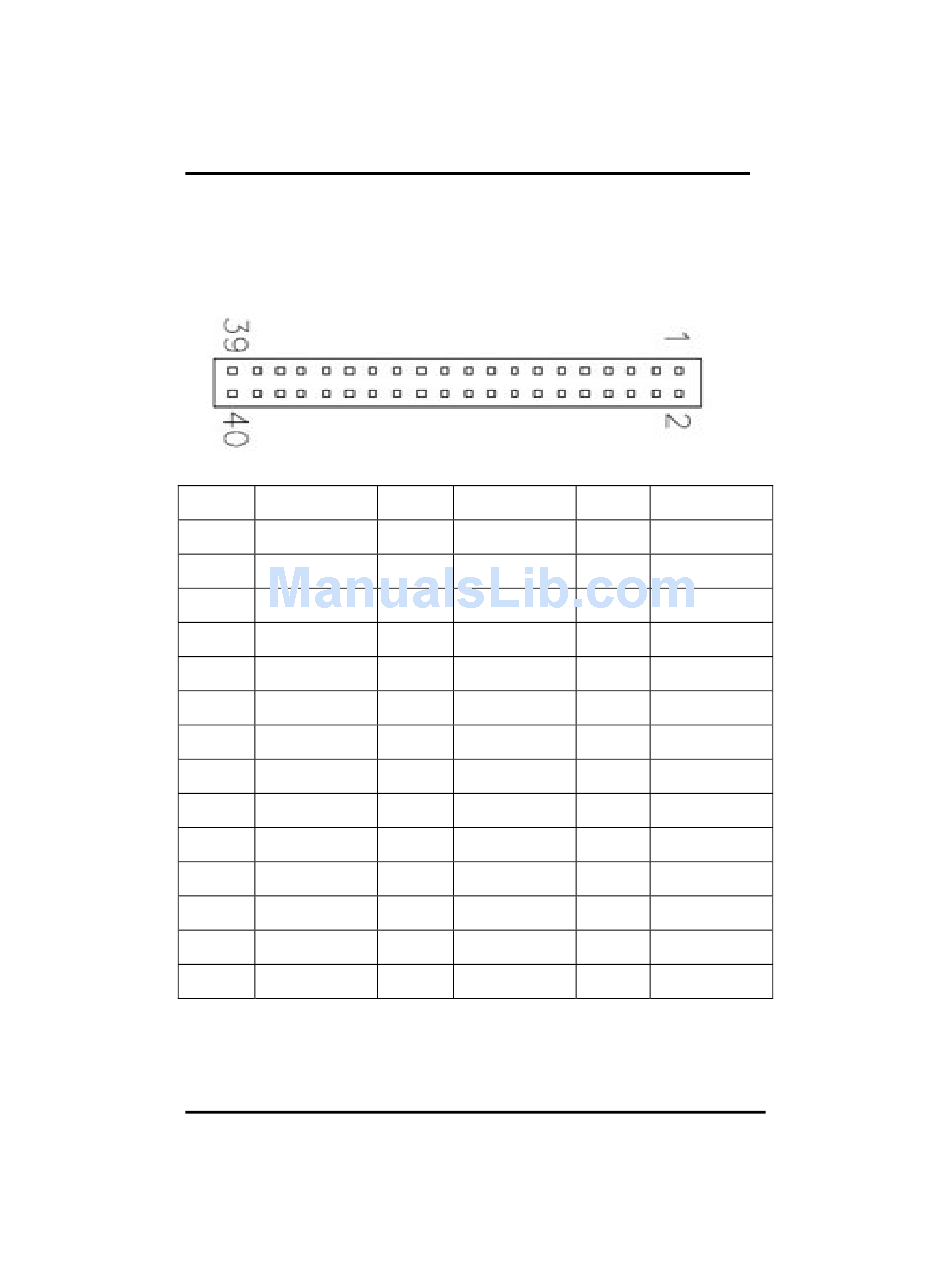

4.2 Enhance IDE1/IDE2 connecotor-IDE1
and IDE2
The IMB200 provided two IDE Port and support the maximum
IDE devices could up to four
Pin Description
1 Reset #
4 Data 8
7 Data 5
10 Data 11
13 Data 2
16 Data 14
19 GND
22 GND
25 IOR #
28 N/C
31 Interrupt
34 N/C
37
HDC CS0 #
40 GND
.
Hardware Description
IMB200 LGA775 ATX MB User Manual
IDE devices.
Pin Description
2 GND
5 Data 6
8 Data 10
11 Data 3
14 Data 13
17 Data 0
20 N/C
23 IOW #
26 GND
29 N/C
32 N/C
35 SA0
38
HDC CSI #
Pin Description
3 Data 7
6 Data 9
9 Data 4
12 Data 12
15 Data 1
18 Data 16
21 N/C
24 GND
27 IOCHRDY
30
GND-Default
33 SA1
36 SA2
39
HDD Active #
