ABOUT INSTEON SWITCHLINC DIMMER

Congratulations on purchasing the INSTEON™ SwitchLinc™ Dimmer. With its elegant look, smooth
touch, and stylish LED Bar, you can not only control the lights that you wire it to, but you can add remote
control to all kinds of other INSTEON and X10 devices in your home to match your lifestyle. Besides
controlling other devices, SwitchLinc Dimmer can itself be remotely operated from other INSTEON or X10
Controllers, including other SwitchLinc Dimmers.

What is INSTEON?

INSTEON is a simple, reliable, and affordable breakthrough in home control. Simple, because Plug-n-
Tap™ setup is a breeze, and there are no wires to add – INSTEON uses existing powerline wiring as well
as radio-frequency for communication. Reliable, because every INSTEON device is a two-way repeater.
And affordable, not just because of low cost, but because INSTEON also works with legacy X10 devices.
An INSTEON home grows in value with every INSTEON device you add, making life more convenient,
safe and fun.

Key SwitchLinc Dimmer Features

•
After installation, setup is easy – links to controlled devices and other controllers in minutes
•
Controls all standard incandescent lamps, up to 600 watts
•
Paddle has true rocker action – top is ON or BRIGHT, bottom is OFF or DIM
•
9-level LED Bar shows brightness of lights
•
Dims lights to 32 brightness levels
•
Changes brightness at 32 ramp rates
•
Paddle and Trim Frame colors are changeable to almond, black, brown, or gray with optional kit
(comes in white with ivory kit included)
•
White LED Bar color is changeable to green, blue, amber, or red with optional kit
•
Responds to commands from X10 controllers and sends X10 commands to X10 devices
•
Wires in like a standard wall switch (but also requires a NEUTRAL connection)
•
Supports "virtual" 3-, 4-, or more-way circuits with multiple SwitchLinc Dimmers
•
Warranted for two years

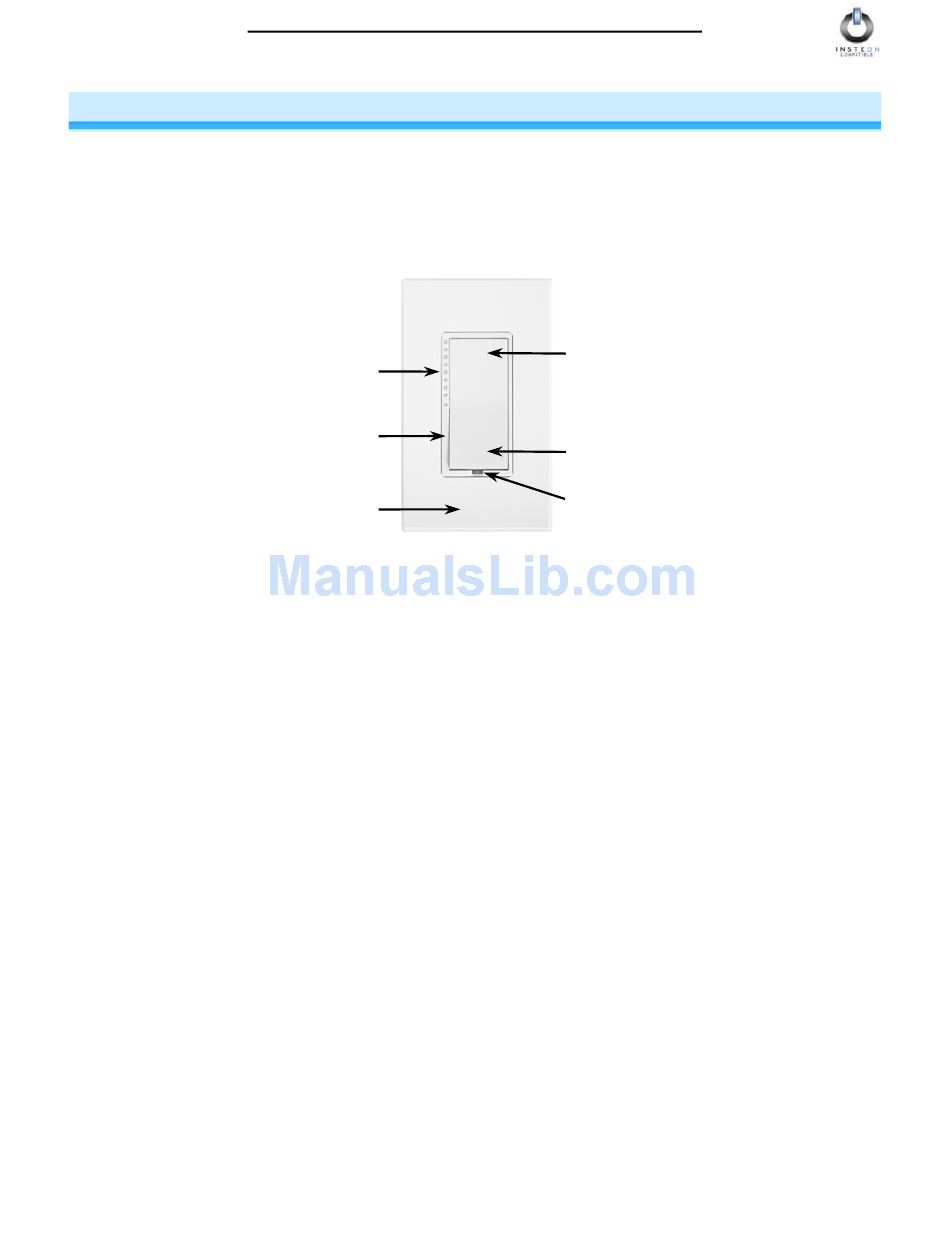

LED Bar
Brightness
Indicator
Trim Frame
Faceplate
Page 4 of 35
Paddle Top
ON/BRIGHT
Paddle Bottom
OFF/DIM
SET Button (push)
Air Gap (pull)
