INSTEON SwitchLinc V2 Dimmer User's Guide
5. Orient the new small light pipe with its protrusion facing toward
the center of the frame and snap it into place.
backwards or reversed, it will not click into place. Refer to the
diagram.
6. Orient the new large light pipe with the side that has the most
protrusions facing toward the center of the frame. Using only
finger pressure, snap the light pipe into the frame.

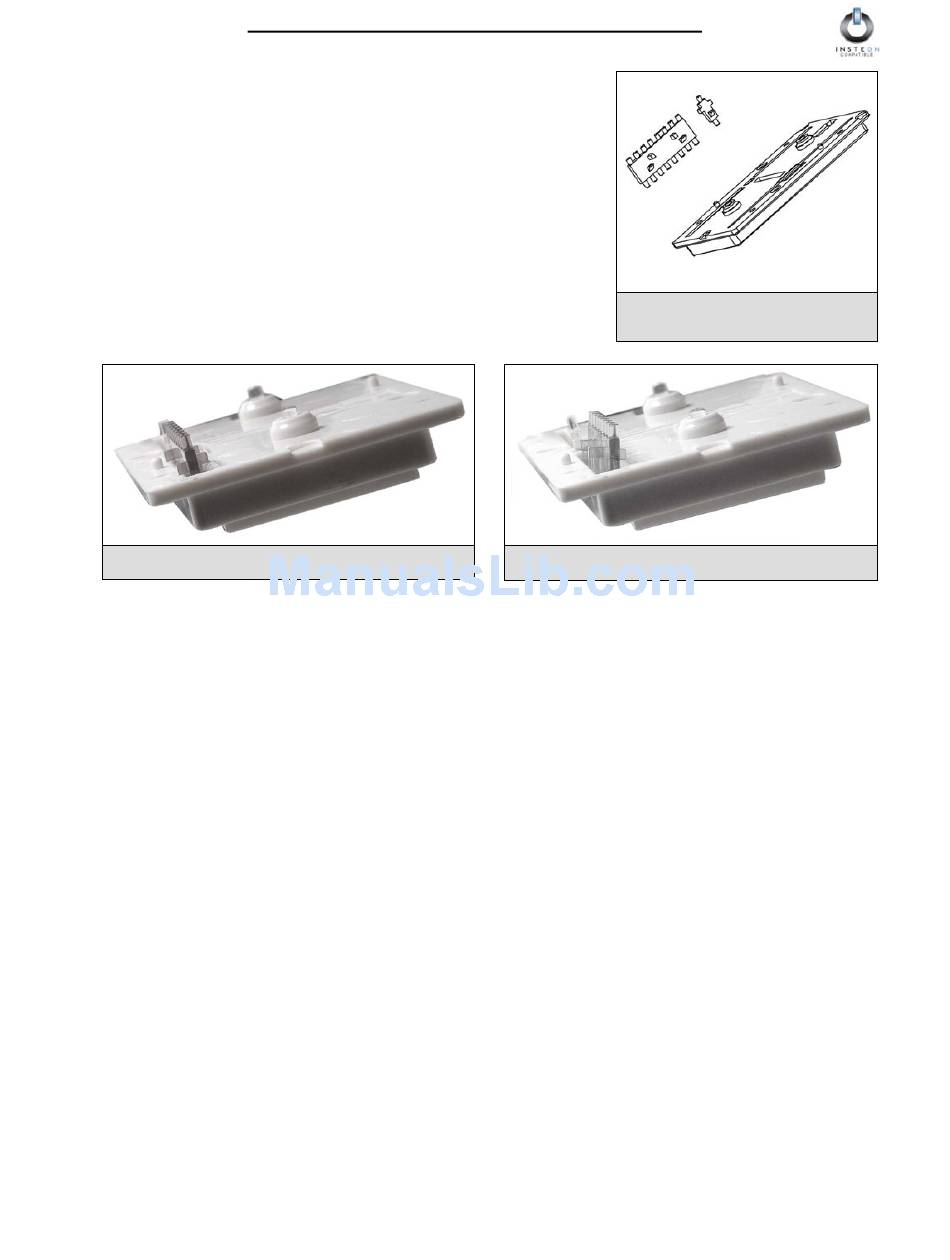

Installed correctly
7. If both light pipes are installed correctly, they will stick straight out from the back of the frame. If
installed incorrectly, they will appear to be tilted as shown in the photos.
8. Gently place the paddle assembly back onto the front of SwitchLinc Dimmer. A little force may be
necessary to snap the assembly over the SET Button. Reinstall the four screws that you removed in
Step 2.
If placed in
Page 28 of 35
Insert the new light pipes with the
protrusions facing the center
Installed incorrectly
