Anchor AN-130 Owner's Manual

HAVING TROUBLE W/ YOUR SOUND SYSTEM?
CONDITION POSSIBLE CAUSE
No Sound (Power LED Not Lit) • turn POWER switch on
• plug in power cord
No Sound (Power LED Lights) • check for output from source
• make sure all cables are completely plugged in
• increase volume control
• press mute button on remote (AN-130RC only)
• turn power switch to off then back to on (AN-130RC only)
Distorted Sound • check input cable connection
• lower input signal level
Excessive Hum or Noise • use shielded input cables
HAVING TROUBLE W/ YOUR WIRELESS SYSTEM? (Wireless Model Only)
No Sound • confirm transmitter power switch is set to on
• turn up volume control
• plug microphone into body-pack transmitter
• turn sound system on
• replace mic/transmitter battery
• make sure hands free mic cable is fully plugged into transmitter
• turn off mute by pressing, volume up/down or mute (AN-130RC only)
Frequent Transmitter Dropouts • replace mic/transmitter battery
• move mic/transmitter closer to AN-130
• change transmitter to different channel
NEED MORE HELP? View demonstration videos on proper system setup
& operation at our website - www.anchoraudio.com.
Anchor Audio Customer Service
888-444-6077
AN-130 TECHNICAL SPECIFICATIONS
Rated Power Output 30 watts
Max SPL @ Rated Power 101 dB @ 1 meter
Frequency Response 65 Hz – 18 kHz ± 3 dB
Speaker Type 4.5" woofer, 10 mm dome tweeter
AC Power Reqs. 110 - 125 VAC, 50/60 Hz
Export Model 208 - 240 VAC, 50/60 Hz (50W max)
Fuse Rating T 1.0A / 250V
Export Model T 0.5A / 250V (internally mounted)
Dimensions (HWD) 5.25 x 8.4 x 9" / 13 x 21 x 23 cm
Weight 8.5 lbs / 3.8 Kg
Anchor Audio, Inc.
Portable Sound Systems • Torrance, California
Inputs
Line (2) Hi-Z, unbalanced, RCA (summing L+R)
Microphone Lo-Z, unbalanced, 1/4" phone
Output
Line Lo-Z, buffered, 1/4" phone
Sensitivity For Rated Output
Line -20 dBV (100 mVrms)
Microphone -43 dBV (7.5 mVrms)
(Specifications subject to change without notice)

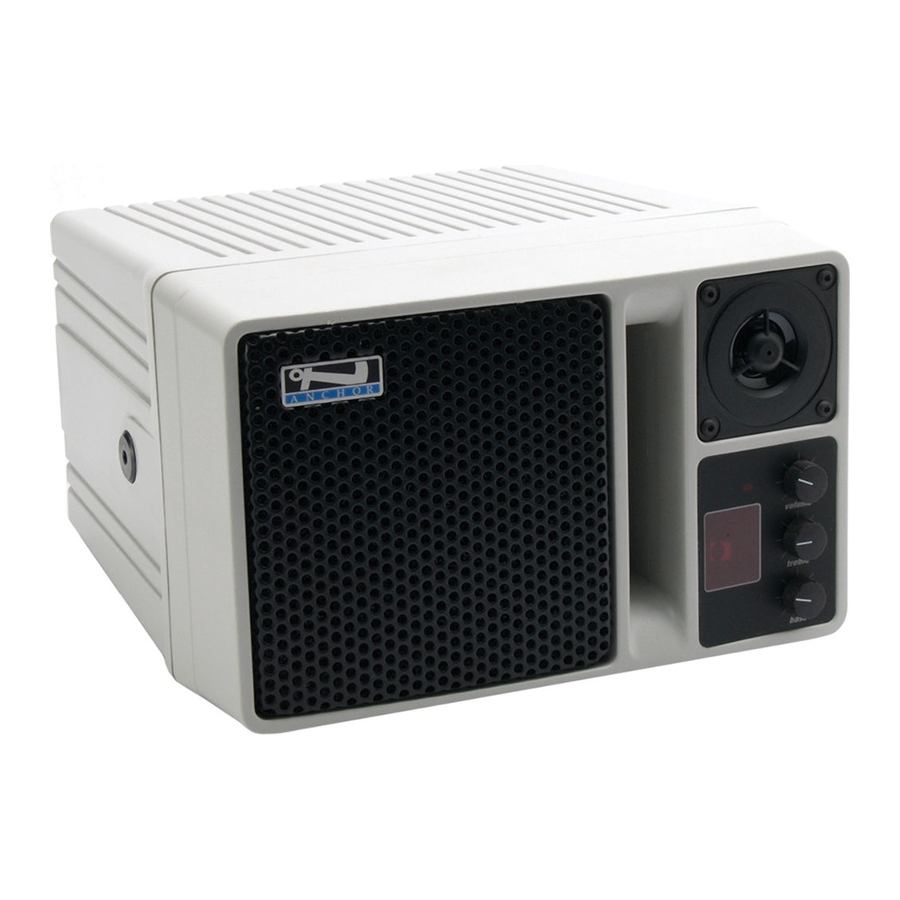

AN-130
Portable Public Address Sound System
OWNER'S MANUAL
GETTING STARTED ................................................................................................................................................. 2
FEEDBACK ............................................................................................................................................................... 3
WIRELESS REMOTE CONTROL ................................................................................................................................ 3
BASIC SYSTEM OPERATION .................................................................................................................................... 4
AN-130 ACCESSORIES .......................................................................................................................................... 4/5
OPERATING THE BUILT-IN UHF WIRELESS RECEIVER ........................................................................................... 6
OPERATING THE WIRELESS MICROPHONE / TRANSMITTER ................................................................................. 7
HAVING TROUBLE W/ YOU SOUND SYSTEM? ........................................................................................................ 8
AN-130 TECHNICAL SPECIFICATIONS .................................................................................................................... 8
100-0154-000/A- 12/06
CONTENTS
