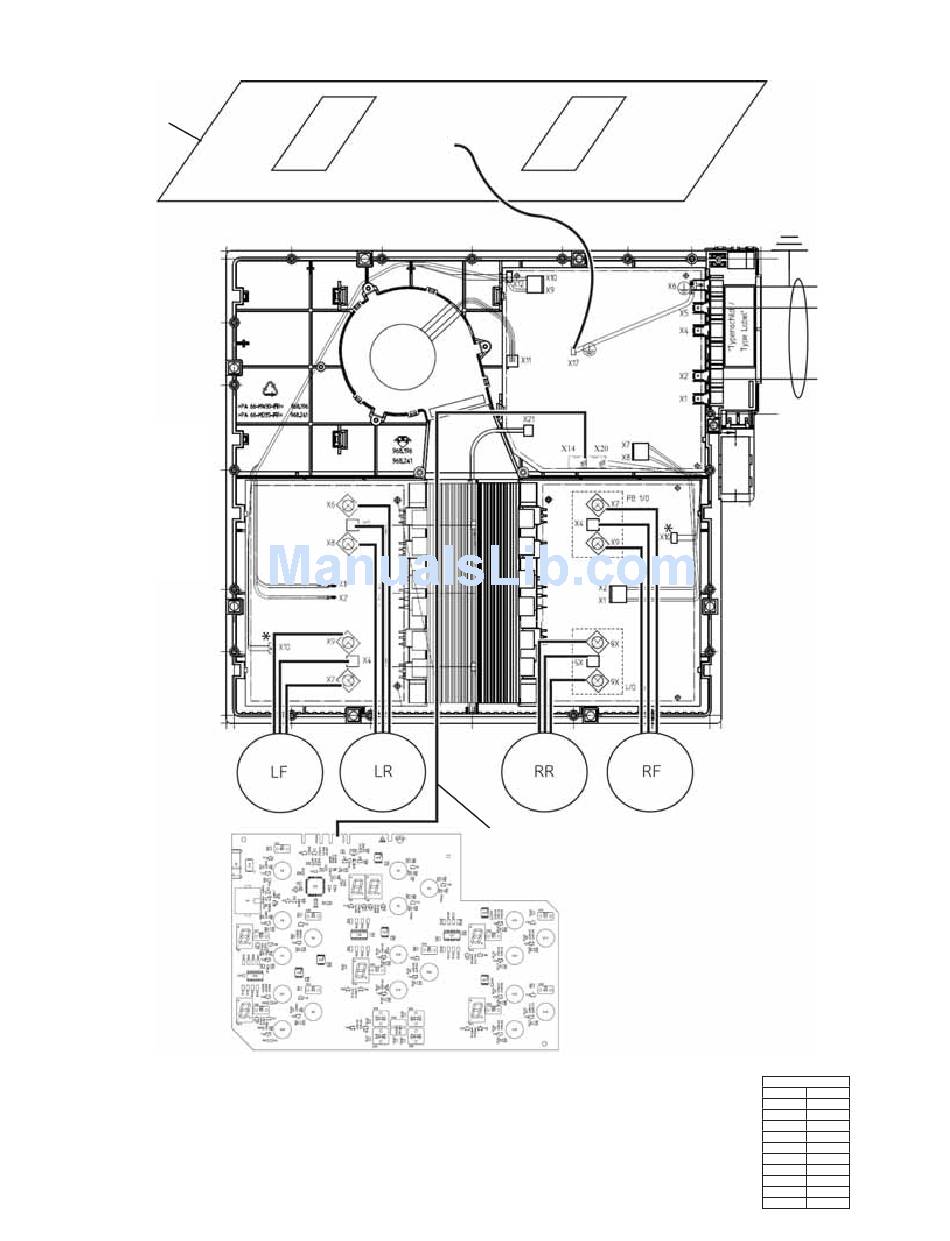

Touch Board - GE Profile PHP900 Technical Service Manual

Model ZHU30 and PHP900
Aluminum Plate
CAUTION: *A special tool
is required when removing
the connections (marked
with an *) from the circuit
boards. Damage to the
circuit boards or cables
may occur without
the special tool.
Caution: *A special tool is required
when removing the connections
(marked with an *) from the circuit
boards. (See LINbus Connectors.)
Damage to the circuit boards or wiring
harnesses may occur without utilizing
the special tool.
Ground
*

Touch Board

Cable
– 34 –
GND
L1
L2
WIRE COLORS
BARE U
BLACK B or BK
BLUE N or BU
BROWN C or BR
GRAY S or GY
GREEN G or GN
ORANGE O
RED R
VIOLET V
WHITE W
YELLOW Y
