Component Locator Views - GE Profile PHP900 Technical Service Manual
30/36-in. induction cooktop
Hide thumbs
Also See for Profile PHP900:
- Owner's manual (72 pages) ,
- Installation instructions manual (33 pages) ,
- Dimensions and installation information (2 pages)
Table of Contents
Advertisement

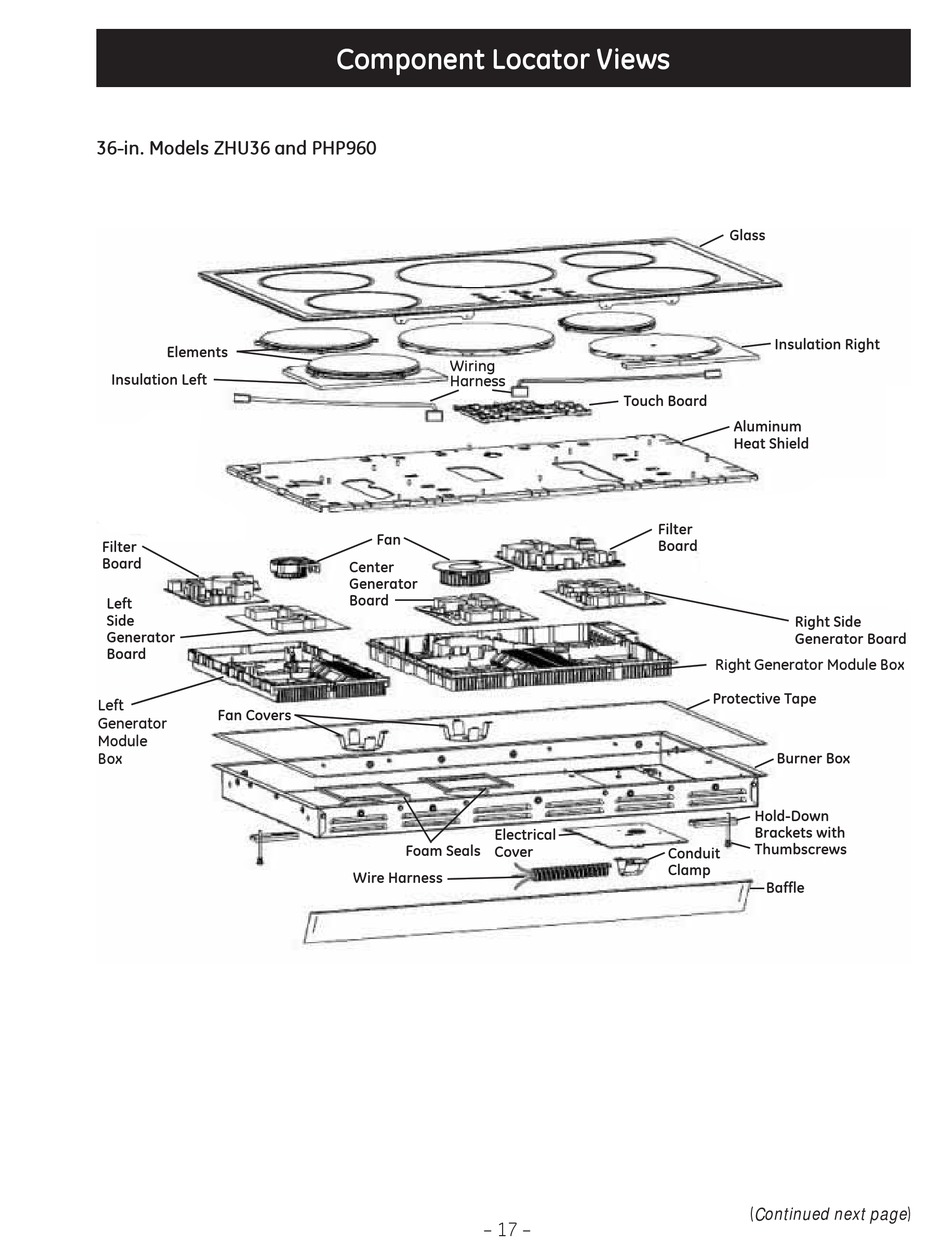

36-in. Models ZHU36 and PHP960
Elements
Insulation Left
Left
Generator
Module
Filter
Board
Left
Side
Generator
Board
Left
Fan Covers
Generator
Module
Box
Component Locator Views
Wiring
Cable
Harness
Kit
Fan
Center
Generator
Board
Electrical
Foam Seals
Cover
Wire Harness
– 17 –
Glass
Insulation Right
Touch Board
Aluminum
Heat Shield
Filter
Board
Right Side
Generator Board
Right Generator Module Box
Protective Tape
Burner Box
Hold-Down
Brackets with
Thumbscrews
Conduit
Clamp
Baffle
(Continued next page)
Right
Gene
Modu
