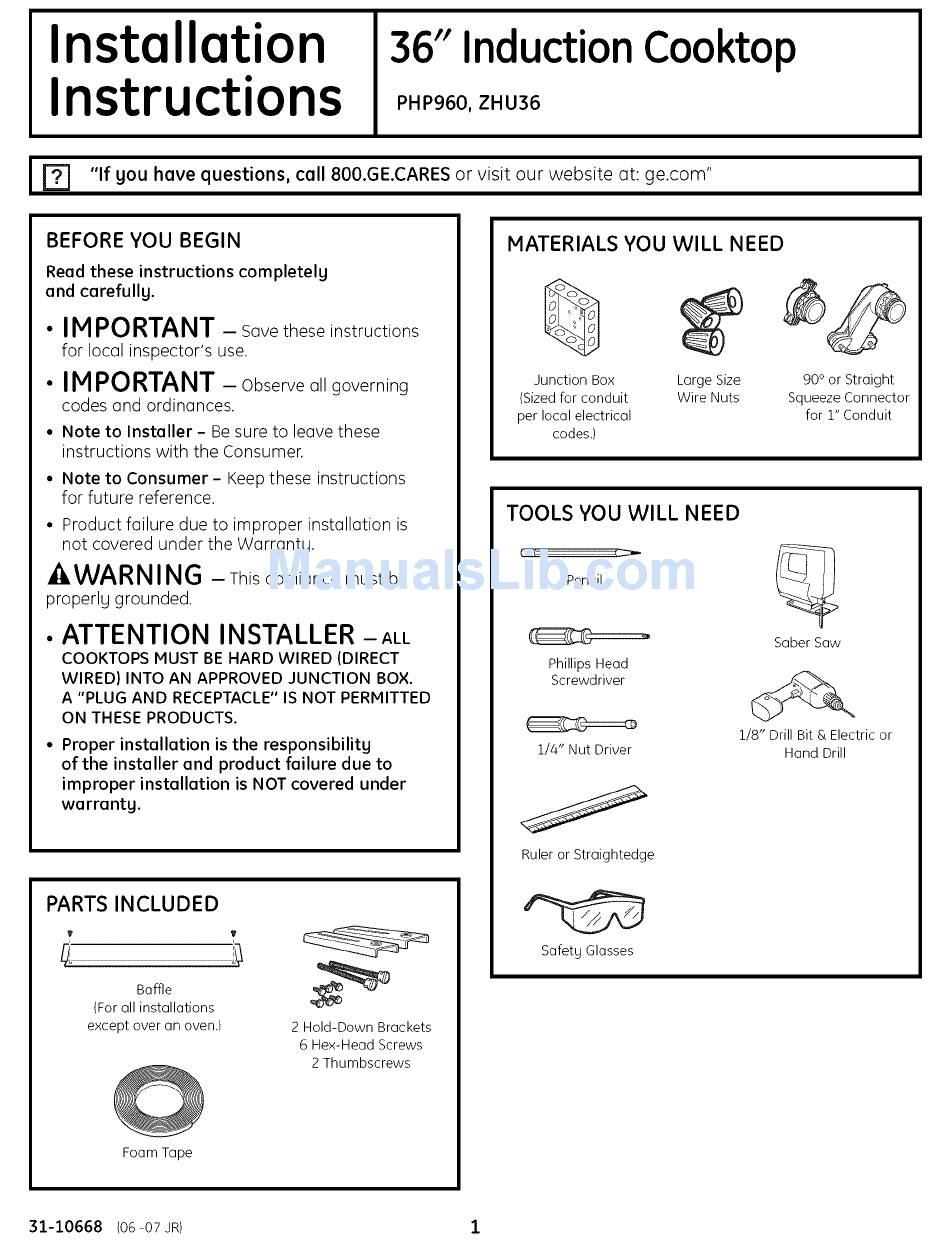

Installation
Instructions
36" Induction Cooktop
PHP960, ZHU36
I[_]
"If gou have questions,
call 800.GE.CARES or visit our website at: ge.com"
I
BEFORE YOU BEGIN
Read these instructions
completelg
and carefullg.
• IM PORTANT - save these i nstructions
for local inspector's
use.
• IM PORTANT - Observe all g overning
codes and ordinances.
• Note to Installer-
Be sure to leave these
instructions
with the Consumer.
• Note to Consumer-
Keep these instructions
for future reference.
• Product failure due to improper
installation
is
not covered under the Warrant9,
-&WARNING
-This
appliance
must be
properly
grounded.
• ATTENTION INSTALLER --ALL
COOKTOPS MUST BE HARD WIRED (DIRECT
WIRED) INTO AN APPROVED JUNCTION BOX.
A "PLUG AND RECEPTACLE" IS NOT PERMITTED
ON THESE PRODUCTS.
• Proper installation
is the responsibility
of the installer
and product
failure
due to
improper
installation
is NOT covered
under
warranty.
PARTS INCLUDED
i
Baffle
(For all installations
except
over an oven.)
@
FoamTape
i
2 Hold-Down
Brackets
6 Hex-Head
Screws
2 Thumbscrews
MATERIALS YOU WILL NEED
Junction Box
Large Size
(Sizedfor conduit
Wire Nuts
per local electrical
codes.)
900 or Straight
Squeeze Connector
for 1" Conduit
TOOLS YOU WILL NEED
Pencil
Phillips Head
Screwdriver
1/4" Nut Driver
Ruler or Straightedge
Safetg Glasses
SaberSaw
1/8" Drill Bit & Electric or
Hand Drill
31-10668 (o6-o7 J R)
1
