Summary of Contents for Inter-m EP-616

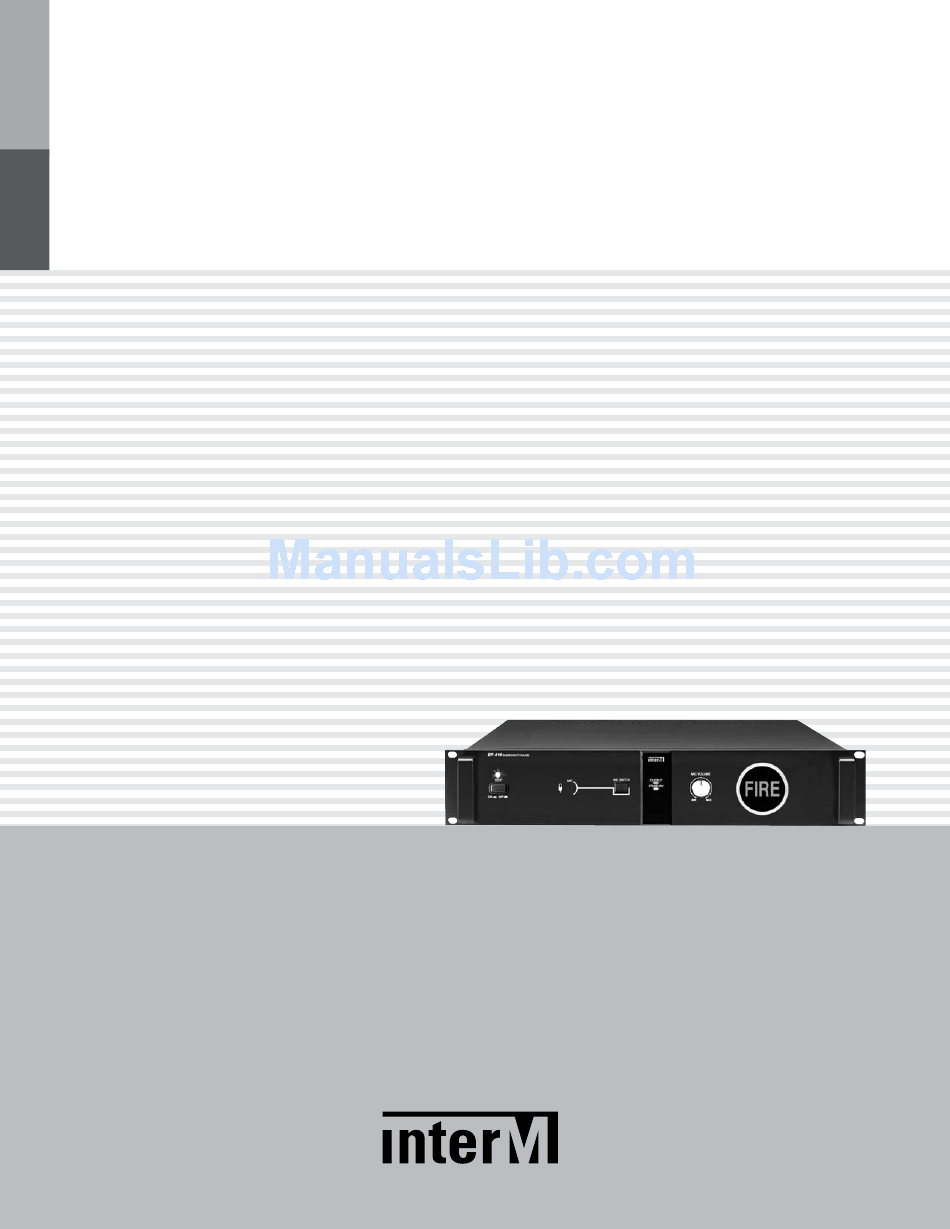

- Page 1 Operation Manual Emergency Panel EP-616...
- Page 2 A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
Contents Unpacking ............................2 Installation Environment............................2 Important Safety Instructions......................2 Features ............................3 Operation ............................3 Front Panel ............................4 Rear Panel ............................5 Suggestions for Rack Installation ....................7 Applications ............................8 Block Diagram ..........................9 Specifications ..........................10 Service Procedures............................11 Schematic .............................11 Parts List ............................11 Warranty ............................11 EP-616... -
Page 4: Unpacking
EMERGENCY PANEL Unpacking Unpacking Although your EP-616 is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. As with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely event the product must be returned for servicing, the original packaging (or reasonable equivalent) is required. -
Page 5: Features
Use the test function for system tests or to conduct emergency drills. Operation Operation 1. Switch off the EP-616 Power Switch. 2. Select either External mode or Internal mode before installing the system. 3. Using the TEST SWITCH, an alarm is broadcast through the built-in speaker. -

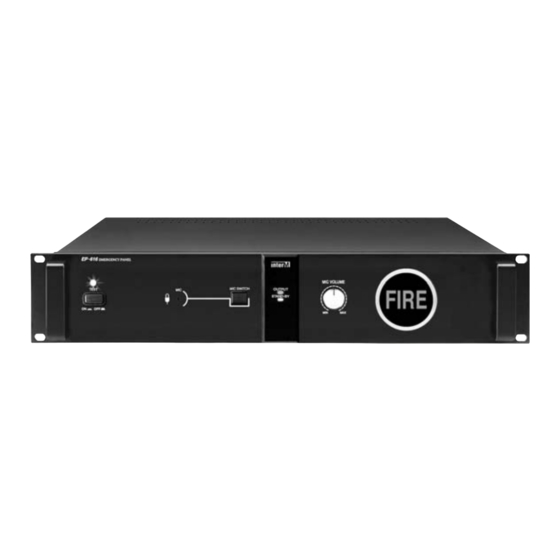

Page 6: Front Panel
This LED will light to indicate that power has been applied to the unit, and the unit is in Standby mode. 5. MIC VOLUME This knob controls the mic output volume. Rotating in a clockwise direction increases volume. 6. FIRE INDICATOR LED This panel indicates when a fire has been detected. EP-616... -
Page 7: Rear Panel
(refer to the drawing below). Recommended microphone by Inter-M will be desirable. 2. MATRIX CONNECTOR This multi-pin EMG jack is for the connection of an external timer, such as the Inter-M ECS-616. 3. REMOTE MIC TERMINAL Connect an external microphone to this terminal. The external mic is active when the remote mic switch (4) is set to external. - Page 8 These jacks are used to connect the output of a pre-amplifier to REMOTE 1 and REMOTE 2. 10. TIMER INPUT JACK This jack is for the connection of an external timer, such as the Inter-M PW-642. 11. AUTO ANN INPUT JACK Connect the output of an auto broadcasting system (or a cassette deck or other line level device) to this balanced XLR input jack.
-
Page 9: Suggestions For Rack Installation
4. Connect audio output of your auto broadcasting system to the AUTO ANN INPUT jack (11), and the DC 24V input jack of your auto broadcasting system to the DC 24V terminal jack (5) of the EP-616. 5. Connect the output jack of the Inter-M PW-642 to the TIMER INPUT jack (10). -
Page 10: Applications
EMERGENCY PANEL Applications Applications The shape of outlets can be different according to country requirements. EP-616... -
Page 11: Block Diagram
EMERGENCY PANEL Block Diagram Block Diagram EP-616... -
Page 12: Specifications
EMERGENCY PANEL Specifications Specifications EP-616 Operating Modes Auto, Test Siren Frequency 800Hz (Oscillating siren tone) Program Exchange Mode Business, RM1, RM2, Timer, EMG. Operation Temperature -10°C ~ +40°C Power Source 24V DC Power Consumption 720mA Weight (SET) 4.6kg/10.5lb Dimensions (SET) 482(W)x88(H)x380(D)mm / 19(W)x3.5(H)x15(D)in... -
Page 13: Service
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. - Page 14 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
