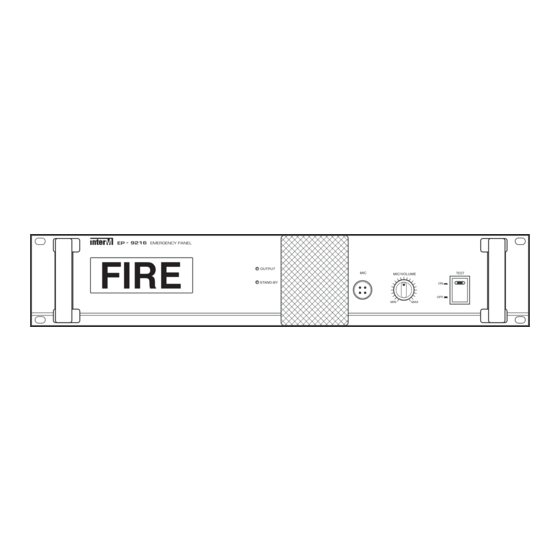

- Page 1 EP-9216 Emergency Panel 9216 EMERGENCY PANEL FIRE OUTPUT TEST MIC/VOLUME STAND-BY...
-
Page 2: Table Of Contents
Contents Contents Welcome Warning............................1 Unpacking ............................2 Installation Environment............................2 Important Safety Instructions......................2 Features ............................3 Front Panel ............................4 Rear Panel ............................5 Suggestions for Rack Installationl ....................7 Operating Procedure ........................7 Applications ............................8 Block Diagram ..........................9 Specifications ..........................10 Service Procedures............................11 Schematic .............................11 Parts List ............................11 Variations and Options .......................11 Warranty... -
Page 3: Warning
A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products. -
Page 4: Unpacking
EMERGENCY PANEL Unpacking Although your EP-9216 is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. As with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely event the product must be returned for servicing, the original packaging (or reasonable equivalent) is required. -
Page 5: Features
- TEST FUNCTION Use the test function for system tests or to conduct emergency drills. - WORKS FLAWLESSLY WITH OTHER INTER-M PRODUCTS Use with the Inter-M ES-9116 Emergency Switcher, the Inter-M PX-9116 Matrix, and the Inter-M RG-9116 Relay Group. EP-9216... -
Page 6: Front Panel
5. STANDBY INDICATOR LED This LED will light to indicate that power has been applied to the unit, and the unit is in Standby mode. 6. MIC VOLUME This knob controls the mic output volume. Rotating in a clockwise direction increases volume. EP-9216... -
Page 7: Rear Panel
This terminal is used for connecting to the DC 24V IN terminal of an auto-broadcasting system. 2. MATRIX CONNECTOR This multi-pin EMG jack is for the connection of an external timer, such as the Inter-M PX-9116. 3. PRE-AMP INPUT JACK This jack is used to connect the output of a pre-amplifier. - Page 8 10. AUTO ANN SELECTOR SWITCH This switch is used to set the auto announcement mode to either external or internal. 11. SIREN VOLUME This knob controls the siren level, triggered during an emergency. Rotating in a clockwise direction increases volume. EP-9216...
-
Page 9: Suggestions For Rack Installationl
4. Connect audio output of your auto broadcasting system to the AUTO ANN input jack (6), and the DC 24V In jack of your auto broadcasting system to the DC 24V OUT jack (1) of the EP-9216. 5. Connect the output jack of the Inter-M PW-9242N to the TIMER jack (5). -
Page 10: Applications
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR. PRE IN REMOTE IN 2 REMOTE IN 1 TIMER IN AUTO ANN IN PRE OUT EP-9216 REMOTE MIC SIREN/VOLUME AUTO. ANN DC OUT CONTROL OUT (TO AUTO ANN) REMOTE MIC/ REMOTE MIC SWITCH... -
Page 11: Block Diagram
EMERGENCY PANEL Block Diagram Block Diagram EP-9216... -
Page 12: Specifications
Built-In Microphone ....................Uni-directional dynamic Program Exchange Mode ................Business, RM1, RM2, Timer, EMG. - GENERAL Power Source ...........................24V DC Power Consumption ..........................4W Weight ............................4kg/8.8lb Dimensions ..............482(W) x 88(H) x 280(D)mm/19(W) x 3.5(H) x 11(D)in * Specifications and design subject to change without notice. EP-9216... -
Page 13: Service
To obtain specific warranty information and available service locations contact Inter-M directly(in Korea or the USA) or the authorized Inter-M Distributor for your specific country or region. - Page 14 NOTE...
