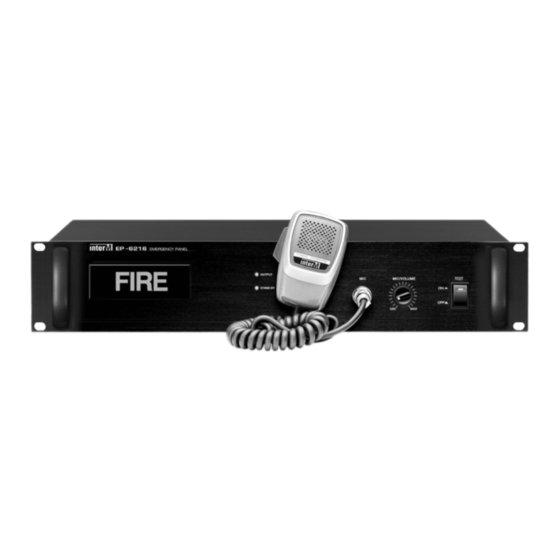

- Page 1 Operation Manual Emergency Panel EP-6216 * Rack mount products in the Western Hemisphere(North America, South America, and the Caribbean) do not have handles installed due to customer preference.
- Page 2 A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
Important Safety Instructions......................2 Features ............................3 Front Panel ............................4 Rear Panel ............................5 Suggestions for Rack Installation ....................7 Operating Procedure ........................7 Voice File Board (VF-01N Option) ....................8 Applications ............................9 Block Diagram ..........................10 Specifications ..........................11 Service Procedures............................13 Schematic.............................13 Parts List ............................13 Warranty ............................13 EP-6216... -
Page 4: Unpacking
EMERGENCY PANEL Unpacking Unpacking Although your EP-6216 is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. As with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely event the product must be returned for servicing, the original packaging (or reasonable equivalent) is required. -
Page 5: Features
Connect to a fire sensor for a fully functional fire alarm. - AUTO OPERATING FUNCTION Alarm will sound automatically on alternate floors. - AUTO ANNOUNCEMENT Automatic announcements during fire alarm operation. - TEST FUNCTION Use the test function for system tests or to conduct emergency drills. EP-6216... -
Page 6: Front Panel
5. STANDBY INDICATOR LED This LED will light to indicate that power has been applied to the unit, and the unit is in Standby mode. 6. MIC VOLUME This knob controls the mic output volume. Rotating in a clockwise direction increases volume. EP-6216... -
Page 7: Rear Panel
Rear Panel 1. MATRIX CONNECTOR This multi-pin EMG jack is for the connection of an external timer, such as the Inter-M ECS-6216P. 2. REMOTE MIC TERMINAL Connect an external microphone to this terminal. The external mic is active when the Remote Mic Switch (3) is set to External. - Page 8 EMERGENCY PANEL 9. TIMER INPUT JACK This jack is for the connection of an external timer, such as the Inter-M PW-6242A. 10. AUTO ANN INPUT JACK Connect the output of an auto broadcasting system (or a cassette deck or other line level device) to this balanced XLR input jack.
-
Page 9: Suggestions For Rack Installation
4. Connect audio output of your auto broadcasting system to the AUTO ANN input jack (10), and the DC 24V In jack of your auto broadcasting system to the DC 24V OUT jack (4) of the EP-6216. 5. Connect the output jack of the Inter-M PW-6242A to the TIMER jack (9). -
Page 10: Voice File Board (Vf-01N Option)
- Basically, the release of the product is configured the 4 times of this. 3. Voice compose board of VF-01N is possible to control the level of output. During installation, please control the level of output by VR-101 of VF-01N. VR101 EP-6216... -
Page 11: Applications
RME 6108 DC 24V, 150mA TEL : 1588 7074 RM-6024+RM-6012KP PW-6242A PC(GUI) RM-01 PV-6232 DIB-6000 LINE LINK LINE MATRIX EP-6216 TO PC INPUT OUTPUT PRI. MUTE INPUT OUTPUT PRE IN REMOTE IN 2 REMOTE IN 1 TIMER IN AUTO ANN IN... -
Page 12: Block Diagram
EMERGENCY PANEL Block Diagram Block Diagram EP-6216... -
Page 13: Specifications
EMERGENCY PANEL Specifications Specifications EP-6216 Operating Modes Auto, Test Emergency Siren Frequency 800Hz (Emergency) Program Exchange Mode Businessm, RM1, RM2, Timer Operation Temperature -10°C ~ +40°C / 14°F~104°F Power Source DC 24V Power Consumption Weight (SET) 4kg/8.8lb Dimensions (SET) 482(W)x88(H)x280(D)mm/19(W)x3.5(H)x11(D)in * Design and specification are subject to be changed for the improvement of product quality without pre notice. - Page 14 EMERGENCY PANEL ※ DIMENSIONS EP-6216...
-
Page 15: Service
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. - Page 16 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
