Inter-m EP-616 Service Manual

Inter-m EP-616 Service Manual

Emergency panel
Hide thumbs Also See for EP-616:

Advertisement

Quick Links

Download this manual
Emergency Panel
EP-616

Advertisement

loading

Related Manuals for Inter-m EP-616

Summary of Contents for Inter-m EP-616

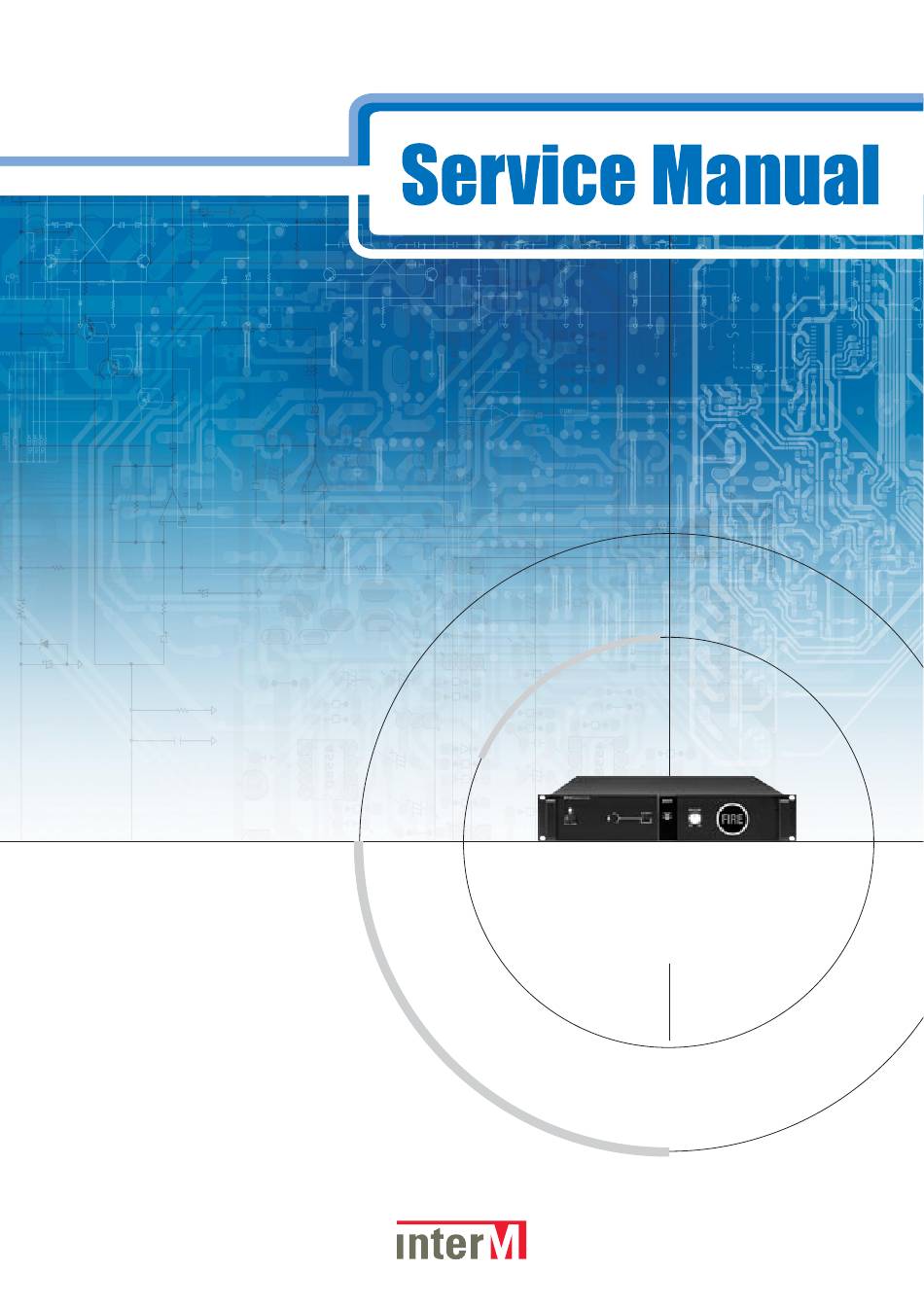

  • Page 1 Emergency Panel EP-616...

  • Page 2: Table Of Contents

    CONTENTS Specifications ................. 1 Electrical Parts List ................ 2 Top and Bottom View of P.C. Board ..........5 Wiring Diagram ................7 Block Diagram ................8 Schematic Diagram ............... 9 Exploded View of Cabinet Chassis/Mechanical Parts List ... 10...

  • Page 3: Specifications

    SPECIFICATIONS EP-616 Operating Modes Auto, Test Siren Frequency 800Hz(Oscillating siren tone) Program Exchange Mode EMG. Operation Temperature -10°C ~ +40°C Power Source 24V DC Power Consumption 720mA Weight (SET) 4.6kg/10.1lb Dimensions (SET) 482(W)x88(H)x380(D)mm/19(W)x3.5(H)x15(D)in * Specifications and design are subject to change without notice.

  • Page 4: Electrical Parts List

    ELECTRICAL PARTS LIST Ref. Part No. Description Value MAIN B’D CN4 CN8 111357 CON WAFER,BOX(M),2P,ST WAFER 2P 111358 CON WAFER,BOX(M),3P,ST WAFER 3P CN10 111415 04P/B4P-VH/3.96,B4PVH-04P LPH01-04 111416 CON WAFER,LOCK(M),5P,ST WAFER 5P 111417 CON WAFER,LOCK(M),6P,ST WAFER 6P 111419 CON WAFER,LOCK(M),8P,ST WAFER 8P RLY1-4 RLY9-10 112724 RELAY,DPDT,24V,1A,125VAC,502N1-2C-S-24V...
  • Page 5 ELECTRICAL PARTS LIST Ref. Part No. Description Value R25 R37 R46 R49 R67 R69-70 104237 RES,MF,10K,1/5W,5%,AX N,TA R80 R85 R96 R100 104257 RES,MF,15K,1/5W,5%,AX N,TA 104270 RES,MF,18K,1/5W,5%,AX N,TA R1J/A,1 R2 R31 R39 R68 R79 R86 104236 RES,MF,1K,1/5W,5%,AX N,TA 104239 RES,MF,1M,1/5W,5%,AX N,TA 104281 RES,MF,2.2K,1/5W,5%,AX N,TA 2.2K...
  • Page 6 ELECTRICAL PARTS LIST Ref. Part No. Description Value LED B’D 104375 RES,MF,910,1/5W,5%,AX N,TA 112107 SW,SLIDE,HOR,DPDT,NS,L9MM SV10020F-0202-9T-SN TER3 111895 TERMINAL/4P,4P ANN-IN PRE-IN 111895 TERMINAL,SCREW,4P,10MM,ST KNL7704 RM1-2 TIMER PREOUT 110896 JACK,XLR(M),1U,3P,AN,E503A0130N E503A0130N ZD3-4 102735 DIODE,ZN,500MW,BM,10V,DO-35,TA 1N5240B ASS’Y 2058502180 DIODE,ZN,500MW,BM,18V,DO-35,TA 1N5248B 107064 CON ASS’Y,DS,2P,5264,5395,300MM ASS’Y 2P CN11 111357...

  • Page 7: Top And Bottom View Of P.c. Board

    TOP & BOTTOM VIEW OF P.C BOARD...
  • Page 8 TOP & BOTTOM VIEW OF P.C BOARD...

  • Page 9: Wiring Diagram

    WIRING DIAGRAM...

  • Page 10: Block Diagram

    BLOCK DIAGRAM...

  • Page 11: Schematic Diagram

    SCHEMATIC DIAGRAM...

  • Page 12: Exploded View Of Cabinet Chassis/Mechanical Parts List

    EXPLODED VIEW OF CABINET & CHASSIS/ EXPLODED VIEW OF CABINET & CHASSIS/ MECHANICAL PARTS LIST MECHANICAL PARTS LIST 품 명 규 격 수량 BM 3*6N 8109340063R FELT 6735991510 Connector Ass'y 4353987210 MAIN B'D 400000440A SP Unit 3" 16ohm, 1W 5008000210 M-LED8 B'D 400000444A M-FIRE B'D...
  • Page 13 MADE IN KOREA 2008. 7 90...
