Introduction

We are pleased that you have decided to purchase this
axxent high power amplifier. Please read the following
manual carefully, to reach best results.

Important Features

axxent „T" or „TS" series amplifiers have isolated constant
voltage outputs for loudspeakers or loudspeaker lines with
audio transformers. The model 4120TS and 4240TS may also
be used with low impedance outputs.
Four discreet audio channels with a common power supply
feature low impedance outputs down to four ohms, as well
as constant voltage outputs of 50-, 70-, or 100 volts.
On the following pages please find important operational hints
like the controls and knobs on the front- and the connectors
on the rear side of the amplifier.
axxent e.K. · Technologiezentrum Herzbachtal · Zum Wartturm 15 · 63571 Gelnhausen axxent e.K. · Technologiezentrum Herzbachtal · Zum Wartturm 15 · 63571 Gelnhausen
Fon: +49-6051-9165584 · Fax: +49-6051-9165585 · mail@axxent.de · www.axxent.de Fon: +49-6051-9165584 · Fax: +49-6051-9165585 · mail@axxent.de · www.axxent.de
®

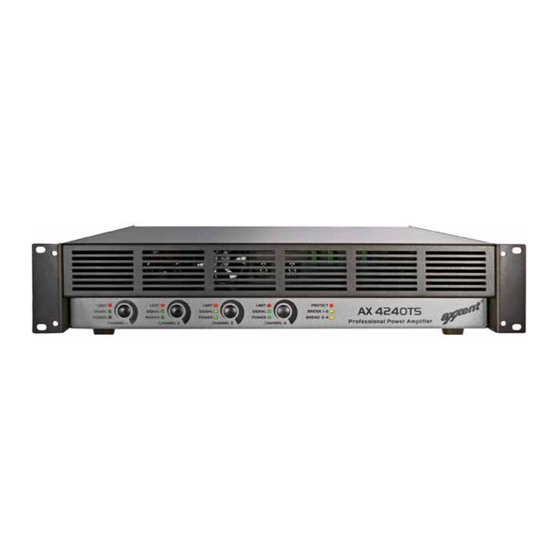

professional 4 channel amplifier
models AX4120TS / AX4240TS
contents
frontside controls .................2
rear side connectors ...... 3-4
fan speed jumper .................5
1
