user manual
Introduction
We are pleased you have decided to purchase this axxent high
power amplifier. Please read the following manual carefully in
order to obtain best results.
Important features

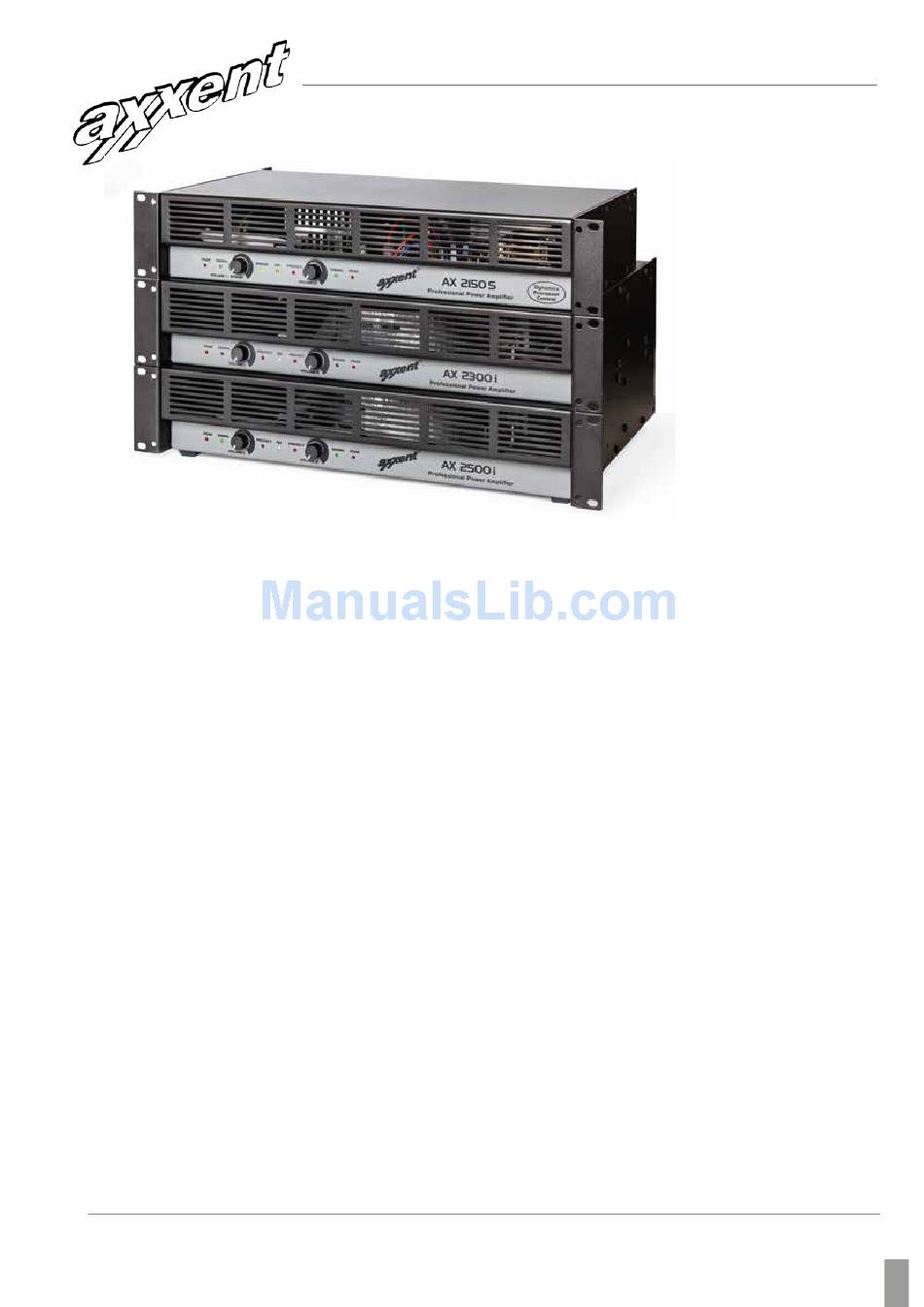

The axxent amplifier models AX2150S, AX2300i and AX2500i
are intended for loudspeakers with impedances of 4 ohms or
higher. We do not recommend impedances of less then 4 ohms.
Model AX2150S offers an output power of 2 x 150 W
ohms. In addition this amplifier may be operated in bridge
modus, resulting in an output power of 1 x 300 W
The use of a switch mode power supply results in light weight
(facilitating transportation) and keeps the amp cool.
Model AX2300i generates 2 x 300 W
AX2500i delivers 2 x 500 W
equipped with a low stray toroidal transformer in the power
supply circuitry.
On the following pages please find important operational hints
like the controls and knobs on the front- and the
Connectors On The Rear side of the amplifier.
axxent e.K. • Technologiezentrum Herzbachtal • Zum Wartturm 15 • 63571 Gelnhausen
Fon: +49-6051-9165584 • Fax: +49-6051-9165585 • mail@axxent.de • www.axxent.de
®
models AX2150S • AX2300i • AX2500i
at 4 ohms, while model
rms
at 4 ohms. Both models are
rms
professional amplifiers
at 4
rms
at 8 ohms.
rms
CONTENTS
Controls On Front Side ................... 2
Connectors on the rear ................3
Configuration of DIP-switch ......4
Additional hints ................................ 5
1
Advertisement
Table of Contents
Related Manuals for Axxent AX2150S
Summary of Contents for Axxent AX2150S
- Page 1 4 ohms or higher. We do not recommend impedances of less then 4 ohms. Model AX2150S offers an output power of 2 x 150 W at 4 ohms. In addition this amplifier may be operated in bridge modus, resulting in an output power of 1 x 300 W at 8 ohms.
- Page 2 For the same reason the mains on/off switch is located on the rear side. axxent e.K. • Technologiezentrum Herzbachtal • Zum Wartturm 15 • 63571 Gelnhausen Fon: +49-6051-9165584 • Fax: +49-6051-9165585 • mail@axxent.de • www.axxent.de...
- Page 3 The mains switch on the models AX2300i and AX2500i is located centrally and on the left side on model AX2150S. Close by you will find the IEC-mains plug with the fuse holder. Model AX2150S uses a 4 A fuse, while in the model AX2300i is equipped with a 6,3 A and the model AX2500i with a 10 A fuse.
- Page 4 2 the black post for minus. The level is controlled on potentiometer for channel 1. A further special on model AX2150S is a switch for a high pass filter in order to reduce or suppress low frequency inter- ference signals like rumble and subsonic components which might be hazardous to the loudspeakers.
- Page 5 63571 gelnhauSen, germany, zum wartturm 15 date: 9. january 2014 name: joSef becker poSition: owner Stamp and Signature: axxent e.K. • Technologiezentrum Herzbachtal • Zum Wartturm 15 • 63571 Gelnhausen Fon: +49-6051-9165584 • Fax: +49-6051-9165585 • mail@axxent.de • www.axxent.de...
