Axxent AX-1121TS User Manual

user manual

introduction
We are pleased that you decided to use an axxent power
amplifier. Please read the following instruction to obtain
the maximum results.
important functions and features
axxent amplifiers with the „T" or "TS" in the model designation
feature fully isolated constant voltage outputs for loudspeakers
with built-in constant voltage transformers. Models AX1121TS,
AX1240TS and AX1400TS also have low impedance outputs to
drive 4 ohms or 8 ohms loudspeakers.
Model AX1121TS has 120 watts power, AX1240TS 240 watts and
AX1400TS 400 watts of r.m.s. power. This the total power to
the constant voltage outputs with either 50 v, 70 v or 100 v or
low impedance. All amplifiers drive loudspeakers with load im-
pedances as low as 4 ohms.
The following pages will guide you through the use of
controls on the front side and of the connections on the
rear side of the amplifier.
axxent e.K. • Technologiezentrum Herzbachtal • Zum Wartturm 15 • 63571 Gelnhausen
Fon: +49-6051-9165584 • Fax: 9165585 • mail@axxent.de • www.axxent.de
®
professional power amplifier

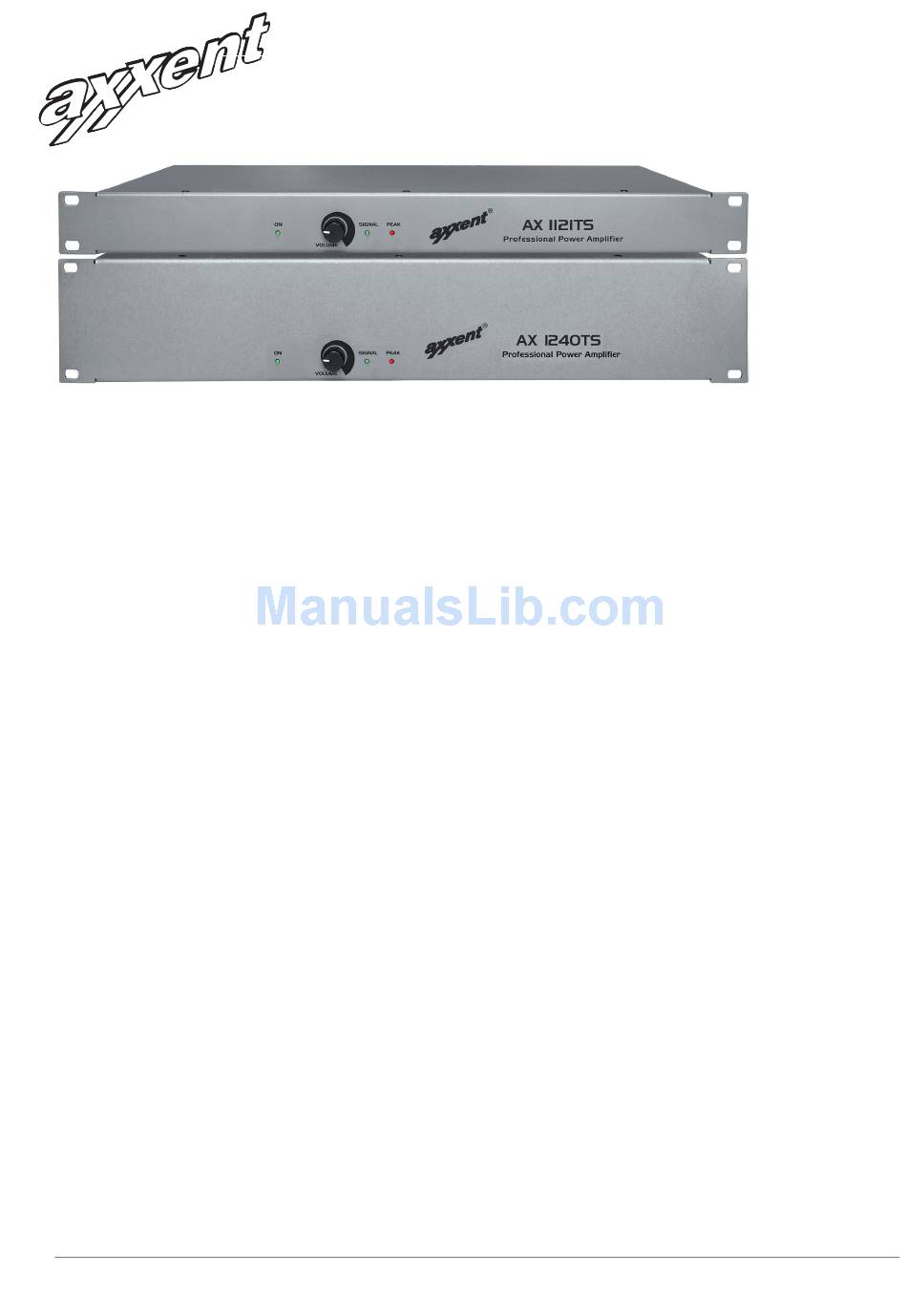

models AX-1121TS / AX1240TS / AX 1400TS
index
controls on frontside ................2
connectors on the rear ............3
in- and outputs ............................4
