Axxent AX-4120TS-D Operator's Manual

INTRODUCTION

We are pleased that you have chosen one of these multichannel amplifiers from axxent. Please read the following
instructions for optimal results when using it.

IMPORTANT FUNCTIONAL FEATURES

Amplifiers of the axxent series with additional de-
signation „TS-D" are network-compatible through
digital Dante/AES67 input and have isolated constant
voltage outputs for loudspeakers and loudspeaker
lines with transformer matching. The AX-4120TS-D
and AX-4240TS-D amplifiers can also be operated
with low impedance.
The AX-4120TS-D/4240TS-D amplifiers have four
discrete audio channels with a common power supp-
ly. All channels can be operated with low impedance
as well as with the constant voltage outputs 70 V
or 100 V. However, only optionally and not together.
Since you can use each channel as you wish with low
impedance OR high impedance (70/100 V), you can
meet almost all requirements in installations.
axxent e.K. · Technologiezentrum Herzbachtal · Zum Wartturm 15 · 63571 Gelnhausen
fon: +49-6051-9165584 · fax: 9165585 · mail@axxent.de · www.axxent.de
®

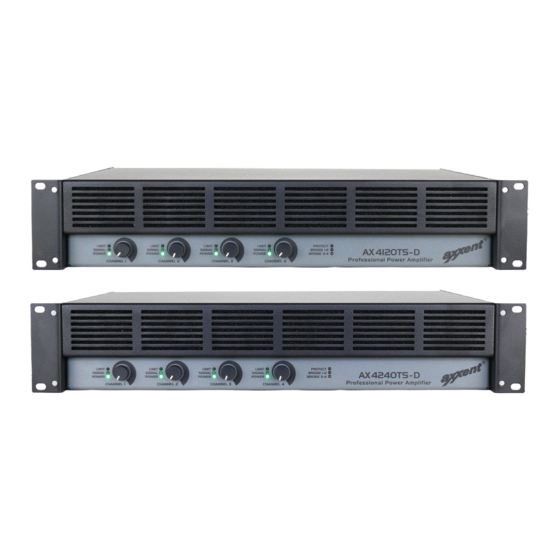

Operator's Manual AX-4120TS-D/AX-4240TS-D
Professional 4-channel power amplifiers
!
IMPORTANT SAFETY
PRECAUTIONS
On rear side of the amplifier you can find a
CAUTION symbol.
To reduce the risk of electric shock, do not
remove the cover. No user-serviceable
parts inside. Refer servicing to qualified
personnel.
1
