Contents of the box:
Mixer/Amplifier AMV-7240 MKII
19" rack mount brackets (pre attached)
IEC Mains Cable
Adjustment Screwdriver
unit size: 430 mm x 335 mm x 88 mm (without rack mount brackets)
weight: 10.15 kg net, 12.7 kg shipping
After unpacking the unit connect the delivered power cable (IEC plug) with the receptacle on the rear side of the
unit. Before connecting the other end of the power cable to the wall outlet, make sure that the „POWER"-switch
on the right hand side on the front of the unit is in the „OFF" position. Also the MASTER VOLUME rotary knob
should be set to „min" (fully counterclockwise).
Controls

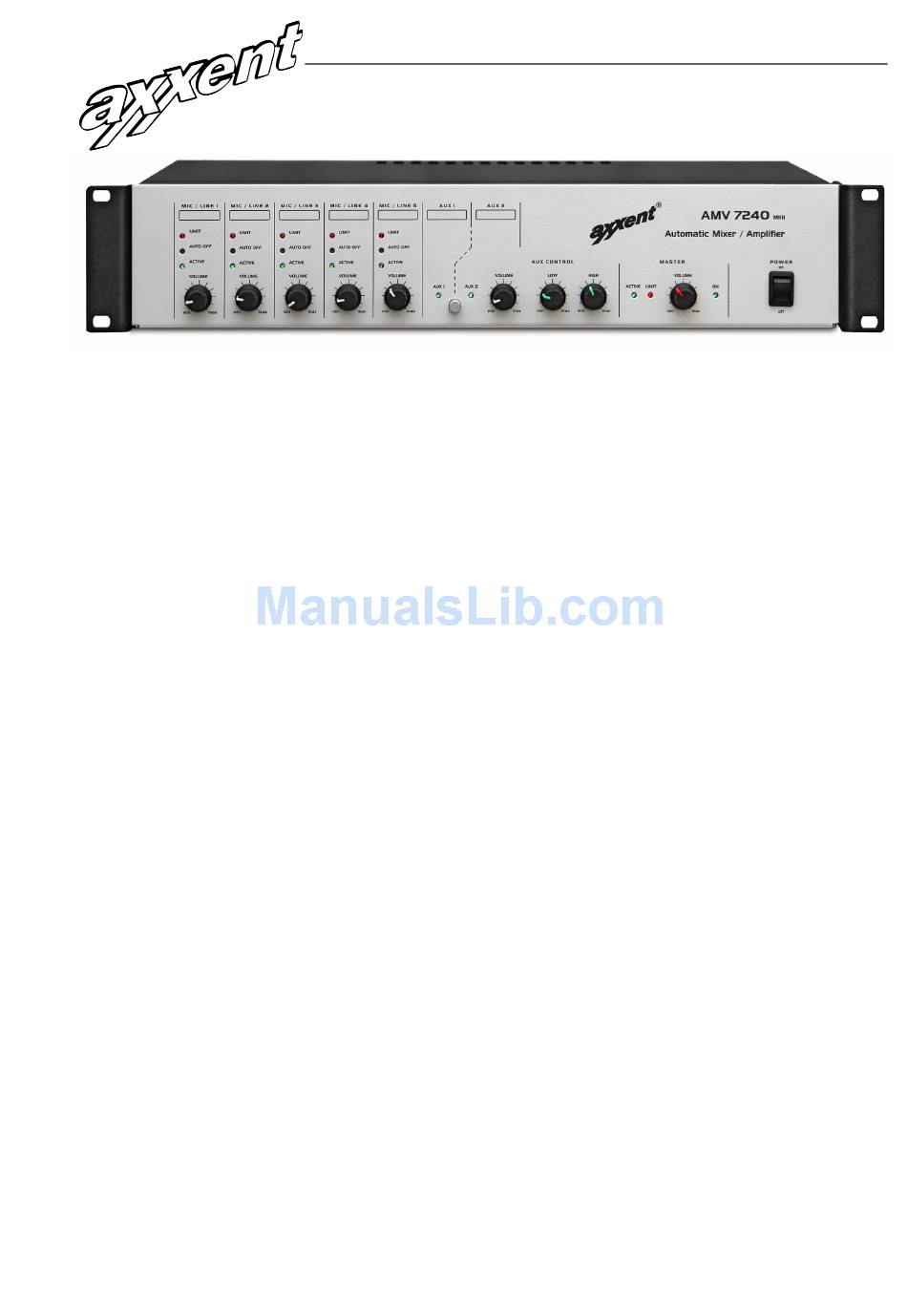

Front side:
On the left hand side you will find five rotary knobs for setting the level of the microphone and line level inputs.
In basic function the microphone inputs are set for mic level and the phantom power is set for electret-/conden-
sor microphones, requiring 48 volts phantom powering.
The microphone and line level inputs are set to automatic function, opening only at a predetermined SPL, veri-
fied by the green LED indicator „ACTIVE". The automatic function can be disabled (using a thin pin tool) "AUTO
OFF". In the basic settings this switch is not pushed in and the automatic function is active. The red LED indica-
tor above verifies the onset of the limiter function (LIMIT). The limiter circuit avoids overload and clipping of the
signal.
In the mid section of the front panel you will see the switches- and controls for the AUX inputs, used for connec-
tion of CD-/MP3 player, wireless microphones etc. The AUX inputs are located on the rear of the unit (twin RCA
inputs) and are internally set to mono/parallel. The required AUX input is selected from the front panel (either
AUX-1 or AUX-2). Here you also set the level and the desired high-/low EQ of the signal.
On the right hand side on the front panel you will find the main level control with metering and indication of
limiter activity and of course the on/off switch with control indicator.
Rear side of the unit
–> next page...
®
Operating Instructions
AMV-7240 MKII
Automatic-Mixer/Amplifier
1
Advertisement
Table of Contents
Related Manuals for Axxent AMV-7240 MKII
Summary of Contents for Axxent AMV-7240 MKII
-
Page 1: Operating Instructions
® AMV-7240 MKII Automatic-Mixer/Amplifier Operating Instructions Contents of the box: Mixer/Amplifier AMV-7240 MKII 19" rack mount brackets (pre attached) IEC Mains Cable Adjustment Screwdriver unit size: 430 mm x 335 mm x 88 mm (without rack mount brackets) weight: 10.15 kg net, 12.7 kg shipping After unpacking the unit connect the delivered power cable (IEC plug) with the receptacle on the rear side of the unit. - Page 2 ® AMV-7240 MKII Automatic-Mixer/Amplifier Rear side (from left to right): IEC mains socket with fuse holder. Fuse is 4 A, slow blow. In case this fuse will blow (green LED indicator on the front is off) pls. exchange the fuse with a new one of the same type. In the rare case the fuse should blow again, please contact a service technician or your dealer.
- Page 3 ® AMV-7240 MKII Automatic-Mixer/Amplifier The AMV7240 MKII features a removable metal plate on its top - secured by six small metal screws. Parameters of Mic/Line inputs (gain, 3-band eq, compression, noise gate) are adjustable via the supplied adjustment screwdriver. Even inside a 19“ rack already, the AMV7240 MKII may be pulled to front by approx.
- Page 4 ® AMV-7240 MKII Automatic-Mixer/Amplifier 2. Setting/adjusting automatic mixing • After finishing input gain adjustment, please again insert the Jumper J14 for automatic mix function. Now only the microphone with a direct input signal should switch on automatically (green LED ACTIVE). If more than the just used microphone is active, please reduce slightly gain of the other microphones until you reach a proper treshold of the gate.
- Page 5 ® AMV-7240 MKII Automatic-Mixer/Amplifier Other amplifier functions • Microphone signals may be recorded at the RECORD outputs, without being influenced by the volume setting. • Parallel operation of 2 amplifiers is also possible in the AUTOMATIC Mixing mode. In this case the PARALLEL connectors of both amps are used for both amplifiers.
- Page 6 Directive 89/336/EEC and conforms to the requirements of the Harmonized Product Standards EN 55013 (Product Emissions), and EN 55020 (Product Immunity). ® Pic. 3 Set-up components of parametric equalizer axxent e.K. · Zum Wartturm 15 · 63571 Gelnhausen · Fon + 49-6051-9165584 · Fax +49-6051-9165585 www.axxent.de · mail@axxent.de...
