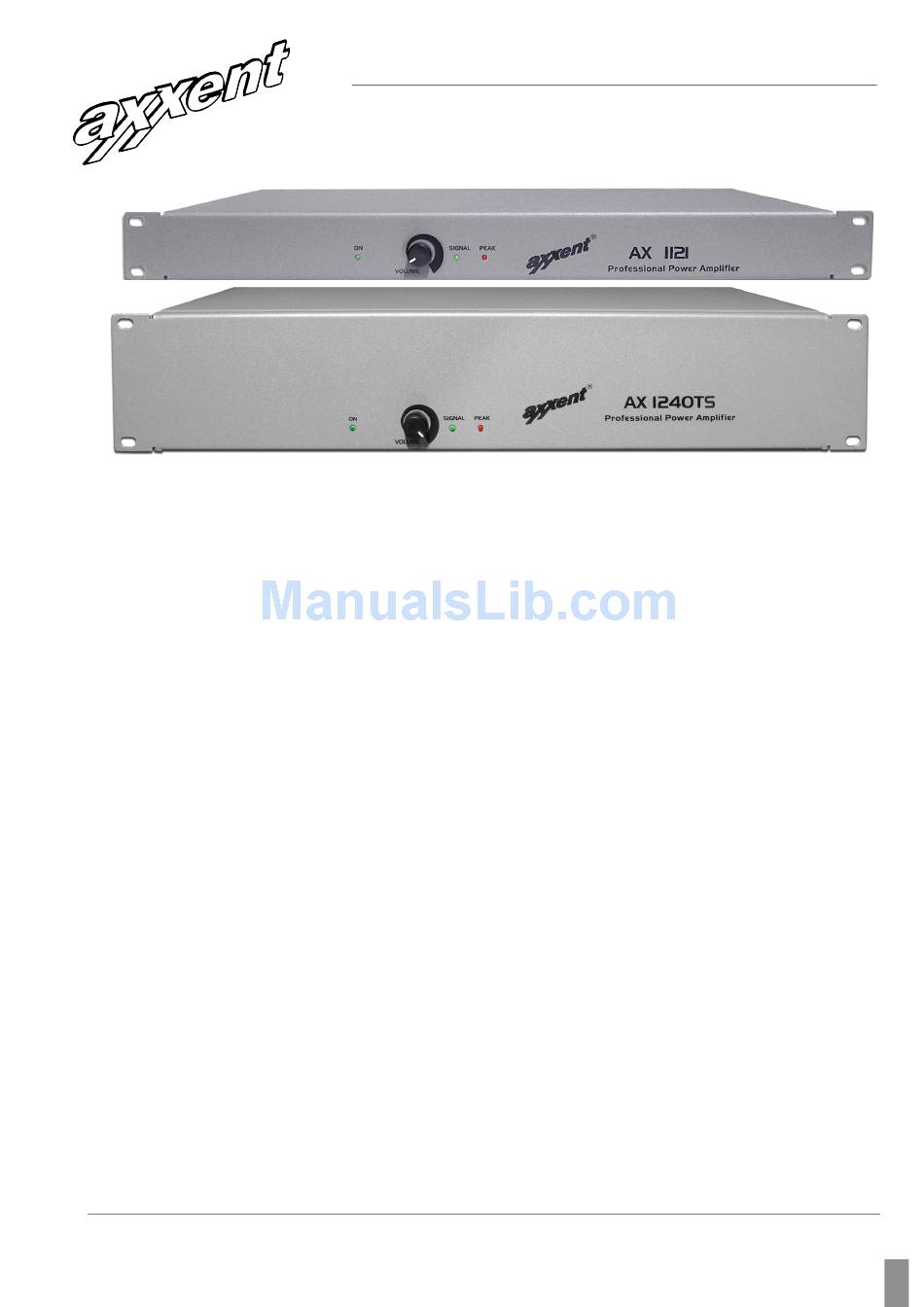

Axxent AX1121TS User Manual

®
professional power amplifier
models AX-1121TS / AX1240TS / AX 1400TS
user manual

Introduction

We are pleased that you decided to use an axxent power
amplifier. Please read the following instruction to obtain
the maximum results.

Important Functions and Features

axxent amplifiers with the „T" or "TS" in the model designation
feature fully isolated constant voltage outputs for loudspeakers
with built-in constant voltage transformers. Models AX1121TS,
AX1240TS and AX1400TS also have low impedance outputs to
drive 4 Ohm or 8 Ohm loudspeakers.
Model AX1121TS has 120 watt power, AX1240TS 240 w and
AX1400TS 400 w of r.m.s. power. This the total power to the
constant voltage outputs with either 50 v, 70 v or 100 v or low
impedance. All amplifiers drive loudspeakers with load imped-
ances as low as 4 ohms.
The following pages will guide you through the use of
controls on the front side and of the connections on the
rear side of the amplifier.
axxent e.K. • Technologiezentrum Herzbachtal • Zum Wartturm 15 • 63571 Gelnhausen
Fon: +49-6051-9165584 • Fax: +49-6051-9165585 • mail@axxent.de • www.axxent.de
1
