Axxent ISV1000 User Manual

user manual
With your choice of this axxent induction loop amplifier you have
decided on a high quality, reliable and rugged part of your sound
system. In order to gain the maximum performance we recommend
to carefully read this manual.
Important!
Because of potential dangerous hazard, the user may operate only the
controls on the front side of the unit. All internal settings described on
the following pages should be adjusted by qualified service personnel
only – the same applies to opening the metal case (risk of electric
shock).
Note:

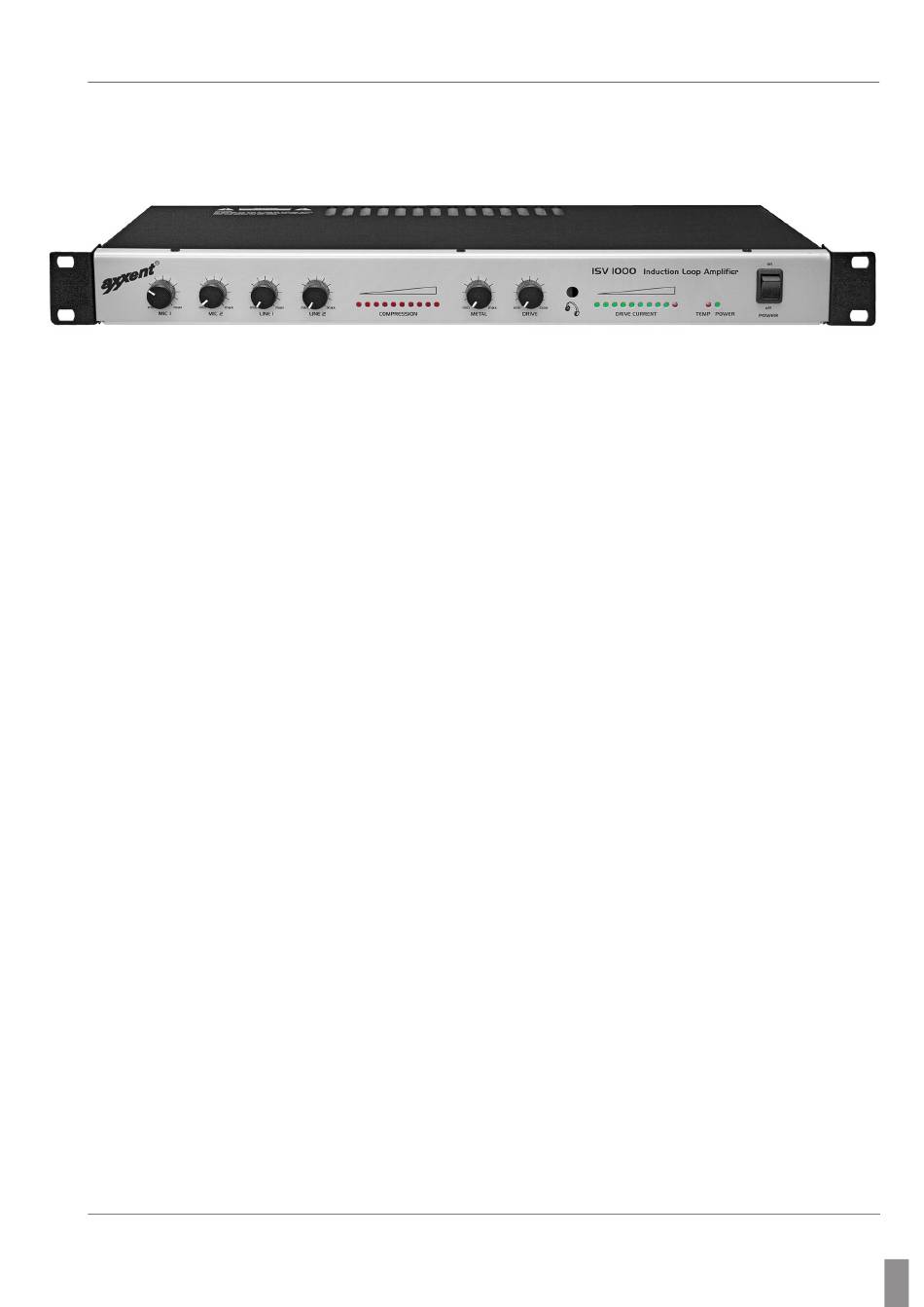

The induction loop amplifier ISV1000 is contained in a standard 19" rack
case with mounted rack ears. It may also be used as a table top unit
with its rubber feet.
Rack mounting: when the unit is intended for rack mounting, you should
make sure whether the factory pre-selected power setting for a cover-
age of up to 200 square meters would be sufficient for your application
– if not, you will have to remove the housing top first. Internal jumpers
on the PCB (printed circuit board) allow to alter these setting. On page
3 you will find the instructions for changing the jumper setting.
Surface mounted unit: Please remove the rack ears. Changing the power
settings, of course, is the same as described in the previous paragraph.
axxent e.K. · Technologiezentrum Herzbachtal · Zum Wartturm 15 · 63571 Gelnhausen
Fon: +49-6051 916 5584 · mail@axxent.de · www.axxent.de
induction loop amplifier ISV1000
INDEX
operating instructions ...................... 2
internal configuration ....................... 3
controls on front side ...................4-5
declaration of conformity ...............6
technical specification ..................... 7
1
