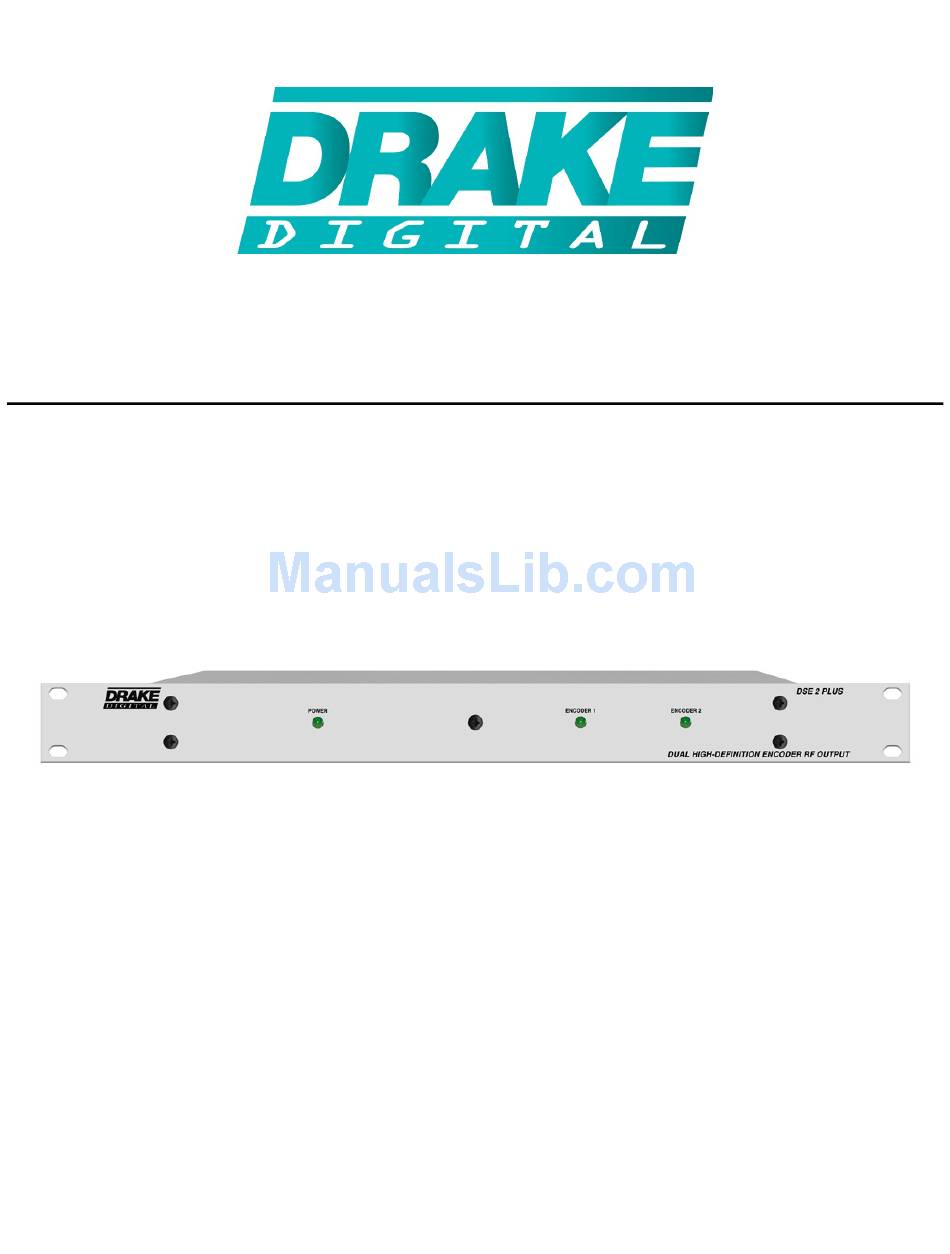

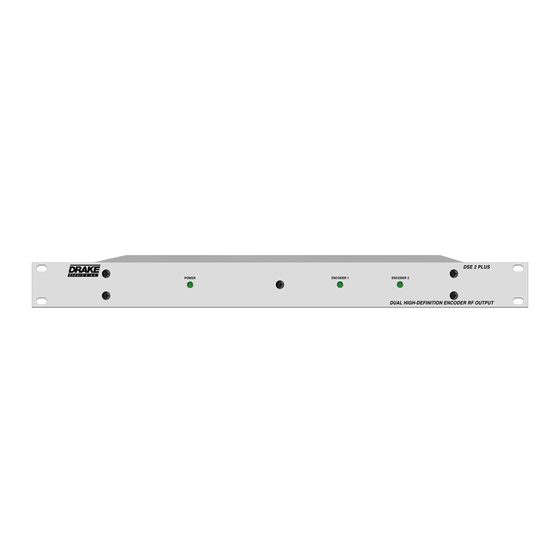

- Page 1 DSE 2 PLUS Dual HD Digital Encoder with Multiplexed QAM Output INSTRUCTION MANUAL is a registered trademark of R.L. Drake Holdings, LLC. © Copyright 2014 R. L. Drake Holdings, LLC P/N 651232800 A Printed in U.S.A.
-
Page 2: Table Of Contents
DSE 2 PLUS | 2 Instruction Manual Rev: 20140 1 Table of Contents IMPORTANT SAFETY INSTRUCTIONS ..............................2 SPECIFICATIONS ......................................4 GENERAL DESCRIPTION ....................................6 FEATURES ........................................6 INSTALLATION AND MOUNTING ................................6 REAR PANEL CONNECTIONS ..................................7 ETHERNET ACCESS ....................................... 8 SETUP AND PROGRAMMING ................................... - Page 3 DSE 2 PLUS | 3 Instruction Manual product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
-
Page 4: Specifications
DSE 2 PLUS | 4 Instruction Manual Specifications DRAKE DSE 2 PLUS HD ENCODER W/QAM OUTPUT 1002583 ENCODER - Video (Specifications are per Encoder) Video Inputs: VGA (with pass-through to monitor) HDMI (non-HDCP Copy Protected) Component (Y-Cr-Cb) Composite (via Y-Input for 480i) - Page 5 DSE 2 PLUS | 5 Instruction Manual Specifications (continued) DRAKE DSE 2 PLUS HD ENCODER W/QAM OUTPUT 1002583 QAM (Quadrature Amplitude Modulation) Modulator / Multiplexer (per chassis) QAM Output Modes: 64 QAM or 256 QAM, ITU Annex B Frequency Coverage:...
-
Page 6: General Description
Instruction Manual General Description The DSE 2 PLUS encodes up to two uncompressed programs from devices with HDMI (non HDCP encrypted), High-Resolution Component Video, Composite or VGA outputs. The DSE 2 PLUS encodes the incoming programs to MPEG2 or MPEG4/H.264 compressed video. An internal multiplexing QAM modulator and low-noise upconverter allows programs to be combined with existing digital and or analog programming. -
Page 7: Rear Panel Connections
DSE 2 PLUS | 7 Instruction Manual Rear Panel Connections All connections are made on the rear panel. R6 R7 R8 R12 R13 R10 R11 R15 R16 R17 R7 – Closed Caption Input 2 - This connector R1 - RF Output – This type “F” connector is a high level (+29.5 dBmV to +45 dBmV), agile 5 to... -
Page 8: Ethernet Access
(e) A dialog box entitled "Internet Protocol your computers Local Area Network connection (TCP/IP) Properties" will appear. Select the "Use to confirm with the DSE 2 Plus default IP of the following IP address" option and enter the 172.16.80.1. To do so, follow these steps:... - Page 9 "Internet Protocol Version 4 (TCP/IPv4)". Enter the username and password and click LOG IN. The default username is "admin" (in lower case letters) and the default password is "pass" (in lower case letters). Figure 1: DSE 2 Plus Login Dialog...
-
Page 10: Setup And Programming
Instruction Manual Setup and Programming Once you have successfully logged in to the DSE 2 Plus, you will be presented with the status page (see Figure 2). Figure 2: DSE 2 Plus Status Tab Along the top edge of the Status tab page, there are four tabs listed; each tab allows you to view and configure different... - Page 11 Instruction Manual Setup and Programming (continued) Figure 3: DSE 2 Plus Encoders Tab The Encoders tab allows you to set each encoder's individual parameters. Select an encoder module from the drop- down menu and the appropriate setting selections will be displayed.
- Page 12 Instruction Manual Setup and Programming (continued) Figure 4: DSE 2 Plus Channels Tab The Channels tab provides an interface to configure the virtual channel mappings for this encoder host. If PSIP is enabled, this page will display a screen that looks like Figure 4; for each encoder output, the MPEG program number can be modified, along with the Major and Minor channel numbers.
- Page 13 DSE 2 PLUS | 13 Instruction Manual Setup and Programming (continued) Figure 5: DSE 2 Plus Output Tab The Output tab provides an interface to set all modulator output settings for the unit. A screenshot of this tab is shown above...
- Page 14 Instruction Manual Setup and Programming (continued) Figure 6: DSE 2 Plus System Tab The System Tab allows you to set a unique IP address for remote access and monitoring. Pressing the rear panel IP reset button will enable the default IP 172.16.80.1. The unique IP address previously set...
-
Page 15: Firmware Update
Instruction Manual Firmware Update Figure 6: DSE 2 Plus Firmware Update The Firmware Update tab allows you to update all of the firmware on the unit with a single upload (see Figure 6). Once you have received a new firmware image for the unit, click on the Choose File button and select the provided firmware;... - Page 16 DSE 2 PLUS | 16 Instruction Manual NOTES:...
- Page 17 DSE 2 PLUS | 17 Instruction Manual NOTES:...
-
Page 18: Service / If You Need To Call For Help
DSE 2 PLUS | 18 Instruction Manual... -
Page 19: Warranty
DSE 2 PLUS | 19 Instruction Manual... - Page 20 R.L. DRAKE HOLDINGS, LLC 9900 SPRINGBORO PIKE MIAMISBURG, OH 45342 USA SALES: 937.746.4556 800.777.8876 FAX: 937.806.1510 IN CANADA: 705 742-3122 844.372.5322 FAX: 705.742-2838 sales@rldrake.com sales@drakecanada.com SERVICE: 937.746.6990 FAX: 937.806.1510 servicehelp@rldrake.com www.rldrake.com www.drakecanada.com...
