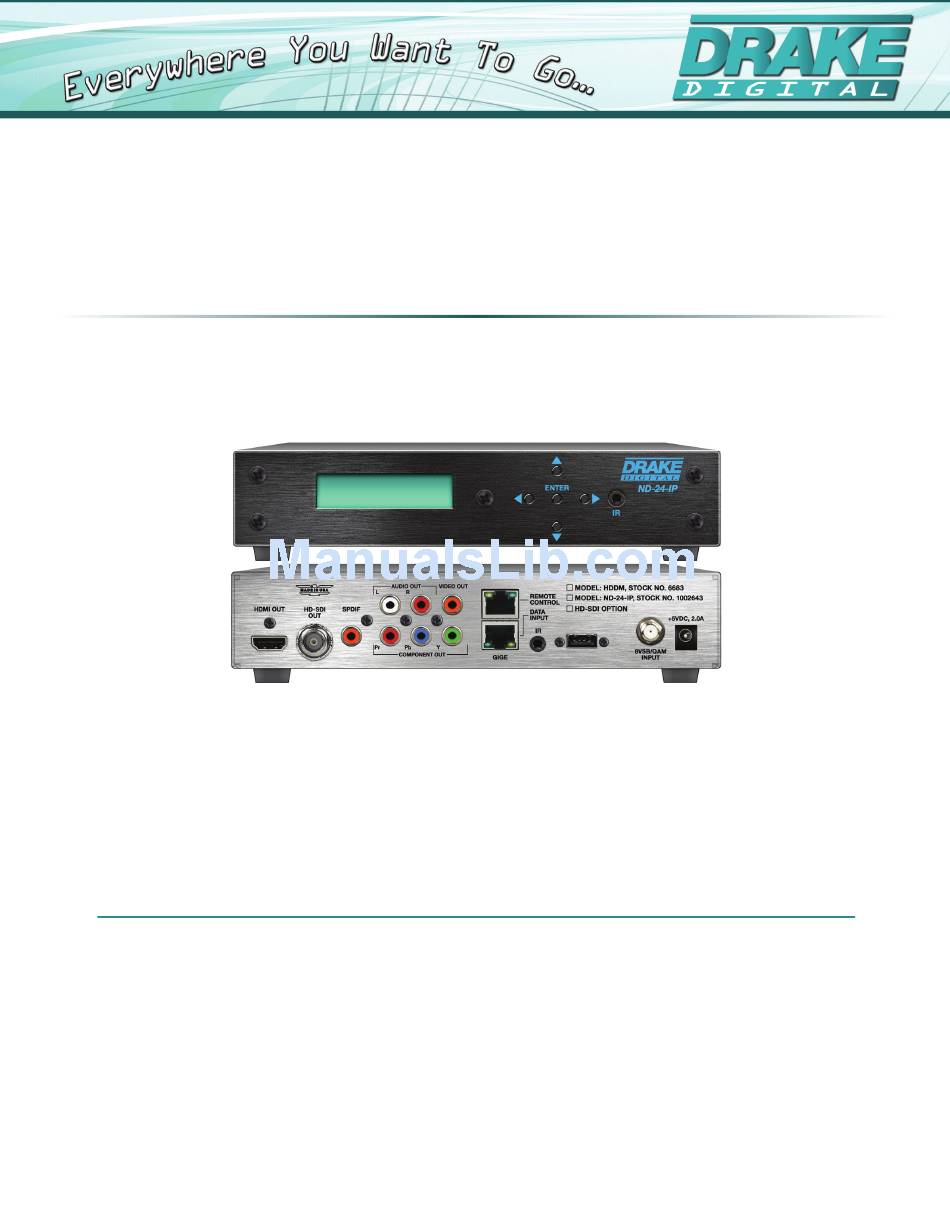

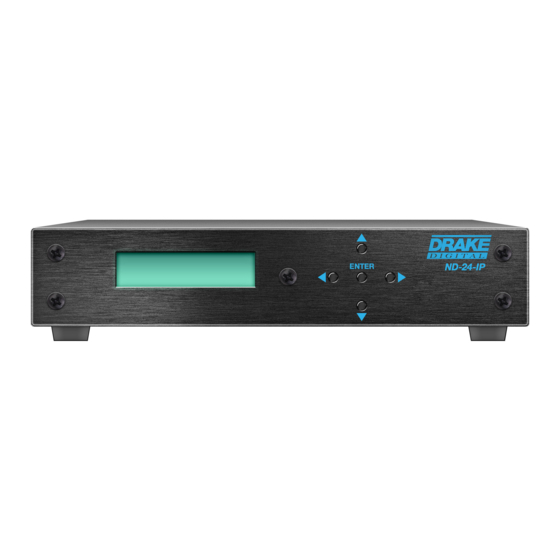

Network Decoder with HD-SDI, HDMI and Component Outputs
Model
ND-24-IP
ND-RP-2
ND-24-Zixi-LIC
© 2016 R.L. Drake Holdings, LLC.
ND-24-IP
INSTRUCTION MANUAL
Item #
Description
1002643
Network Decoder with SDI, HDMI and Component output
1002653
Rack Panel ND-24-IP
1002654
Zixi Link License Required for Point-to-Point Links
937-746-4556
www.rldrake.com
Rev: 102416 / 651242900A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DRAKE ND-24-IP
Summary of Contents for DRAKE ND-24-IP
- Page 1 Model Item # Description ND-24-IP 1002643 Network Decoder with SDI, HDMI and Component output ND-RP-2 1002653 Rack Panel ND-24-IP ND-24-Zixi-LIC 1002654 Zixi Link License Required for Point-to-Point Links 937-746-4556 www.rldrake.com © 2016 R.L. Drake Holdings, LLC. Rev: 102416 / 651242900A...
- Page 2 Reverse engineering or disassembly is prohibited. Manual Revision This is the first release of the instruction manual for ND-24-IP using a firmware release version of 1.0.6. For more information regarding product firmware releases, please visit our website at www.rldrake.com.
-
Page 3: Table Of Contents
Table of Contents GENERAL & SAFETY INFORMATION SAFETY INSTRUCTIONS & CAUTION STATEMENTS ......................4 GENERAL DESCRIPTION & FEATURES ..........................6 SPECIFICATIONS ..................................7 FRONT AND REAR PANEL OPERATION ..........................8 INSTALLATION & SETUP INSTALLATION & POWER-UP ..............................9 NETWORK SETTINGS ................................10 LOGIN SCREEN ..................................11 UNIT CONFIGURATION PLAYER CONTROL TAB ............................... -
Page 4: Safety Instructions & Caution Statements
Important Safety Instructions 1. Read Instructions—All the safety and operating instructions should be read before the product, be sure the antenna or cable system is grounded so as to provide some protection product is operated. against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and sup- 2. - Page 5 Importantes De Sécurité 1. Lire les directives—Toutes les directives de sécurité et d’utilisation devraient être lues aux électrodes de mise à la terre et les spécifications pour les électrodes de mise à la terre. avant de mettre l’appareil en opération. Voir la figure A.
-
Page 6: General Description & Features
Link license it can provide a point to point reliable IP video transport from anywhere in the world with an internet connection. The ND-24-IP can also be used in a point to multipoint application, where the ND-24-IP would decode the IP based Zixi protocol stream from a Zixi Broadcaster. -
Page 7: Specifications
Specifications ND-24-IP Network Decoder with HD-SDI, HDMI and Component outputs Item # 1002643 INPUT OUTPUT IP Mode 3G/HD/SD-SDI Connectors: RJ-45 Connectors: 1x BNC Standard: 100/1000Base-T Ethernet Standards: SMPTE 259M (3G), SMPTE 292 (HD) & SMPTE 259M (SD) UDP/RTP: Supported Video Resolution: 480i, 720p, 1080i, &... -
Page 8: Front And Rear Panel Operation
Front and Rear Panel Operation FRONT PANEL LCD Display: used for Network Settings Controls: used for Network Settings Infared Remote Control: not supported with firmware release v1.0.6 REAR PANEL HDMI Out: HDMI A/V Output HD-SDI Out: HD/SD SDI Output * SPDIF: S/PDIF Digital Audio Output Audio Out: Analog L+R Audio Output Video Out: Composite Analog Video Output *... -
Page 9: Installation & Power-Up
For safe and reliable operation, do not block airflow. Power-Up Plug the AC Adapter into the back of the ND-24-IP unit at the input marked "+5VDC, 2.0A" and then into an AC power plug (120 VAC – 60 HZ). www.rldrake.com... -
Page 10: Network Settings
Network Settings The ND-24-IP has two rear panel network ports labeled Remote Control and Data Input. These ports are configured through the front panel. Press 'ENTER' on the front panel and the following will appear. > Control (eth1) > Data (eth0) Select port you wish to configure with 'Up' 'Down' arrows. -
Page 11: Login Screen
Chrome or Firefox is recommended, for IE use IE11 minimum. Before you can communicate with the unit you must configure your computer's IP address to be on the same subnet as the ND-24-IP's Control IP address. To do so, follow these steps: Connect an Ethernet cable from your computer to the Control GigE port on the rear panel of the ND-24-IP. -
Page 12: Player Control Tab
Player Control Tab IP STREAM INPUT Figure 1 - "Player Control" - IP Stream Input Source Type: UDP Multicast Multicast Group: Specify Multicast Group Port: Specify port IGMP Version: IGMPv2 or IGMPv3. Only used for Multicast streams. Filter Method: Auto or Program Number. Auto program will select the first program in the PAT table. Program Number: Only used when Filter Method is by Program Number Submit new settings or Revert to original www.rldrake.com... -
Page 13: Zixi Push Input
Player Control Tab ZIXI PUSH INPUT (NOT SUPPORTED WITH FIRMWARE RELEASE v1.0.6) A Zixi Link License (Model: ND-24-Zixi-LIC; P/N: 1002654) is required for Point-to-Point Links over the public internet. Figure 2 - "Player Control" - Zixi Push Input Source Type: Zixi Push Zixi Port: specify Zixi Port Channel/Stream ID: must match either a PEG encoder ID for point to point or Zixi server stream ID for broadcast applications... -
Page 14: Digital Rf Channel
Player Control Tab DIGITAL RF CHANNEL Figure 3 - "Player Control" - Digital RF Channel Source Type: Tuner Channel: Selectable from 2 to 158 for CATV or from 2 to 69 for Broadcast Channel Plan: CATV-STD, CATV-IRC, CATV-HRC or Broadcast Modulation: QAM or 8VSB Program Selection: Auto or Program Number. -
Page 15: A/V Settings Tab
A/V Settings Tab Figure 4 - "A/V Settings" Tab Video Format: HDMI Auto, 1080p60, 1080p59 94, 1080p30, 1080p29 97, 1080i60, 1080i59 94, 720p60, 720p59 94, 480i60 or 480i59 94 Enable SD-SDI: Enable or Disable * *(1) Note - Current firmware allows for SD-SDI or composite video. When the video resolution is 480i and SD-SDI is set to "Enable", you'll get SD-SDI, but NOT composite. -
Page 16: System Info Tab
MAC address of the "Data Input" ethernet port. serial_number: Unit serial number. eth1_mac: MAC address of the "Remote Control" ethernet port. model_name: ND-24-IP build_info_debug: A value of 0 indicates production software. A non-zero value indicates a testing / engineering software release. -
Page 17: Log Tab
Log Tab Figure 6 - "Log" Tab (Read-Only) www.rldrake.com 937.746.4556 |... -
Page 18: Update Tab
Update Figure 7 - "Update" Tab Firmware File: download firmware update file and select Upload File: press to initiate firmware update www.rldrake.com 937.746.4556 |... - Page 19 Notes: www.rldrake.com 937.746.4556 |...
- Page 20 Notes: www.rldrake.com 937.746.4556 |...
- Page 21 Notes: www.rldrake.com 937.746.4556 |...
-
Page 22: Service
Please perform whatever steps are applicable from the product’s Instruction Manual before calling or writing as this could save unnecessary phone charges. Please do not return the product without calling Drake Service and following the steps above first;... -
Page 23: Warranty
Blonder Tongue Laboratories, Inc. Limited Warranty Limited Warranty Blonder Tongue Laboratories, Inc. (BT) will at its sole option, either repair or replace (with a new or factory reconditioned product, Seller will at its sole option, either repair or replace (with a new or factory reconditioned product, as Seller may determin e) any product manufactured or sold (or in as BT may determine) any product manufactured by BT which proves to be defective in materials or workmanship or fails to Blonder Tongue Laboratories, Inc. - Page 24 R.L. DRAKE HOLDINGS, LLC Sales: 937-746-4556 • Support: 937-746-6990 • Fax: 937-806-1510 www.rldrake.com...
