Summary of Contents for DRAKE DAV860

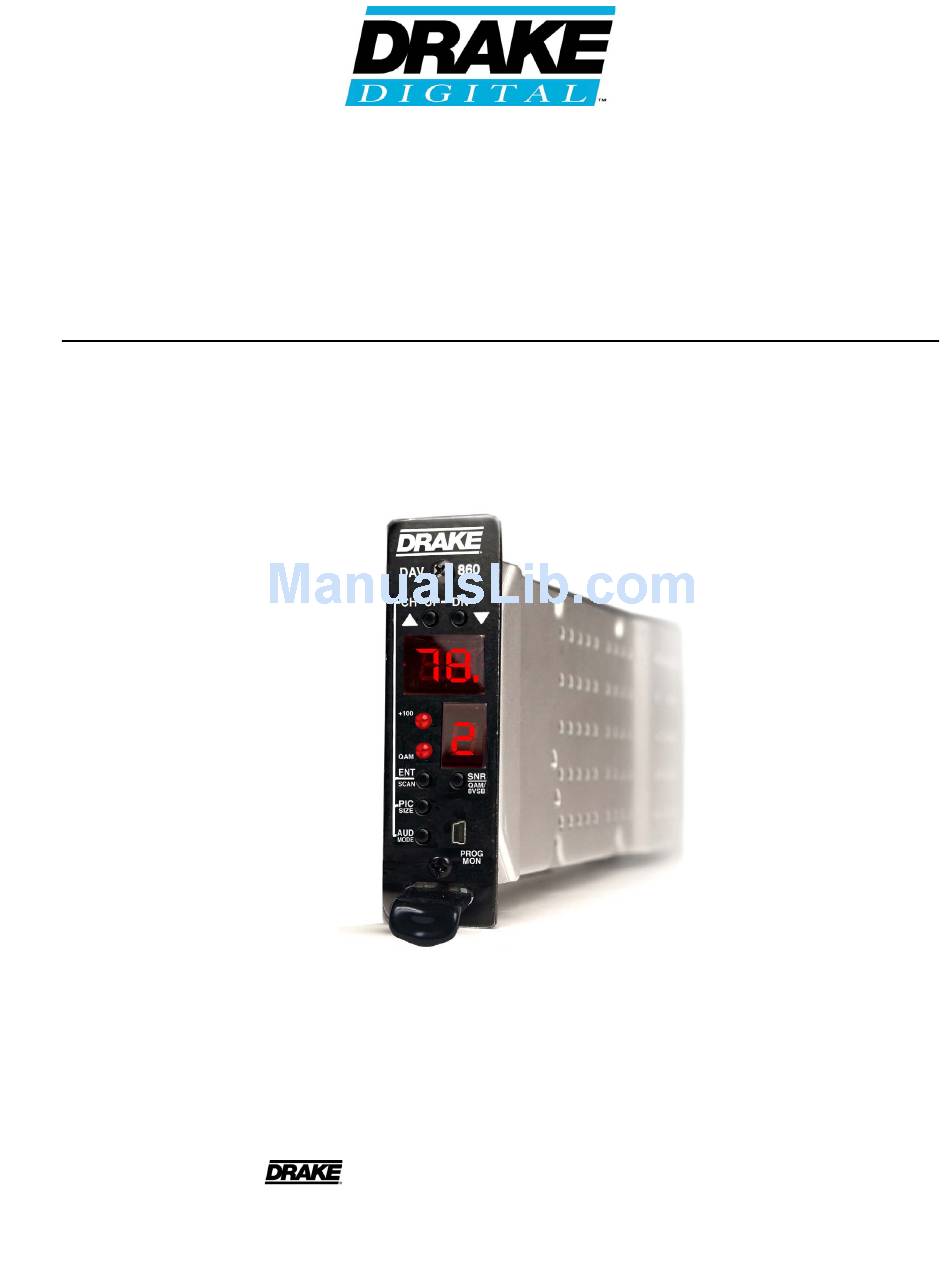

- Page 1 DAV860 Digital Decoder Instruction Manual is a registered trademark of the R.L. Drake Holdings LLC P/N: 651229900A © Copyright 2012 R. L. Drake Holdings, LLC Printed in China. Rev: 201201026 1002574...
-
Page 2: Caution Statements
Table of Contents, Caution, & Important Safety Instructions CAutioN StAtemeNtS .............................2 imPoRtANt SAfety iNStRuCtioNS ......................2 SPeCifiCAtioNS ..............................4 fRoNt PANeL CoNtRoLS ..........................5 oPeRAtioN ................................8 WARRANty ................................9 Caution Statements: A product and cart combination should be moved WARNING: to PReVeNt fiRe oR with care. -
Page 3: Important Safety Instructions (Continued)
Important Safety Instructions (continued) Accessories: Do not place this product on an unstable cart, stand, tripod, bracket, or table. the product may fall, causing serious injury to a child or adult, and serious damage to the product. use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. -
Page 4: Specifications
Specifications INPUT Connector: "f" female Standards: 8VSB: AtSC Digital television Standard A/53e QAM: itu-t J.83 (64 and 256 QAm) 8VSB Mode: Tuning Range: uHf (NtSC Ch. 14 - 78), VHf (NtSC Ch. 2 - 13) Symbol Rate: 10.762 msymbols/sec Bandwidth: 6 mHz QAM Mode: Tuning Range:... -
Page 5: Front Panel Controls And Indicators

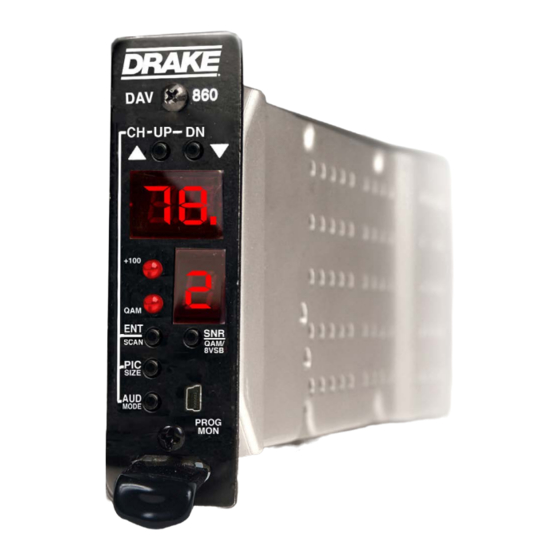

Front Panel Controls & Indicators [ 1 ] [ 2 ] [ 3 ] [ 5 ] [ 4 ] [ 6 ] [ 7 ] [ 10 ] [ 8 ] [ 9 ] [ 11 ] [ 1 ] (CH-UP) button: increments major channel or minor channel to next higher channel in the database. - Page 6 IT IS RECOMMENDED TO USE AFD OR CENTER CUT FOR MAxIMUM SCREEN USAGE WHEN CONVERTING 16:9 ASPECT RATIO SIGNALS FOR VIEWING ON 4:3 TELEVISIONS, WHICH IS THE INTENDED USE OF THE DAV860.
- Page 7 Front Panel Controls (continued) [9] AUD MODE button: When pressed, the 2-digit LeD will display ‘Au’. the 1-digit display will show the current audio mode. each additional press of the AUD MODE button will change the mode. the display will blink to indicate audio mode is in selection and has not been entered.
-
Page 8: Operation
[5] Alerts: the DAV860 has 7 alerts to indicate a non-typical condition or error in operation. the 1-digit LeD will display ‘e’. the 2-digit LeD will display the condition number ‘01’ thru ‘07’, as described below. -
Page 9: Three-Year Limited Warranty
Warranty Three year Limited Warranty R.L. DRAKe HoLDiNGS LLC warrants to the original purchaser this product shall be free from defects in material or workmanship for three (3) years from the date of original purchase. During the warranty period R.L. DRAKe HoLDiNGS LLC or an authorized Drake service facility will provide, free of charge, both parts and labor necessary to correct defects in material and workmanship. - Page 10 10 Notes...
- Page 11 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 12 R.L. Drake Holdings LLC 9900 Springboro Pike miamisburg, ohio 45342. uSA Customer Service and Parts Telephone: +1 (937) 746-6990 Telefax: +1 (937) 806-1576 Web Site: http://www.rldrake.com...
