- Page 1 Closed Captioning Instruction Manual is a registered trademark of the R.L. Drake Holdings LLC © Copyright 2013 R.L. Drake Holdings LLC P/N: 651228200A Printed in the USA. Rev: 20130411 1002571...
-
Page 2: Table Of Contents
Table of Contents, Caution, & Important Safety Instructions CAutioN StAtemeNtS .............................2 imPoRtANt SAfety iNStRuCtioNS ......................2 SPeCifiCAtioNS ..............................4 GeNeRAL DeSCRiPtioN ...........................5 iNStALLAtioN AND mouNtiNG / fRoNt PANeL CoNtRoLS ..............6 ReAR PANeL CoNtRoLS ...........................7 SoftwARe fLow CHARt ..........................8 SetuP AND PRoGRAmmiNG ..........................9 oPeRAtiNG iNStRuCtioNS ..........................12 ADDitioNAL iNfoRmAtioN ..........................14 CAtV CHANNeL fRequeNCieS ........................15... - Page 3 Important Safety Instructions (continued) Accessories: Do not place this product on an unstable cart, stand, tripod, bracket, or table. the product may fall, causing serious injury to a child or adult, and serious damage to the product. use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product.
-
Page 4: Specifications
Specifications INPUT Video: VGA (with pass-through to monitor) HDmi (unencrypted) Componen t (y-Cr-Cb) Composite via y input for 480i Resolution: 480i, 480p, 720p, 1080i video Audio: L-R baseband audio, dual RCA. S/PDif optical audio, 32 kHz-192 kHz sample rate PCm. HDmi embedded audio, 32 kHz - 192 kHz sample rate PCm. -
Page 5: General Description

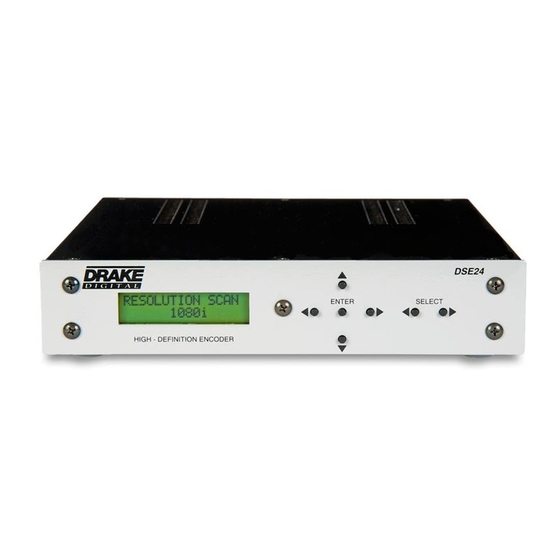

DSe24 is housed in a convenient table top package. using the optional 19” rack mounting panel, one or two DSe24s can be rack mounted in just 1Ru of height. the DSe24 accepts analog high definition or standard definition video input via component, VGA, or composite inputs. -
Page 6: Installation And Mounting / Front Panel Controls
Connect the external power supply to an appropriate source of 120 volt, 50/60 Hz AC power, and connect the power supply output to the rear panel DC power jack. the DSe24 is always on once the AC power cord is connected to its power source. -
Page 7: Rear Panel Controls
R8, HDMI CONNECTOR - this connector provides the means to input HDmi video (without HDCP) and encoded audio. R9, ETHERNET CONNECTOR - this connector provides the means to connect the DSe24 to an ethernet local area network for remote control, monitoring, and/or firmware update. it is not recommended that this port be connected directly to a wide-area network without external access controls, like a VPN or firewall. -
Page 8: Software Flow Chart
8 Software Flow Chart... -
Page 9: Setup And Programming
Setup and Programming Programming and viewing of the various setup and line of the display begins to flash. operating parameters is accomplished using the front After you are in the program mode (bottom line of screen panel back lit, two line, sixteen character wide LCD flashing) use the Left and RiGHt arrows to navigate along with the two Left and RiGHt ‘SeLeCt’... - Page 10 10 Setup and Programming (continued) BRIGHTNESS, CONTRAST, SATURATION and HUE: these menu items allow the user to assign the brightness, Contrast, and Saturation parameters of the output video values from 0 to 255 with 128 being the default. the range and default values for Hue depends on the ViDeo iNPut mode. if Composite is selected, the range is 0 to 255.
- Page 11 15 cursor positions available. MAC ADDRESS: this menu item allows the user to view the mAC ADDReSS of the DSe24. this may be useful when debugging network connectivity issues. wARNiNG: Do not change. if necessary to reenter, see the label on the unit for proper mAC address.
-
Page 12: Operating Instructions
Allow approximately 10 seconds for bootup. Note that 14 Press RiGHt arrow button and observe outPut LeVeL. the DSe24 will be in the oN state whenever power is applied. Choose desired Rf out level. 4) from the front panel, use the uP, DowN, Left, RiGHt, 15) Press RiGHt arrow again. - Page 13 DSe24 front panel. At the top of the display you will have been successfully saved. this screen also contains note that the status of the audio and video along with instructions for reconnecting to the DSe24 in the event the currently selected resolution are shown.
-
Page 14: Additional Information
REMOTE CONTROL MONITORING the DSe24 may be used with a PC to allow remote monitoring or control. Connect the ethernet cable coming from the PC or router to the ethernet rear panel connector. Assign a uSeR NAme, and PASSwoRD to the DSe24 using the front panel controls as described previously. -
Page 15: Catv Channel Frequencies
CATV CHANNEL FREQUENCIES Table 1: CATV... -
Page 16: Broadcast Tv And T Channel Frequencies
CATV CHANNEL FREQUENCIES... -
Page 17: Service / If You Need To Call For Help
R.L. DRAKe will pay the cost of the return shipment to you. our return shipping policy is that we will return it uPS brown if received brown or by uS mail, it will be returned blue if received blue or Red—or it will be returned however you prefer if you furnish the return cost for the... - Page 18 R.L. DRAKe if we have all the facts. if we must call you, it may take longer. R.L. DRAKe is not responsible for damage caused by lightning, nonprofessional alterations, “acts of God”, shipping damage, poor storage/handling, etc.
-
Page 19: Warranty
Warranty Three Year Limited Warranty R.L. DRAKe HoLDiNGS LLC warrants to the original purchaser this product shall be free from defects in material or workmanship for three (3) years from the date of original purchase. During the warranty period R.L. DRAKe HoLDiNGS LLC or an authorized Drake service facility will provide, free of charge, both parts and labor necessary to correct defects in material and workmanship. - Page 20 R.L. Drake Holdings LLC 710 Pleasant Valley Drive Springboro, ohio 45066. uSA Customer Service and Parts Telephone: +1 (937) 746-6990 Telefax: +1 (937) 806-1510 Web Site: http://www.rldrake.com...
