Summary of Contents for DRAKE DUC864A
- Page 1 DUC864A Digital Up-Converter INSTRUCTION MANUAL Model Item # Description DUC864A 1002387A Digital Up-Converter 800-523-6049 www.rldrake.com © 2015 R.L. Drake Holdings, LLC. Rev: 072820 / 651239900A...
- Page 2 REAR PANEL CONNECTIONS ..................................7 GENERAL DESCRIPTION....................................6 ETHERNET ACCESS....................................... 8 FEATURES........................................6 SETUP AND PROGRAMMING ................................... 10 INSTALLATION AND MOUNTING ................................6 Caution Statements FIRMWARE UPDATE....................................15 REAR PANEL CONNECTIONS ..................................7 SERVICE / IF YOU NEED TO CALL FOR HELP ............................18 ETHERNET ACCESS.......................................
- Page 3 11. Power Sources: This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the product's operating instructions.

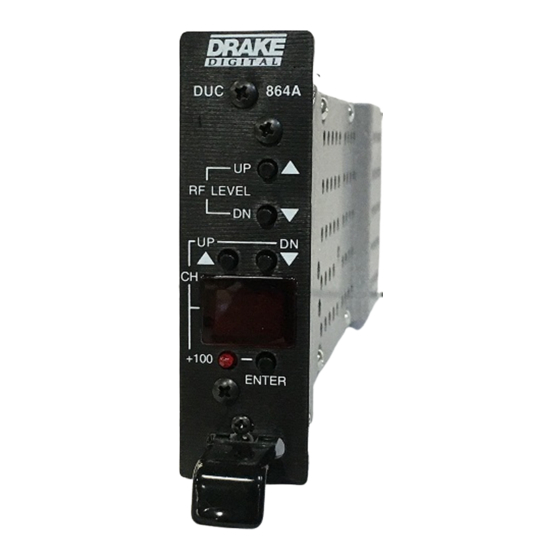

- Page 4 General Description and Specifications The R.L. Drake DUC864A is a low noise upconverter used to translate the 44 MHz digital IF signal from a QAM or VSB modulator, DDC downconverter, or other similar equipment to the desired CATV or off-air output channel. A single model covers the entire 54 to 860 MHz output range.
- Page 5 Programming the Unit The DUC864A unit is intended to accept any digital IF signal and process it to any channel from 54-864 MHz. The unit has 4 valid operating modes, STD CATV, IRC, HRC & Broadcast UHF/VHF. It comes factory set to operate in Standard CATV Mode.
- Page 6 Operating Mode Selection The unit has 4 valid operating modes: STD CATV, IRC, HRC & Broadcast UHF/VHF. The DUC864A unit comes factory set to operate in the Standard CATV mode. TO CHANGE THE OPERATING MODE 1. Simultaneously depress the RF Level UP or DN buttons for approximately 5 seconds.
- Page 7 Appendix A Appendix B Output Output Center Frequencies Center Frequencies VHF Broadcast Channels Standard Incremental Harmonic Standard Incremental Harmonic Channel (MHz) CATV Chan. CATV Chan. (IRC) (HRC) (IRC) (HRC) 457.75 55.75 463.75 61.75 469.75 67.75 475.75 73.75 481.75 79.75 487.75 85.75 493.75 91.75...
- Page 8 (c) A detailed description of the problem, including details on the electrical connection to associated equipment and the list of such equipment. (3) Deliver the product to the R.L. DRAKE LLC or the nearest authorized service facility, or ship the same in its original container or equivalent, fully insured and shipping charges prepaid.
