Install the Riser Bar
1. If appropriate to your installation (see pg. 8),
position the riser bar centered within the fire-
place as shown in fig. 10. The forward ends of the
Riser Bar should be aligned within 1/2 inch of the
fireplace face.
Install the Firebox
1. With the help of an assistant, slide the Firebox
into the fireplace cavity. If using a Riser Bar, the
Firebox must be engaged with the Riser by means
of the Locking Pin included in the hardware bag.
Pull the Left Blower forward out of the way to
access the Locking Pin hole in the firebox floor.
See figs. 10 and 11. When the front edge to the
firebox is aligned with the front edge of the Riser,
the Locking Pin hole will be aligned with the slot
in the top of the Riser Bar crossmember. Insert the
Locking Pin and pull the firebox out slightly proud
of the fireplace face to facilitate attaching the
surround panels. Relocate the blower.
Locking Pin Slot

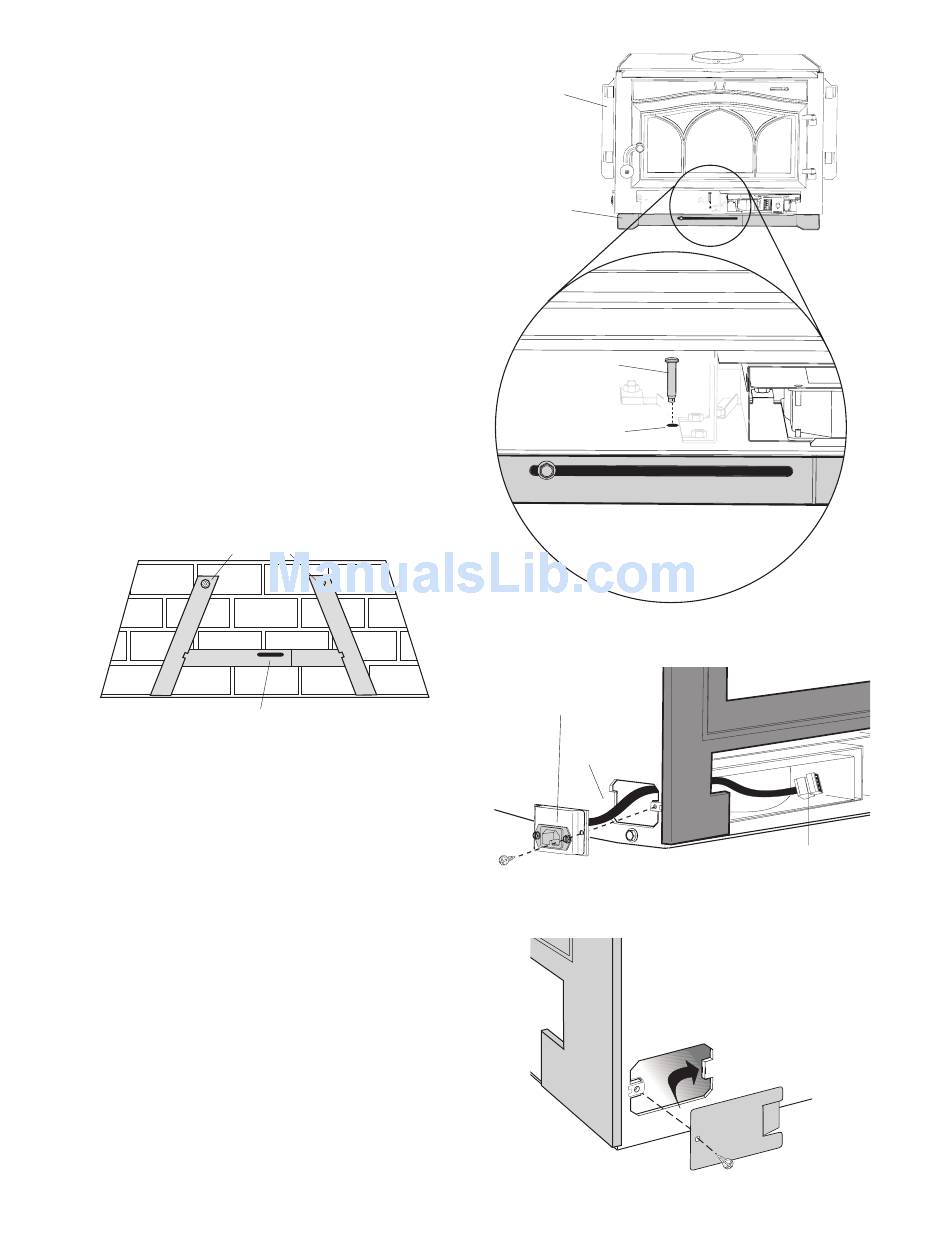

Figure 10. Riser Bar placement.
2. Secure the flue connector to the firebox flue collar
using three 1/4" x 3/4" self-tapping screws.
3. Determine to which side the blower power cord
will be routed. Insert the AC power receptacle lead
through the appropriate inlet in the side of the
firebox. See fig. 12. Remove the #8 x 5/8" phillips
screw already in place and engage the receptacle
bracket with the tab in the inlet opening. Reinstall
the screw.
4. Plug the male quick-connector on the end of the
lead into the corresponding female connector on
the blower wire harness.
5. Plug the power cord into the receptacle.
6. Install the inlet coverplate over the inlet opening
on the other side of the firebox using the pre-
installed #8 x 5/8" screw. Fig. 13.
12
Levelling Bolts
Surround
Bracket
L
Riser Bar
Locking Pin
Hole
Figure 11. Insert Riser Bar Locking Pin.
AC power receptacle
harness assembly
Inlet Tab
#8 x 5/8
Phillips
screw
Figure 12. AC power receptacle lead routing.
Figure 13. Receptacle Inlet Coverplate installation.
R
Male Quik-Connect
#8 x 5/8
Phillips
screw
