Installation
1. Remove the existing damper and linkage compo-
nents from the fireplace. Alternatively, you can
wire the damper plate to lock it in the open
position. Thoroughly clean the firebox and
smokeshelf area with a wire brush.
2. If the fireplace has been modified to accommo-
date installation, use anchors or masonry nails to
attach the metal Fireplace Conversion Notice
Plate (PN 220508) to the back wall of the masonry
fireplace firebox where it will be readily seen
should the insert be removed.
3. Install the Flex Connection plate according to the
manufacturer's instructions. The sealing plate
may require trimming to accommodate your
specific fireplace damper.
Masonry or Listed
HT Prefabricated
Chimney Cap
Damper linkage
removed and
plate is removed
or locked open

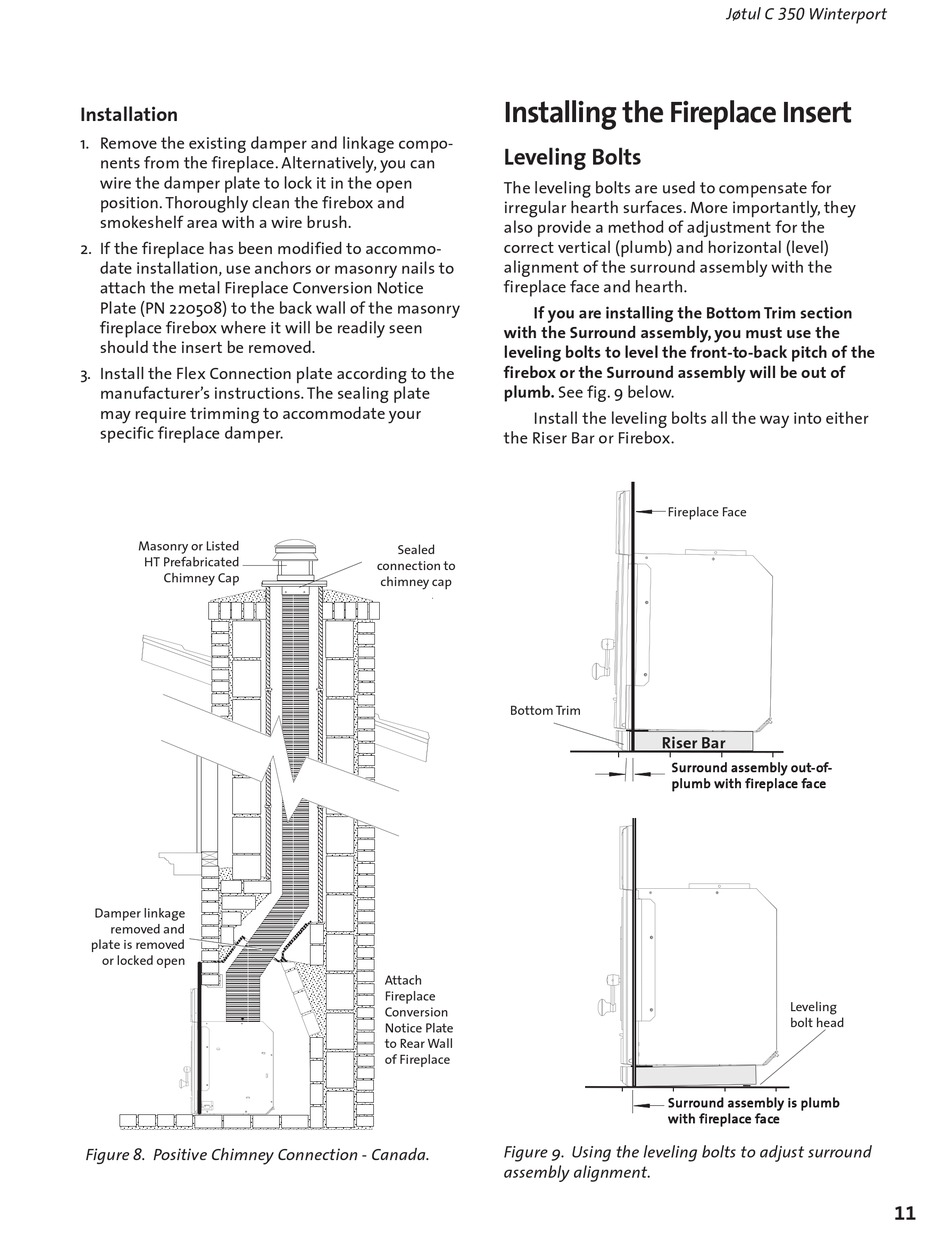

Figure 8. Positive Chimney Connection - Canada.
Installing the Fireplace Insert

Leveling Bolts

The leveling bolts are used to compensate for
irregular hearth surfaces. More importantly, they
also provide a method of adjustment f0r the
correct vertical (plumb) and horizontal (level)
alignment of the surround assembly with the
fireplace face and hearth.
If you are installing the Bottom Trim section
with the Surround assembly, you must use the
leveling bolts to level the front-to-back pitch of the
firebox or the Surround assembly will be out of
plumb. See fig. 9 below.
Install the leveling bolts all the way into either
the Riser Bar or Firebox.
Sealed
connection to
chimney cap
Bottom Trim
Attach
Fireplace
Conversion
Notice Plate
to Rear Wall
of Fireplace
Figure 9. Using the leveling bolts to adjust surround
assembly alignment.
