Jøtul C 350 Winterport Installation Manual

This guide is only intended for use
on-site as a quick reference tool.
Final installation must conform to
all of the requirements specified in
the Installation Manual included
with each unit and also available
at www.jotul.us.

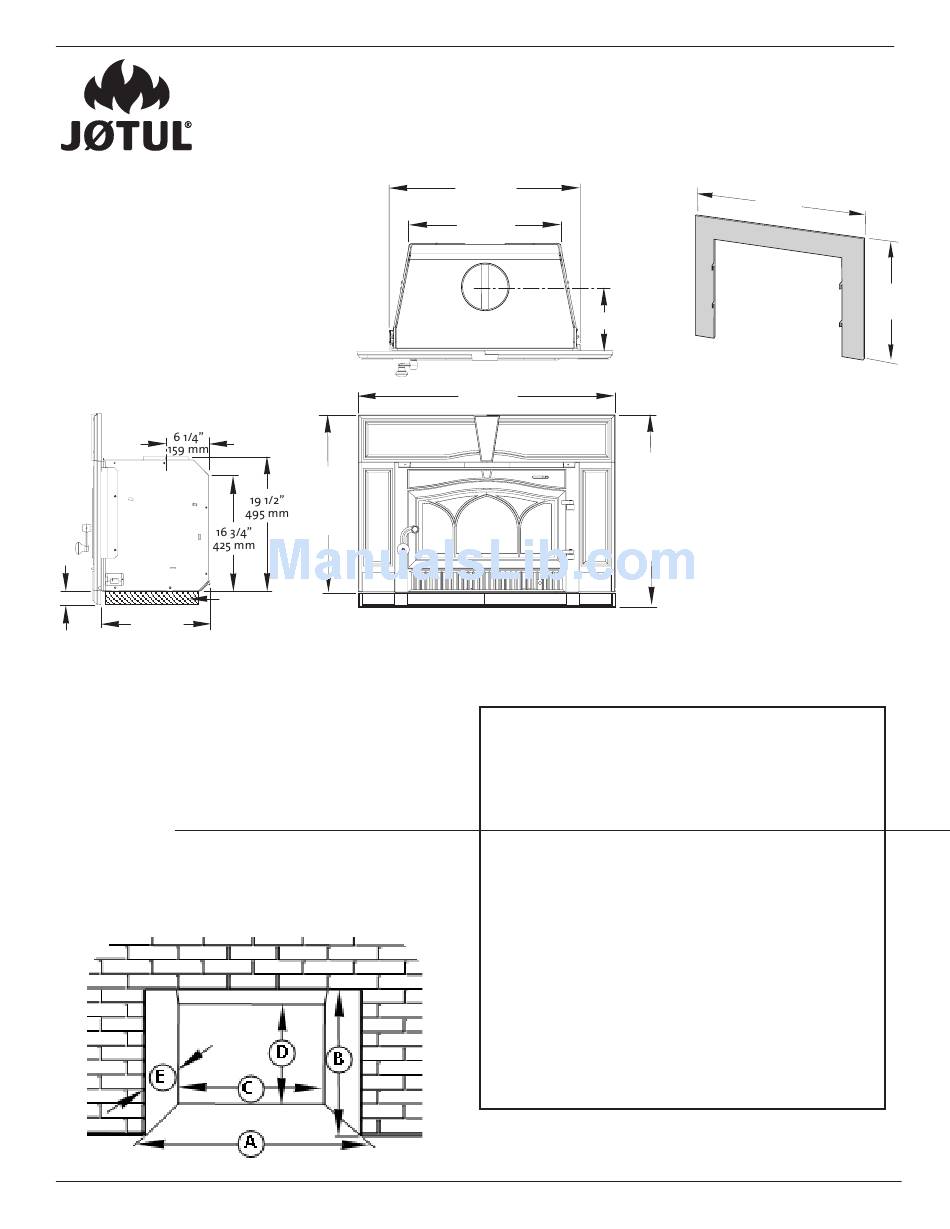

Fig. 1.
Riser Bar
2" 51 mm
16”
406 mm

Minimum Fireplace Dimensions

A - Opening Width* = 32" (813mm)
B - Opening Height** = 19 1/2" (495mm)
C - Rear Width = 22 3/4" (577mm)
D - Rear Height** = 16 3/4" (425mm)
E - Depth = 16" (406mm)
* NOTE: Width dimension accommodates
clearance for Surround attachment and blower
power cord routing.
** Add 2" (51 mm) for use with optional Riser Bar.
Fig. 2.
Fireplace Insert Hearth Guide and Template
C 350 Winterport
25 1/4”
641 mm
without
Riser Bar
27 3/4”
704 mm
22 1/2”
572 mm
9 1/2”
241 mm
37”
940 mm
27 1/4”
692 mm
with
Riser Bar
Bottom
Surround
Trim
Make a Footprint Template -
C 350 Winterport
Materials:
Foam Core or Cardboard
Utility Knife Tape Measure
1. Trim the board to a rectangle measuring
27 3/4" x 16 1/2". (704mm x 419mm)
2. Draw a centerline at 13 7/8" (352mm).
3. Mark the rear corners at 11 3/8" (289mm) to
the left and right of center.
4. Measure and mark 3" (76mm) from the
front corners on each side. Draw a cut-line from
those marks to the rear corner marks and trim
the sides along those cut-lines.
5. Tape this instruction sheet to the template for
future reference.
40 ”
1016 mm
Steel
Wide Surround Panel
For use with Riser Bar
30”
762 mm
Optional Surrounds
• Steel Wide Surround,
40"x 30"
Matte Black - 156055
• Trimable Surround,
37" x 25 1/2" for
Z-C fireplaces -157326
Straight Edge
Marker
