Summary of Contents for Withings The Smart Blood Pressure Monitor

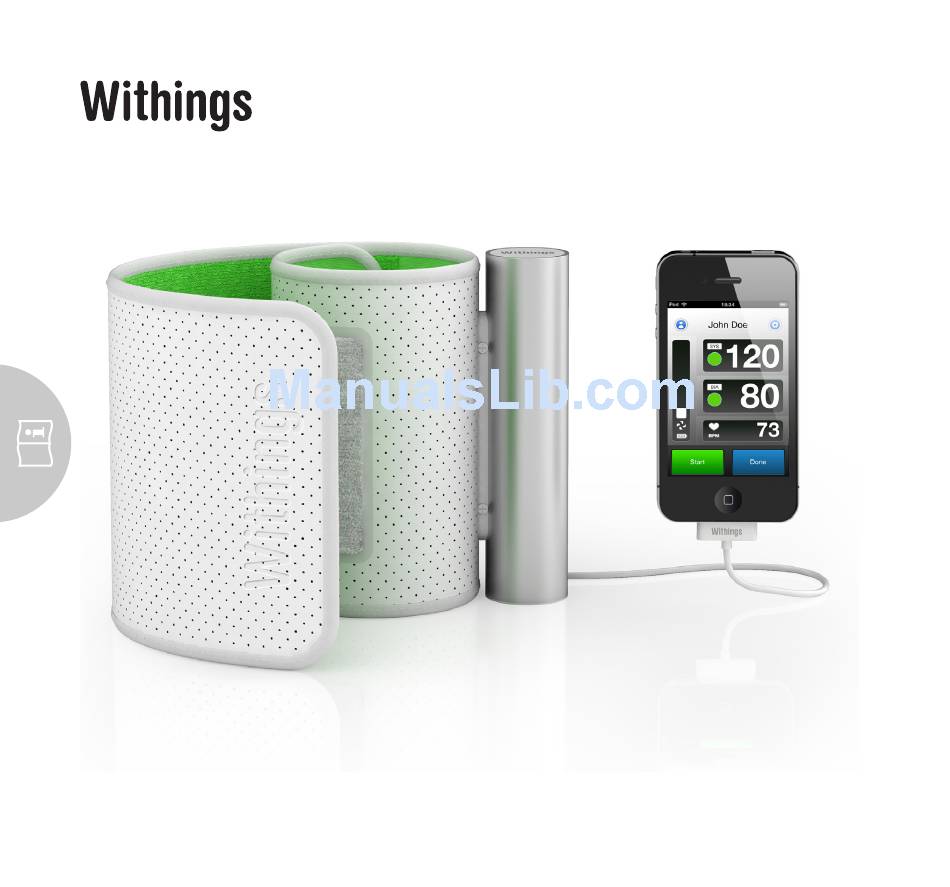

  • Page 1 The Smart Blood Pressure Monitor Instruction manual...

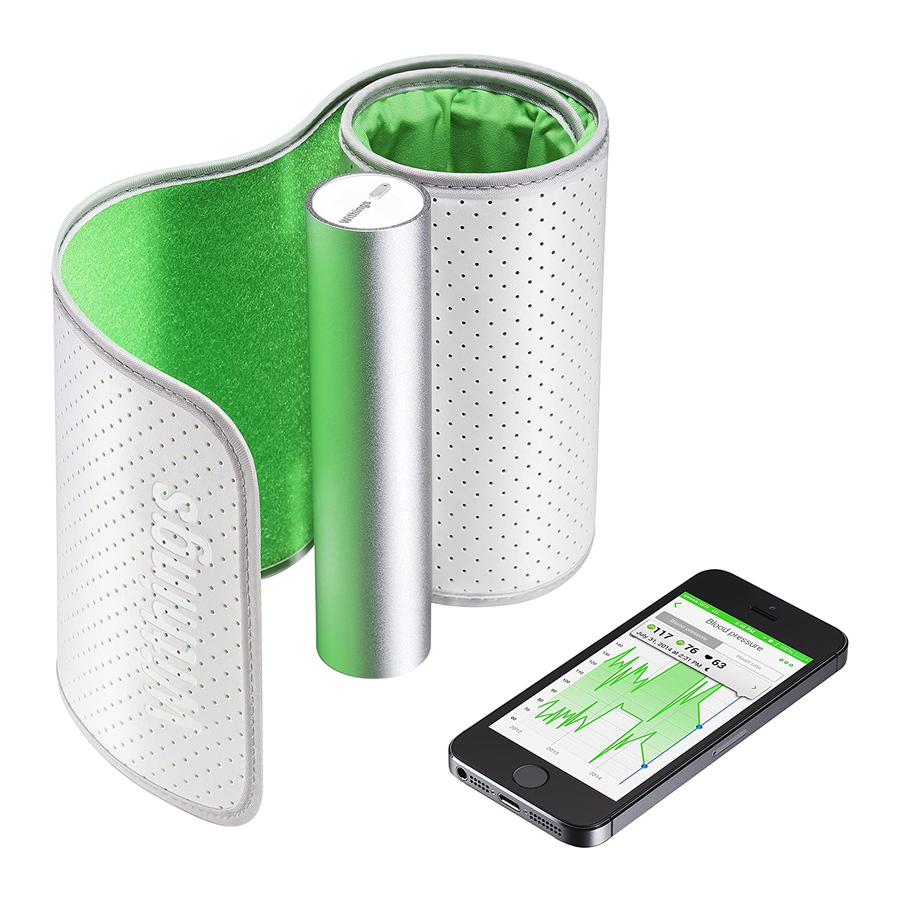

  • Page 3 Read this manual before use. Keep it for future reference. Thank you for purchasing the Withings Blood Pressure Monitor. The Withings Blood Pressure Monitor is a fully automatic blood pressure monitor, operating on the oscillometric principle. It measures your blood pressure and pulse rate simply and quickly.
  • Page 5: Table Of Contents

    Contents Requirements ................6 Package Contents .
  • Page 6: Requirements

    Requirements In order to use your Withings Blood Pressure monitor, you need to plug it to an iPhone, iPad or iPod Touch (updated to iOS 3 or higher). Package Contents • Withings Blood Pressure Monitor • Four AAA alkaline (LR3) cells (already inserted) Important Safety Information Consult your doctor during pregnancy, arrhythmia and arteriosclerosis.
  • Page 7: Intended Use

    Intended use The device is a digital monitor intended for use in measuring blood pressure and pulse rate in adult patient population with arm circumference ranging from 9 inches to 17 inches (22cm- 42cm). This device is not intended to be a diagnostic device. Contact your physician if hypertensive values are indicated.
  • Page 8: General Safety And Precautions

    • Do not immerse the arm cuff in water Replacing the AAA alkaline cells If the low battery symbol appears in the Withings application, replace all four AAA alkaline cells at the same time. 1. Remove the AAA alkaline cells cover at the lower end of the aluminum tube.
  • Page 9: Name/Function Of The Components

    Name / Funtion of the components Fig. 2...
  • Page 10: About Blood Pressure

    About Blood Pressure Blood pressure (BP) is the pressure exerted by circulating blood upon the walls of blood vessels, and is one of the principal vital signs. During each heartbeat, BP varies between a maximum (systolic) and a minimum (diastolic) pressure. The mean BP, due to pumping by the heart and resistance to flow in blood vessels, decreases as the circulating blood moves away from the heart through arteries.
  • Page 11 > 85 mmHg How can I tell how high my blood pressure is ? The Withings application displays measurement results (including systolic blood pressure, diastolic blood pressure, and pulse) based on World Health Organization (WHO) classification of blood pressure levels. The color-coded displays provide a convenient way of gauging the condition of your blood pressure.
  • Page 12: How To Measure Your Blood Pressure Correctly

    How to measure your blood pressure correctly Before taking a reading, you should sit still for around 10 minutes, and you should wait 1 minute between each reading. While taking a measurement, remain sitted and stay calm and relaxed. You should also try not to talk. This should improve the accuracy of readings. Correct posture Rest your left arm on a table and relax your arm Correct cuff placement...
  • Page 13: Getting Ready

    In order to measure your blood pressure, follow these steps : 1. Unlock your iOS device. (fig. 3) 2. Plug the Withings Blood Pressure Monitor connector to your iOS device. (fig. 3) 3. The Withings application will automatically launch and display quickstart instructions (fig.
  • Page 14: Begin To Measure, Taking And Storing A Reading

    Fig. 4 Begin to measure, taking and storing a reading 1. On the measurement screen (fig. 5), touch the «start» button to launch the measurement. Fig. 5 The blood pressure monitor is designed to take measurements and store the measurement values in the memory of the device (iPhone, iPad or iPod Touch).
  • Page 15: Using The Single Mode

    Using the single mode • On the measurement screen (fig 5.) press the «Start» button. The cuff starts to inflate auto- matically. As the cuff inflates, the blood pressure monitor automatically determines your ideal inflation level. This blood pressure monitor detects the pulse during inflation. Do not move your arm and remain still until the entire measurement process is completed. Note : To stop the inflation or measurement, touch «Stop»...
  • Page 16 Note : To stop the inflation or measurement, press and release the « Stop » button. The blood pres- sure monitor will stop inflating and start deflating. • Inflation stops and the measurement is started. As the cuff deflates, the heartbeat symbol flashes at every heartbeat. • When the measurement is complete, the arm cuff completely deflates. • After the selected interval, a second and a third measurement will start. • Your average blood pressure is displayed. • Press « OK » at the end of a measurement to see your results in advanced mode. Rotate your device to display your graphs. Notes •...
  • Page 17: Looking At Previous Readings

    Looking at previous readings In order to access your historical data and graphs (fig. 7), open the Withings application with- out plugging your Withings Blood Pressure Monitor to your iOS device. The advanced results will show-up in portrait mode and your historical graphs will show-up in landscape mode.
  • Page 18: After Use

    After Use Cleaning • Do not use an alcoholic-base or solvent agent to clean the device. • Clean the device with a soft, dry cloth. • The dirt on the cuff can be cleaned by a moisten cloth and soap . • Do not flush the device and cuff with much water • Do not dismantle the device or disconnect the cuff or try to repair by yourself. If any problem happens, refer to the distributor. • Do not operate the device under severe environment of extreme temperature or humidity, or direct sunshine. • Do not shake the unit violently. Storage • If you are not using the device for an extended period, remove the alkaline cells from the aluminium tube for storage.
  • Page 19: Error Messages

    Error messages Error messages Coutermeasures Measurement could not be performed. 1- Measurement could not be performed. Please try again. If the problem occurs again, Please try again. If the problem occurs again, please contact customer service. please contact customer service. Unplug the Blood Pressure Monitor.
  • Page 20: Troubleshooting

    Low battery level. Unplug the Blood Pres- 1- Low battery level. Unplug the Blood Pres- sure Monitor. Replace the alkaline cells. sure Monitor. Replace the alkaline cells. 2- If the problem occurs again, please con- tact customer service. Troubleshooting Problem Remedy Though the batteries are installed, there is 1.
  • Page 21: Specifications

    Specifications Technical data Product description: Digital automatic Blood Pressure Monitor Model: BP-800 Measurement method: Cuff oscillometric method Cuff inflation: Automatic inflation with air pump at 15 mmHg/s Prssure sensor: Gauge sensor Measurement range (pressure): 0 to 285 mmHg Measurement range (pulse): 30 to 200 beats/min Accuracy (pressure): Within +- 3 mmHg or 2% of reading Accuracy (pulse): Within +- 5% of reading Sensor: Semicoductor pressure sensor...
  • Page 22: Reference To Standards

    Reference to Standards COUNCIL DIRECTIVE 93/42/EEC of 14 June 1993 concerning medical devices. This device complies with the following normative documents : • IEC60601-1: 2005 + CORR. 1 (2006) + CORR. 2 (2007) • EN60601-1: 2006; ANSI/AAMI ES60601-1: 2005:Medical Electrical Equipment - Part 1: General requirement for basic safety and essential performance • EN1060-1: 1995 with Amendment A2: 2009:Non-invasive sphygmomanometer, Part 1: Gen- eral requirements • EN1060-3: 1997 with Amendment A2: 2009:Non-invasive sphygmomanometers, Part 3: Sup- plementary requirements for electro-mechanical blood pressure measuring systems • EN55011: 2007 + A2: 2007; EN60601-1-2: 2007; FCC 47 CFR PART 18: Electromagnetic Com- patibility • ANSI/AAMI SP10:2002Manual, electronic, or automated sphygmomanometers; safety and...
  • Page 23: Eu Representative

    EU Representative Withings SAS 37 bis rue du Général Leclerc 92442 Issy-les-Moulineaux Cedex France US Representative Withings Inc.
  • Page 24 Manual version: 1.9 — March 24, 2011 © 2011 Withings. All right reserved. iPhone, iPad and iPod touch are trademarks of Apple inc.
