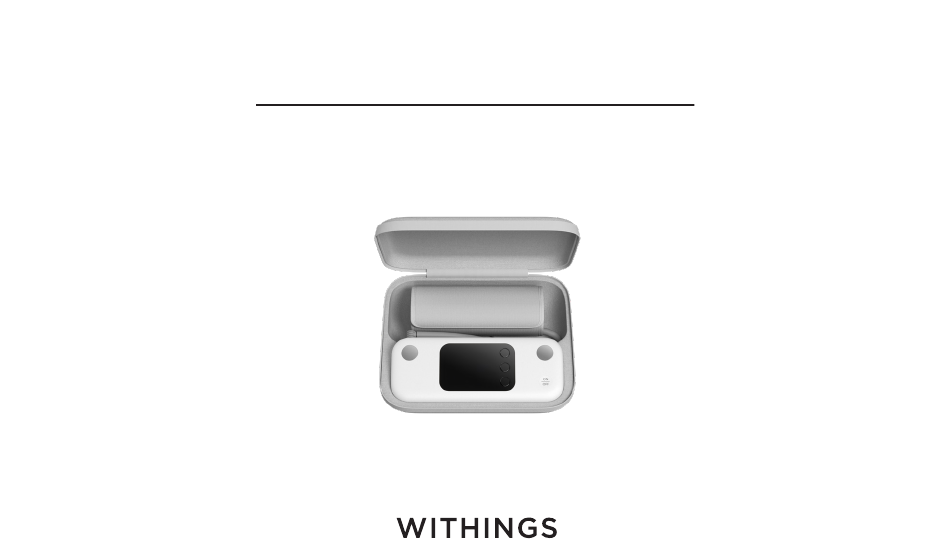

PRODUCT GUIDE
Withings BPM Vision
EN (US)

Advertisement

loading
Need help?

Need help?

Do you have a question about the BPM Vision and is the answer not in the manual?

Questions and answers

Related Manuals for Withings BPM Vision

Summary of Contents for Withings BPM Vision

  • Page 1 PRODUCT GUIDE Withings BPM Vision EN (US)

  • Page 2: Table Of Contents

    TABLE OF CONTENTS ENGLISH Table of contents Content of the box First blood pressure measurement Get to know BPM Vision Results color indication: US/Canada Settings menu Troubleshooting Regulatory information...
  • Page 3 PRODUCT GUIDE - ENGLISH - US Thank you for using BPM Vision. This guide explains how to use your BPM Vision. It applies to users located in the United States of America.

  • Page 4: Box Contents

    BOX CONTENTS Your BPM Vision box is composed of: BPM Vision (provided with 22-42cm / 9-16.5’’ cuff): Quick start guide and product guide: USB cable (for charging only): PRODUCT GUIDE Withings BPM Vision Note: Use only power supply units compliant with IEC 60601-1 or IEC 62368-1 and authorized by the relevant NCBs for safe operation.

  • Page 5: First Blood Pressure Measurement

    FIRST BLOOD PRESSURE MEASUREMENT Sit comfortably with your legs uncrossed, keep your feet flat on the floor, with your arms and back pro- perly supported. Remove all jewelry from your left arm. For long-sleeve shirts, roll the sleeve up without tightening it for a proper cuff placement on your bare arm.
  • Page 6 If the cuff is too big: This device might not be adapted to your situation. If the cuff is too small: Please visit Withings website and order a larger cuff. Plug the new cuff’s tube at the same spot as the other one. The measurement steps will remain the same with this new cuff.
  • Page 7 You can also launch a 3-measure- Short press the ON/OFF button to power on ment series by selecting the option your BPM Vision. Press the middle button to “Blood Pressure x3” while naviga- launch a simple measurement. Do not speak ting the measurements menu.

  • Page 8: Get To Know Bpm Vision

    (Blood pressure classifications can vary by geography. Read this paragraph if you are located in the US or Canada.) The Blood Pressure cursor on BPM Vision may indicate the following colors on the results color bar: - Green: If your measurements indicate normal blood pressure.

  • Page 9: Settings Menu

    This menu is composed of the following features: FACTORY RESET: Factory resetting BPM Vision allows you to delete all of the data stored on it. INFORMATION: By selecting this item, you will have access to the serial number of the device or “MAC address”, the firmware version, and the battery level.

  • Page 10: Troubleshooting

    Error description The cuff is not tight correctly. Please refer to the best practices for more infor- ERROR 201 mation on how to position BPM Vision. ERROR 202 Talk or movement has been detected during the measurement. Please try to take a new measurement and make sure you follow the best practices.

  • Page 11: Need More Help

    The cuff is not inflating. Please take a new measurement and make sure you follow the guidelines. BPM Vision failed to start a measurement. Please try to take a new measure- ERROR 303 ment and make sure you follow the best practices.

  • Page 12: Regulatory Information

    Intended use The BPM Vision is a digital monitor intended for use in measuring blood pressure and pulse rate. The device is intended to be used in a human adult population (18 years old minimum) with an arm circumference of 8¾ to 16½ inches (22 to 42 cm) or 15¾ to 20½ inches (40 to 52 cm). It is intended for indoor use only.
  • Page 13 Interference may occur in the vicinity of equipment marked with the following symbol . If you have a pacemaker, defibrillator or other electric implant, please maintain a minimum distance of 6 inches or 15 cm between BPM Vision and your implanted device to mitigate the risk of electromagnetic interference.
  • Page 14 - When an unexpected blood pressure reading is obtained, please contact the customer support. - The patient is the intended operator. - Withings BPM Vision is intended to be used by lay users. Notice You can use this device to take your own measurement, no third-party operator is required.
  • Page 15 Caution - Do not attempt to repair the unit yourself if it malfunctions. Only have repairs carried out by authorized service centers. - Do not apply strong shocks and vibrations to the blood pressure monitor or drop it. - Do not use the device after a strong shock, such as dropping the unit on the floor. - Do not inflate the arm cuff when it is not wrapped around your arm.
  • Page 16 - Do not place the cuff on the arm on the same side of a mastectomy (especially when lymph nodes have been removed). It is recommended to take measurements on the unaffected side. - Do not wrap the cuff on the same arm to which another monitoring device is applied. One or both devices could temporarily stop functioning if you try to use them at the same time.
  • Page 17 The patient is an intended user or operator, as well as medical staff and lay persons. Measurements can be affected by extreme temperatures, humidity & altitude. BPM Vision has been clinically validated on the left arm. However, you can still measure your blood pressure by applying the cuff on your right arm, if your left arm cannot bear it.
  • Page 18 - Make sure the tube is not squeezed or stretched in storage. - If storage conditions are different from the usage conditions indicated in this document, please move BPM Vision to a suitable location and wait 30 minutes before turning it on and taking a measurement.
  • Page 19 If the issue persists, please contact customer support by emailing program-sup- port@withings.com or contact the health program in which you are enrolled. Under normal circumstances, the measurement taken at home 1. The variation is due to the different environments may differ from 2.
  • Page 20 Technical Specifications Product description: Digital automatic blood pressure monitor Operating conditions: Model: WPM07 5 °C — 40 °C (41°F — 104°F) Reference: WPM07-08 15 % — 90 % non-condensing, but not requiring a water vapour Blood pressure measurement method: Cuff oscillometric method partial pressure greater than 50 hPa Cuff inflation: Automatic inflation 70kPa —...

  • Page 21: Wireless Information

    Service life: 3 years or 30,000 measurements (may vary based on usage conditions). Cuff: 10000 times. Please be aware that the stated 3-year product life of Withings Blood Pressure Monitors represents a minimum lifespan under standard tested conditions. Withings products are designed to last: our Blood Pressure Monitors are manufactured with care, and are provided with continual over-the-air firmware updates to avoid obsolescence.
  • Page 22 Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the Withings BPM Vision, including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result.
  • Page 23 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 24: Safety And Performance

    Security If needed, users can restore device configurations by following the factory reset procedure which is available through the Withings’ Help Center. You can subscribe to our status webpage (status.withings.io) in order to be notified if there is an incident or maintenance ongoing.
  • Page 25 Users can receive additional software updates automatically via Wi-Fi connectivity. If the device is configured in BLE (Bluetooth Low Energy), users will receive a notification via the Withings Application to update the firmware. Users are able to see the currently installed firmware in the settings menu of the device (accecible via the main menu).
  • Page 26 Electrical fast 2 kV for power supply The main power quality should be similar to that of a typical commercial or transient/burst IEC lines hospital environment. 61000-4-8 1 kV for input/output lines Surge IEC 61000-4-5 1 kV differential mode line(s) to line(s): The main power quality should be of the kind used in a typical commercial 2 kV common mode +/- 1kV...
  • Page 27 The device is suitable for use in all establishments, including domestic establishments and those directly connected to the public low voltage power supply network that supplies buildings used for domestic purposes. Portable and mobile RF communications equipment should be used no closer to any part of the device, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.

  • Page 28: Warranty

    2. Guidance and manufacturer’s declaration -electromagnetic emissions and lmmunity. Warranty Your BPM Vision blood pressure monitor is guaranteed to be free of material and workmanship defects for a period of two (2) years from the date of receipt.
  • Page 29 Withings website: www.withings.com Caution is necessary when operating the device Distributed by: Withings Inc., 225 Franklin St, Model number Boston, MA 02110, USA MR Unsafe To identify an item which poses unacceptable risks to the patient,...
  • Page 30 AW_IFU_WPM08_ALL_INT_C Withings BPM Vision | © 2024 Withings. All rights reserved. Version 1.1 March 2025. support.withings.com - 2 rue Maurice Hartmann, 92130 Issy-les-Moulineaux, France program-support@withings.com...
