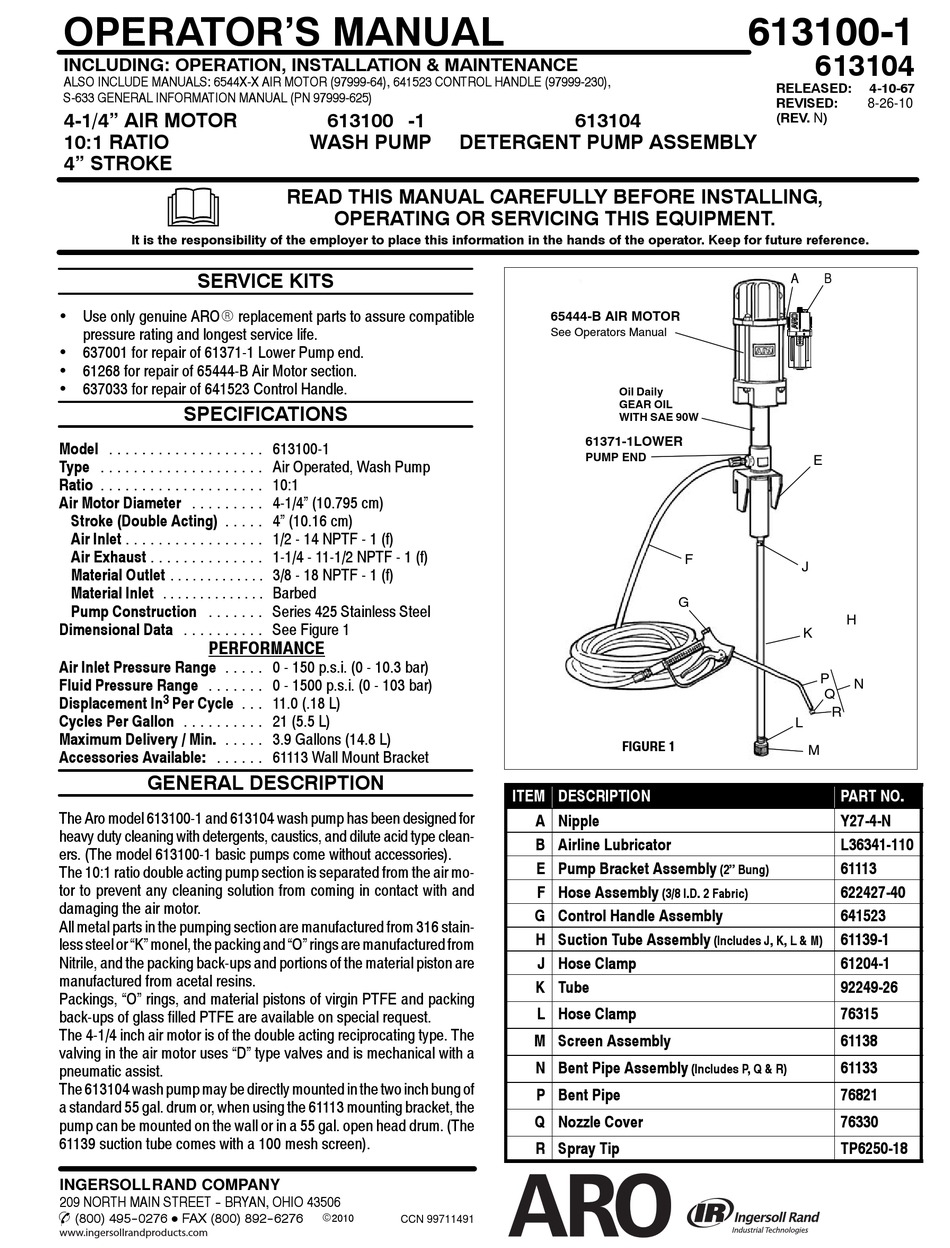

ARO 613100-1 Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
ALSO INCLUDE MANUALS: 6544X-X AIR MOTOR (97999-64), 641523 CONTROL HANDLE (97999-230),
S-633 GENERAL INFORMATION MANUAL (PN 97999-625)
4-1/4" AIR MOTOR
10:1 RATIO
4" STROKE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
• Use only genuine AROR replacement parts to assure compatible
pressure rating and longest service life.
• 637001 for repair of 61371-1 Lower Pump end.
• 61268 for repair of 65444-B Air Motor section.
• 637033 for repair of 641523 Control Handle.

SPECIFICATIONS

. . . . . . . . . . . . . . . . . . .
Model
. . . . . . . . . . . . . . . . . . . .
Type
Ratio . . . . . . . . . . . . . . . . . . . .
Air Motor Diameter . . . . . . . . .
Stroke (Double Acting) . . . . .
Air Inlet . . . . . . . . . . . . . . . . .
Air Exhaust . . . . . . . . . . . . . .
Material Outlet
. . . . . . . . . . . . .
Material Inlet
. . . . . . . . . . . . . .
Pump Construction . . . . . . .
. . . . . . . . . .
Dimensional Data
PERFORMANCE
Air Inlet Pressure Range . . . . .
Fluid Pressure Range . . . . . . .
3
Displacement In Per Cycle
. . . . . . . . . .
Cycles Per Gallon
. . . . .
Maximum Delivery / Min.
Accessories Available: . . . . . .
GENERAL DESCRIPTION
The Aro model 613100-1 and 613104 wash pump has been designed for
heavy duty cleaning with detergents, caustics, and dilute acid type clean-
ers. (The model 613100-1 basic pumps come without accessories).
The 10:1 ratio double acting pump section is separated from the air mo-
tor to prevent any cleaning solution from coming in contact with and
damaging the air motor.
All metal parts in the pumping section are manufactured from 316 stain-
less steel or "K" monel, the packing and "O" rings are manufactured from
Nitrile, and the packing back-ups and portions of the material piston are
manufactured from acetal resins.
Packings, "O" rings, and material pistons of virgin PTFE and packing
back-ups of glass filled PTFE are available on special request.
The 4-1/4 inch air motor is of the double acting reciprocating type. The
valving in the air motor uses "D" type valves and is mechanical with a
pneumatic assist.
The 613104 wash pump may be directly mounted in the two inch bung of
a standard 55 gal. drum or, when using the 61113 mounting bracket, the
pump can be mounted on the wall or in a 55 gal. open head drum. (The
61139 suction tube comes with a 100 mesh screen).
INGERSOLL RAND COMPANY
209 NORTH MAIN STREET -- BRYAN, OHIO 43506
(800) 495--0276 FAX (800) 892--6276
D
www.ingersollrandproducts.com
613100 -1
WASH PUMP
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
613100-1
Air Operated, Wash Pump
10:1
4-1/4" (10.795 cm)
4" (10.16 cm)
1/2 - 14 NPTF - 1 (f)
1-1/4 - 11-1/2 NPTF - 1 (f)
3/8 - 18 NPTF - 1 (f)
Barbed
Series 425 Stainless Steel
See Figure 1
0 - 150 p.s.i. (0 - 10.3 bar)
0 - 1500 p.s.i. (0 - 103 bar)
. . . 11.0 (.18 L)
21 (5.5 L)
3.9 Gallons (14.8 L)
61113 Wall Mount Bracket
2010
E
CCN 99711491
613104
DETERGENT PUMP ASSEMBLY
65444-B AIR MOTOR
See Operators Manual
Oil Daily
GEAR OIL
WITH SAE 90W
61371-1LOWER
PUMP END
FIGURE 1
ITEM DESCRIPTION
A Nipple
B Airline Lubricator
E Pump Bracket Assembly
F Hose Assembly
G Control Handle Assembly
H Suction Tube Assembly
J Hose Clamp
K Tube
L Hose Clamp
M Screen Assembly
N Bent Pipe Assembly
P Bent Pipe
Q Nozzle Cover
R Spray Tip
613100-1
613104
RELEASED:
REVISED:
(REV. N)
A B
E
F
J
G
K
P
Q
R
L
M
PART NO.
Y27-4-N
L36341-110
61113
(2" Bung)
622427-40
(3/8 I.D. 2 Fabric)
641523
61139-1
(Includes J, K, L & M)
61204-1
92249-26
76315
61138
61133
(Includes P, Q & R)
76821
76330
TP6250-18
4-10-67
8-26-10
H
N
