ARO 670077 Operator's Manual

1/2" diaphragm pump
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

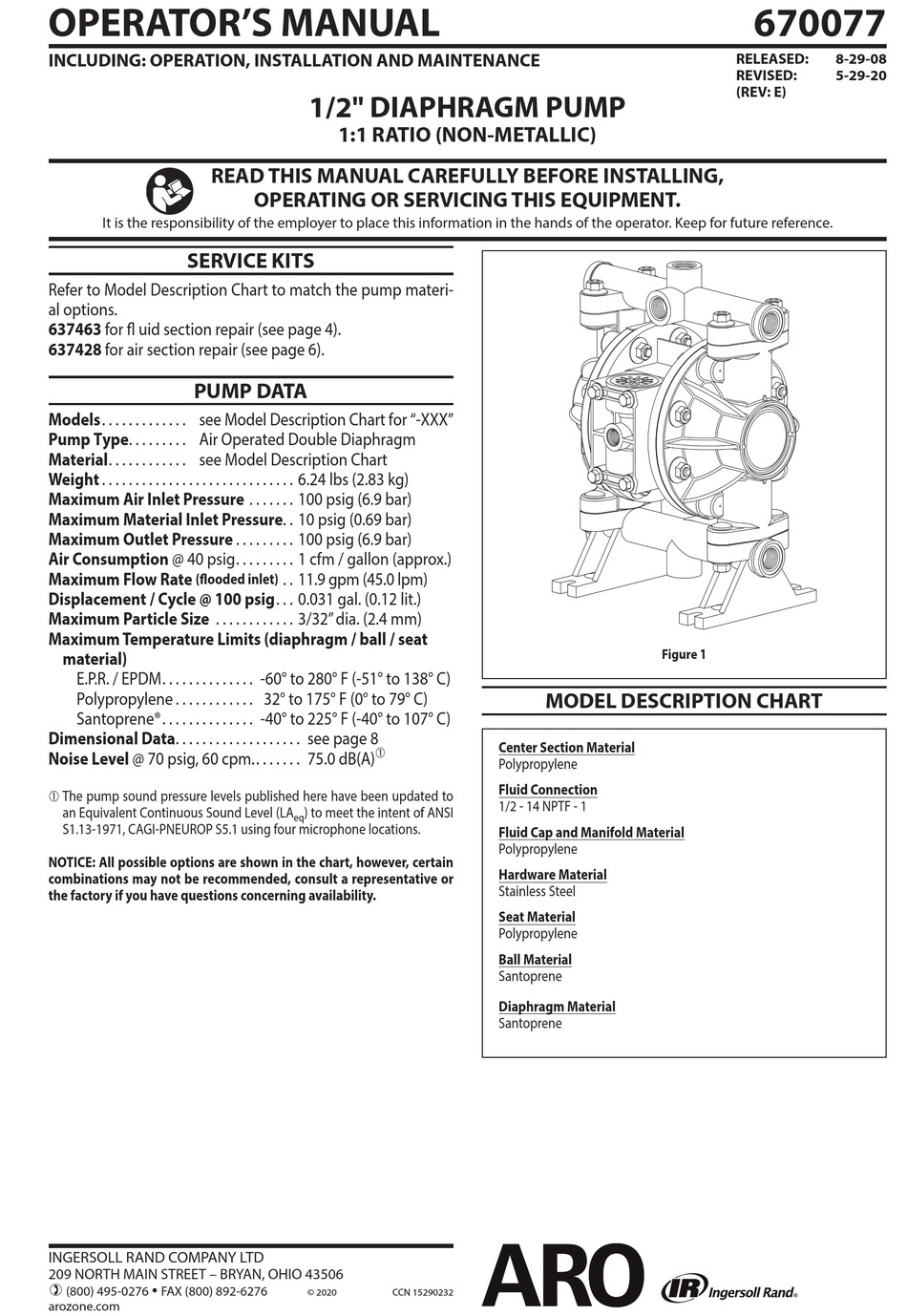

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump materi-
al options.
637463 for fl uid section repair (see page 4).
637428 for air section repair (see page 6).
PUMP DATA
Models . . . . . . . . . . . . . see Model Description Chart for "-XXX"
Pump Type . . . . . . . . . Air Operated Double Diaphragm
Material . . . . . . . . . . . . see Model Description Chart
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.24 lbs (2.83 kg)
Maximum Air Inlet Pressure . . . . . . . 100 psig (6.9 bar)
Maximum Material Inlet Pressure . . 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . 100 psig (6.9 bar)
Air Consumption @ 40 psig . . . . . . . . . 1 cfm / gallon (approx.)
Maximum Flow Rate
(flooded inlet)
Displacement / Cycle @ 100 psig . . . 0.031 gal. (0.12 lit.)
Maximum Particle Size . . . . . . . . . . . . 3/32" dia. (2.4 mm)
Maximum Temperature Limits (diaphragm / ball / seat
material)
E.P.R. / EPDM . . . . . . . . . . . . . . -60° to 280° F (-51° to 138° C)
Polypropylene . . . . . . . . . . . . 32° to 175° F (0° to 79° C)
Santoprene® . . . . . . . . . . . . . . -40° to 225° F (-40° to 107° C)
Dimensional Data . . . . . . . . . . . . . . . . . . . see page 8
Noise Level @ 70 psig, 60 cpm. . . . . . . . 75.0 dB(A)
 The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (LA
S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended, consult a representative or
the factory if you have questions concerning availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276
FAX (800) 892-6276
arozone.com
1/2" DIAPHRAGM PUMP
1:1 RATIO (NON-METALLIC)
OPERATING OR SERVICING THIS EQUIPMENT.
. . 11.9 gpm (45.0 lpm)
) to meet the intent of ANSI
eq
© 2020
CCN 15290232
Figure 1
MODEL DESCRIPTION CHART
Center Section Material
Polypropylene
Fluid Connection
1/2 - 14 NPTF - 1
Fluid Cap and Manifold Material
Polypropylene
Hardware Material
Stainless Steel
Seat Material
Polypropylene
Ball Material
Santoprene
Diaphragm Material
Santoprene
670077
RELEASED:
8-29-08
REVISED:
5-29-20
(REV: E)
