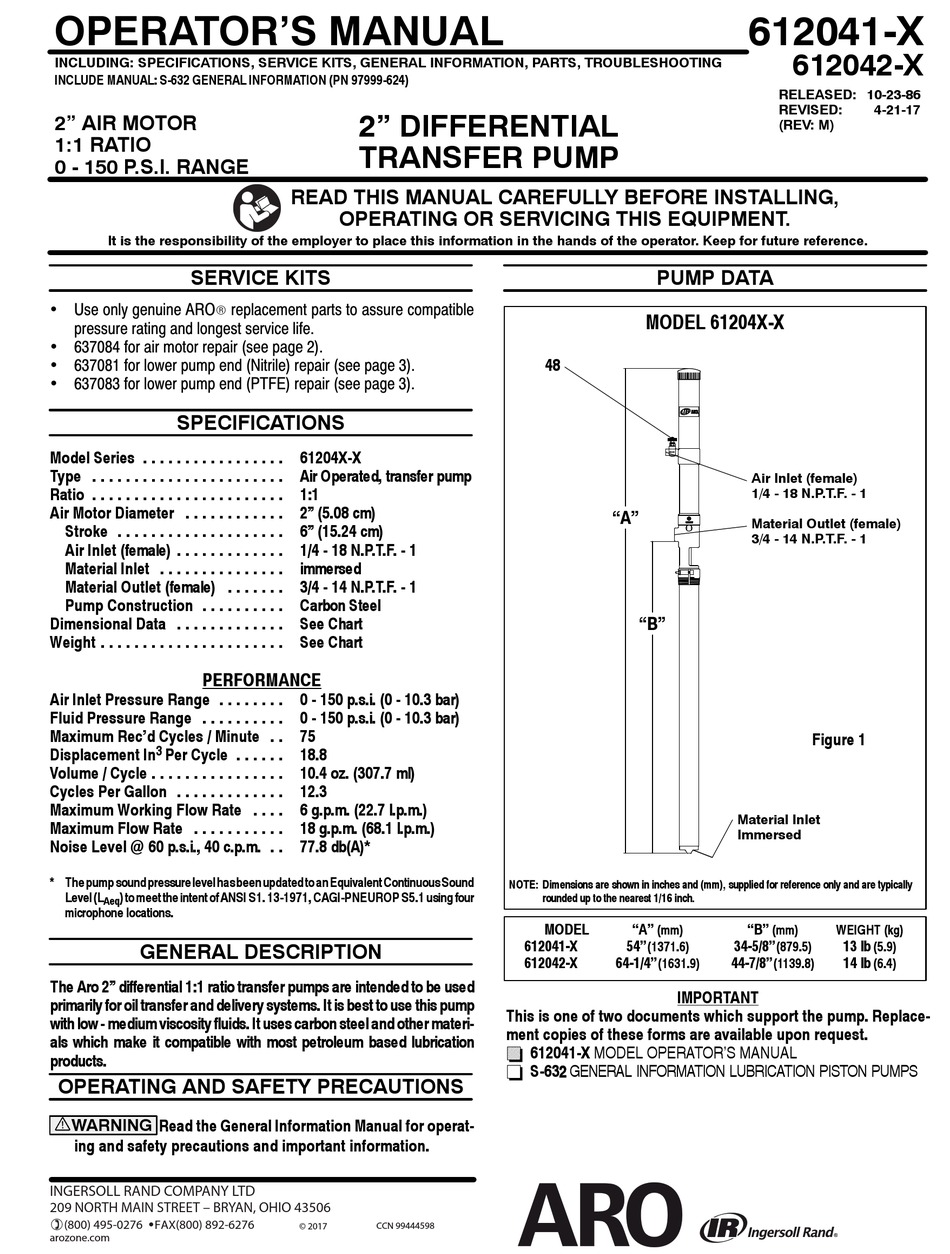

ARO 612041 Series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: SPECIFICATIONS, SERVICE KITS, GENERAL INFORMATION, PARTS, TROUBLESHOOTING
INCLUDE MANUAL: S-632 GENERAL INFORMATION (PN 97999-624)
2" AIR MOTOR
1:1 RATIO
0 - 150 P.S.I. RANGE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.

SERVICE KITS

Use only genuine ARO
R
pressure rating and longest service life.
637084 for air motor repair (see page 2).
637081 for lower pump end (Nitrile) repair (see page 3).
637083 for lower pump end (PTFE) repair (see page 3).

SPECIFICATIONS

Model Series . . . . . . . . . . . . . . . . .
Type . . . . . . . . . . . . . . . . . . . . . . .
Ratio . . . . . . . . . . . . . . . . . . . . . . .
Air Motor Diameter . . . . . . . . . . . .
Stroke . . . . . . . . . . . . . . . . . . . .
Air Inlet (female) . . . . . . . . . . . . .
Material Inlet . . . . . . . . . . . . . . .
Material Outlet (female) . . . . . . .
Pump Construction . . . . . . . . . .
Dimensional Data . . . . . . . . . . . . .
Weight . . . . . . . . . . . . . . . . . . . . . .
PERFORMANCE
Air Inlet Pressure Range . . . . . . . .
Fluid Pressure Range . . . . . . . . . .
Maximum Rec'd Cycles / Minute
3
Displacement In Per Cycle
Volume / Cycle . . . . . . . . . . . . . . . .
Cycles Per Gallon . . . . . . . . . . . . .
Maximum Working Flow Rate
Maximum Flow Rate . . . . . . . . . . .
Noise Level @ 60 p.s.i., 40 c.p.m.
* The pumpsoundpressure levelhasbeenupdatedtoanEquivalentContinuousSound
Level(L ) tomeetthe intentofANSI S1. 13-1971, CAGI-PNEUROP S5.1 usingfour
Aeq
microphone locations.

GENERAL DESCRIPTION

The Aro 2'' differential 1:1 ratio transfer pumps are intended to be used
primarily for oil transfer and delivery systems. It is best to use this pump
with low - medium viscosity fluids. It uses carbon steel and other materi-
als which make it compatible with most petroleum based lubrication
products.
OPERATING AND SAFETY PRECAUTIONS
WARNING Read the General Information Manual for operat-
ing and safety precautions and important information.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX(800) 892-6276
arozone.com
2" DIFFERENTIAL
TRANSFER PUMP
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
replacement parts to assure compatible
61204X-X
Air Operated, transfer pump
1:1
2'' (5.08 cm)
6'' (15.24 cm)
1/4 - 18 N.P.T.F. - 1
immersed
3/4 - 14 N.P.T.F. - 1
Carbon Steel
See Chart
See Chart
0 - 150 p.s.i. (0 - 10.3 bar)
0 - 150 p.s.i. (0 - 10.3 bar)
. . 75
. . . . . . 18.8
10.4 oz. (307.7 ml)
12.3
. . . . 6 g.p.m. (22.7 l.p.m.)
18 g.p.m. (68.1 l.p.m.)
. . 77.8 db(A)*
CCN 99444598
© 2017
PUMP DATA
MODEL 61204X-X
48
"A"
''B''
NOTE: Dimensions are shown in inches and (mm), supplied for reference only and are typically
rounded up to the nearest 1/16 inch.
MODEL "A"
(mm)
612041-X 54"
(1371.6)
612042-X 64-1/4"
(1631.9)
IMPORTANT
This is one of two documents which support the pump. Replace-
ment copies of these forms are available upon request.
= 612041-X MODEL OPERATOR'S MANUAL
- S-63 2 GENERAL INFORMATION LUBRICATION PISTON PUMPS
612041-X
612042-X
RELEASED: 10-23-86
REVISED: 4-21-17
(REV: M)
Air Inlet (female)
1/4 - 18 N.P.T.F. - 1
Material Outlet (female)
3/4 - 14 N.P.T.F. - 1
Figure 1
Material Inlet
Immersed
"B"
(mm) WEIGHT (kg)
34-5/8" 13 lb
(879.5) (5.9)
44-7/8" 14 lb
(1139.8) (6.4)
