ARO 650719-C Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
637118-C for air section repair (see page 6).
637138-63 for fl uid section repair (see page 4).
PUMP DATA
Models . . . . . . . . . . . . . . . . . . . 650719-C
Application . . . . . . . . . . . . . . Diesel Fuel, Kerosene, Aviation
Pump Type . . . . . . . . . . . . . . . U.L. Listed Metallic Air Operated
Material . . . . . . . . . . . . . . . . . . see Model Description Chart
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58.44 lbs (26.5 kgs)
Maximum Air Inlet Pressure . . . . . . . . 50 p.s.i.g. (3.4 bar)
Maximum Outlet Pressure . . . . . . . . . . 50 p.s.i.g. (3.4 bar)
Maximum Flow Rate
(fl ooded inlet)
Displacement / Cycle @ 100 p.s.i.g. . 0.64 gal. (2.42 lit.)
Maximum Particle Size . . . . . . . . . . . . . 1/4" dia. (6.4 mm)
Maximum Temperature Limits (diaphragm / ball / seal /
seat material)
Acetal . . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
Kynar® PVDF . . . . . . . . . . . . . . 10° to 200° F (-12° to 93° C)
Viton® . . . . . . . . . . . . . . . . . . . . -40° to 350° F (-40° to 177° C)
Dimensional Data . . . . . . . . . . . . . . . . . . . see page 8
Noise Level @ 70 p.s.i., 60 c.p.m. . . . . . . 77.7 db(A)
The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (L
S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX(800) 892-6276
www.ingersollrandproducts.com
2" DIAPHRAGM PUMP
U.L. LISTED, 1:1 RATIO, METALLIC
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
Fuel, Fuel Oil and Unleaded Fuel
Double Diaphragm for use with
Petroleum Product Dispensing
Systems
. . . 75 g.p.m. (283.9 l.p.m.)
) to meet the intent of ANSI
Aeq
© 2010 CCN 15201445
MODEL DESCRIPTION CHART
Diaphragm Material
9 - Viton
Center Body Material
Aluminum
Fluid Connection
2 - 11-1/2 N.P.T.F. - 1
Fluid Cap / Manifold Material, Hardware
Aluminum / Aluminum, Steel hardware
Seat Material
Kynar PVDF
Ball Material
Acetal
650719-C
RELEASED: 8-11-03
12-3-10
REVISED:
(REV. 08)

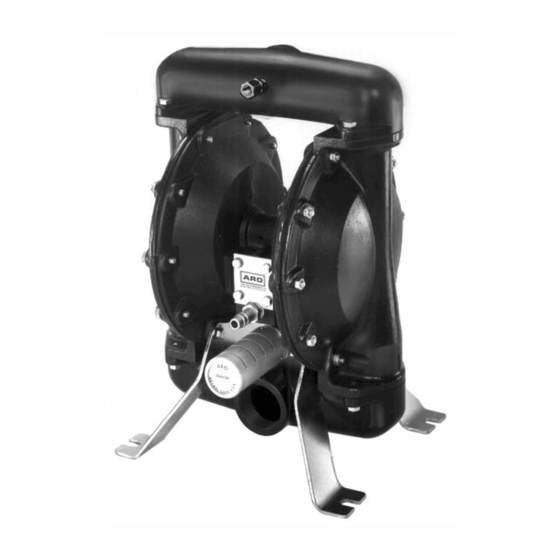

Figure 1
65071 9 - C
