ARO 66605 series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Chart to match the pump material options.
637140 XX for Fluid Section Repair (see page 4).
637141 for Air Section Repair (see page 6).

PUMP DATA

Models . . . See Model Description Chart for  XXX".
Pump Type Non Metallic Air Operated Double Diaphragm
Material . . . See Model Description Chart.
Weight . . . . Polypropylene . . . . . . . . . .
Groundable Acetal
KynarR . . . . . . . . . . . . . .
Maximum Air Inlet Pressure
Maximum Outlet Pressure . . . . . . . . . . .
Air Consumption . . . . . . . . . . . . . . . . . .
Maximum Flow Rate (Ball)
(Duckbill)
Maximum Particle Size (Ball)
(Duckbill)
Maximum Temperature Limits:
Polypropylene . . . . . . . .
Groundable Acetal . . . .
Kynar . . . . . . . . . . . . . .
Groundable . . . . . . . . . . . 666056 X and 66605H X models only
Dimensional Data . . . . . . . . . . . . . . . . .
Noise Level @ 70 psi, 60 C.P.M.
* The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (L ) to meet the intent of ANSI S1.13 1971, CAGI PNEUROP
Aeq
S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart however certain com
binations may not be recommended, consult a representative or the facto
ry if you have questions concerning availability.

GENERAL DESCRIPTION

The ARO Diaphragm Pump offers high volume delivery even at low air
pressure and a broad range of material compatibility options available.
Refer to the model and option chart. ARO pumps feature stall resistant
design, modular air motor / fluid sections.
Air operated double diaphragm pumps utilize a pressure differential in
the air chambers to alternately create suction and positive fluid pressure in
the fluid chambers, ball checks insure a positive flow of fluid.
Pump cycling will begin as air pressure is applied and it will continue to
pump and keep up with the demand. It will build and maintain line pres
sure and will stop cycling once maximum line pressure is reached (dis
pensing device closed) and will resume pumping as needed.
Models 666056 X and 66605H X: The Acetal material used in these
pumps contains Stainless Steel fibers. It's conductivity allows it to be
connected to a suitable ground. A ground screw and ground wire kit is
provided for this.
INGERSOLL-RAND COMPANY
P.O. BOX 151 ONE ARO CENTER
D
&
D
(419) 636-4242 FAX (419) 633-1674

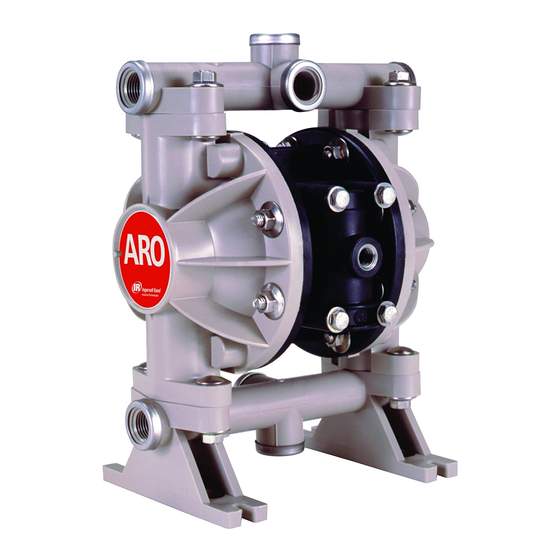

1/2" DIAPHRAGM PUMP
1:1 RATIO (NON-METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
7.2 (3.3 kgs)
. . . . . . . 8.8 (4.0 kgs)
9.5 (4.3 kgs)
. . . . . . . . . 100 p.s.i.g. (6.9 bar)
100 p.s.i.g. (6.9 bar)
1 c.f.m. / gallon (approx.)
. . . . . . . . . 13 g.p.m. (49.2 l.p.m.)
. . . . . 10 g.p.m. (37.9 l.p.m.)
. . . . . . . . 3/32" dia. (2.4 mm)
. . . . . Fibers
35_ to 150_F (2_ to 66_C)
10_ to 180_F ( 12_ to 82_C)
10_ to 200_F ( 12_ to 93_C)
see page 8
. . . . . . . 71.1 db(A)
BRYAN, OHIO 43506 0151
D
E
2001 D PRINTED IN U.S.A.
66605X XXX
1/2'' DIAPHRAGM PUMP
MODEL DESCRIPTION CHART
FLUID CAPS & MANIFOLD MATERIAL
3-PIECE MANIFOLD SINGLE PIECE MANIFOLD
3 - Polypropylene J - Polypropylene
6 - Groundable Acetal H - Groundable Acetal
7 - Pure Kynar K - Pure Kynar
SEAT MATERIAL
0 - (Duck Bill) 4 - PVDF - Kynar
2 - Stainless Steel 6 - Acetal
3 - Polypropylene
BALL MATERIAL
*(DUCKBILL MODELS)
1 - Neoprene 8 - Polyurethane
2 - Nitrile A - Stainless Steel
3 - Vitonr C - Neoprene (*)
4 - T.F.E. (Teflonr) D - Nitrile (*)
5 - E.P.R. E - Santoprene
DIAPHRAGM MATERIAL
1 - Neoprene 5 - E.P.R.
2 - Nitrile 8 - Polyurethane
3 - Viton B - Santoprene
4 - T.F.E. (Teflon) / Santoprene
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: MODEL # 666053 321
FLUID SECTION SERVICE KIT # 637140 21
66605X-X
RELEASED: 4-15-87
REVISED: 1-18-01
(REV. AJ)
66605 X X X X
r
66605X X X X
637140 X X
BALL DIAPHRAGM
