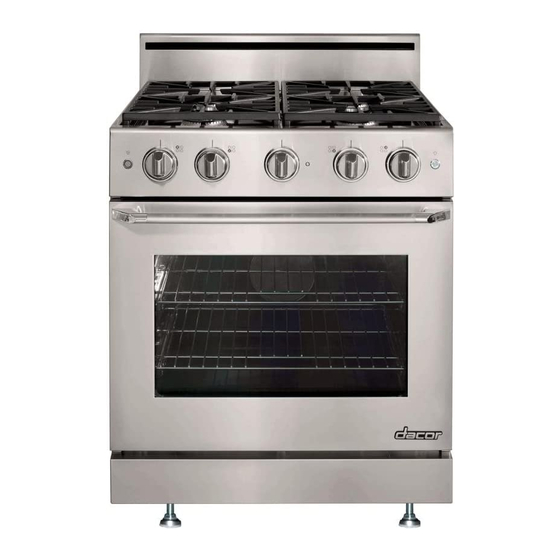

Distinctive 30 - Inch Gas Range ™ For use with models DR30GS, DR30GFS, DR30GIS and DR30GIFS THIS APPLIANCE HAS BEEN TESTED IN ACCORDANCE WITH THE LATEST EDITION OF ANSI Z21.1a-2011 STANDARD FOR HOUSEHOLD GAS COOKING APPLIANCES. Part No. 105908 Rev. D...
Use common sense and caution when installing, maintaining or operating this appliance. WARNING Always contact the Dacor Customer Service Team about problems or conditions you do not understand. WARNING – NEVER cover any slots, holes or passages...
Important Safety Instructions General Safety Precautions To reduce the risk of fire, explosion, electric shock, serious injury or death when installing or using this appliance, follow basic safety precautions, including the following: WARNING WARNING • Read the accompanying use and care manual •...
Page 5
Important Safety Instructions WARNING WARNING TO REDUCE THE RISK OF INJURY TO PERSONS IN • Do not expose the knobs to direct flame, hot utensils THE EVENT OF A RANGE TOP GREASE FIRE: or other sources of heat. a. SMOTHER FLAMES with a close-fitting lid, cookie •...
Part Number Description Compatibility Low profile Standard on models DR30GIS, DR30GIFS AER30GLBG (1 3/4 inch) Optional on models DR30GS, DR30GFS Optional on models DR30GS, DR30GFS AERB30G03 3 Inch NOT compatible with models DR30GIS, DR30GIFS Standard on models DR30GS, DR30GFS AERB30G06...
Installation Specifications Gas Supply Requirements WARNING • Be certain that the range being installed is correct for • This appliance must be installed and electrically the gas service being provided (natural gas or LP gas). grounded in conformance to local codes. •...
5 10” (25.4 cm) min. to combustible sidewalls above range (both sides). 6 Non-combustible surface required for models DR30GIS and DR30GIFS up to vertical distance specified in note 1 or range hood, whichever is lower. Non-combustible surface recommended, but not required, for models DR30GS and DR30GFS.
Page 9
Installation Specifications Self-Rimming Installation Cutout Options (Models DR30GIS and DR30GIFS Only) For all self-rimming installations (without raised vent): Countertop height: 34 3/4” (88.3 cm) min. 36 7/8” (93.7 cm) max. Countertop thickness: 1 5/8” (4.1 cm) max. 10” min. (25.4 cm) 10”...
Page 10
Partial Side Panels Removed (Top View) NOTE: For all raised vent installations, use only Dacor raised vent model ERV3015. 1 To create a “built-in look” on the front of the cabinet, this dimension may be changed to 29 1/4” (74.3 cm). Width notches remains 30”.
Existing utility connections may be used for replacement purposes, provided they meet local code • Dacor recommends that utility access for all models and fit within the utility clearance area at the back of be installed in an adjacent cabinet, as shown on page the range.
Page 12
Installation Instructions Installing the Anti-Tip Bracket on the Floor Attaching the bracket to a concrete floor: (cont.) • Drill four (4) 3/8” diameter countersink holes through any existing floor covering to the concrete slab below. Four (4) plastic anchors are provided along with three sizes (4 each) of #8 or #12 Phillips head screws for attaching •...
Installation Instructions Installing the Anti-Tip Bracket on the Wall Top hole, indicates 1. Determine the suitability of wall mounting the anti-tip #12 x 1 3/4” bracket center line bracket. To use the wall mount option, the range front screw, panel must not be more than 27 3/8” (69.5 cm) from 4 places the wall and the bracket screws must be able to thread into the base plate inside the wall behind.
Installation Instructions Door Removal Side Panel Removal Remove the door to make the range easier to move during (Model DR30GIS/DR30GIFS only) the installation process. If the range will be installed with the partial side panels removed: WARNING 1. Remove the three screws just below the oven opening • Do not attempt to disengage the hinge catches with that hold the kick panel in place.
Installation Instructions Rear Trim Piece Installation Gas Connection (Model DR30GIS/DR30GIFS only) WARNING For self-rimming installations, with or without a raised • Make sure the gas is turned off at the gas supply vent, install the included 1 inch deep rear trim piece to valve before connecting the gas line.
Installation Instructions Moving the Range to Final Location Re-Installing the Door 1. Peel the protective plastic coating off of the range, WARNING including the range door. To avoid personal injury or damage to the door from it 2. Uncoil the power cord and route it to the electrical falling off its hinges: outlet so that it does not become trapped behind the range when it is pushed back.
Installation Instructions Cooktop Assembly WARNING Never attempt to operate the range’s cooktop with any of the burner rings, burner caps or grates removed. 1. Remove the burner rings, burner caps and grates from their shipping cartons. 2. Install the burners as shown. Gently twist each piece back and forth after installation to make sure it is properly seated.
4. Test the left front burner on the cooktop 4. Repeat the above tests. by pushing in and turning the control knob 5. If the appliance still does not work, contact Dacor counterclockwise to the HIGH position. HIGH Distinctive Service at (800) 793-0093 ex. 2822. Do not The igniter for the left front burner will attempt to repair the appliance yourself.
Installation Instructions Installation Checklist WARNING To ensure a safe and proper installation, the installer must perform the following checklist to ensure that no part of the installation has been overlooked. Proper installation is the responsibility of the homeowner. □ Has the plastic coating been peeled off of the outside of the range? Have all packaging materials been removed from inside the oven? □...
