Installation Instructions
®

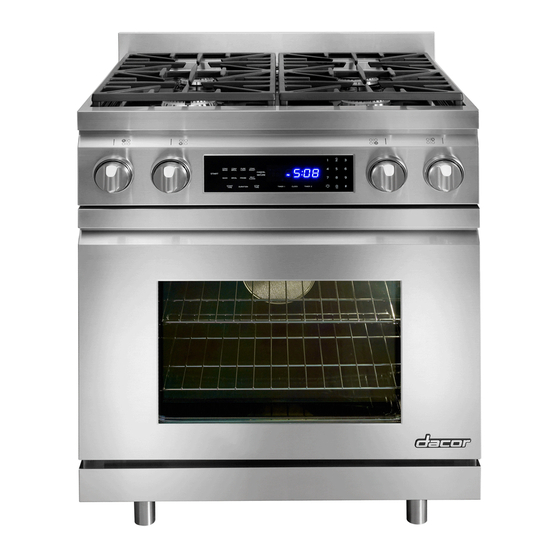

Distinctive
Range
Models: DR30D, DR30DH, DR30DI, DR30DIH, DR30D-C, DR30DH-C, DR30DI-C and DR30DIH-C
THIS APPLIANCE HAS BEEN TESTED IN ACCORDANCE WITH THE LATEST EDITIONS OF
UL858/CSA C22.2 NO. 61/ANSI Z21.1 STANDARDS FOR HOUSEHOLD COOKING APPLIANCES.
Part No. 106769 Rev. H
Advertisement
Table of Contents
Related Manuals for Dacor Distinctive DR30D
Summary of Contents for Dacor Distinctive DR30D
- Page 1 Installation Instructions ® Distinctive Range Models: DR30D, DR30DH, DR30DI, DR30DIH, DR30D-C, DR30DH-C, DR30DI-C and DR30DIH-C THIS APPLIANCE HAS BEEN TESTED IN ACCORDANCE WITH THE LATEST EDITIONS OF UL858/CSA C22.2 NO. 61/ANSI Z21.1 STANDARDS FOR HOUSEHOLD COOKING APPLIANCES. Part No. 106769 Rev. H...
-
Page 2: Table Of Contents
Customer Service Information Model Identification If you have questions or problems with installation, contact your Dacor dealer or the Dacor Customer Service Team. For repairs to Dacor appliances under warranty call the Dacor Distinctive DR30DIH-C/NG/H Service line. Whenever you call, have the model and serial number of the appliance ready. -
Page 3: Important Safety Instructions
• Attach the anti-tip bracket to the floor or wall as directed in these installation instructions. Always contact the Dacor Customer Service Team about problems and conditions that you do not understand. • Engage the floor or wall mounted anti-tip bracket by sliding... -
Page 4: General Safety Precautions
Important Safety Instructions General Safety Precautions To reduce the risk of fire, explosion, electric shock, serious injury or death when installing or using this appliance, follow basic safety precautions, including the following: WARNING WARNING • Read the accompanying use and care manual completely •... -
Page 5: Planning The Installation
Planning the Installation Electrical Requirements WARNING (Models numbers ending with -C) IMPORTANT: Observe all governing codes and ordinances during planning and installation. Contact your local building • Model numbers that end in -C are freestanding ranges that department for further information. come with a factory installed 4-wire appliance cord and Electrical Requirements (All models NEMA 14-50P plug. -
Page 6: Gas Supply Requirements
Planning the Installation Gas Supply Requirements • Check your local building codes for the proper method of Gas Supply Specifications installation. In the absence of local codes, this appliance Manifold Min. Gas Supply Max. Input should be installed in accordance with the National Fuel Gas Type Pressure* (WC) Pressure (WC) -
Page 7: Product Dimensions
NOTES: External handle • When installing model DR30DI[H] with a downdraft shown, some models 35 7/16” vent, install only Dacor model ERV3015. have integral handle (90.0 cm) • The backguards shown above for model DR30D[H] (see inside cover) are NOT compatible with model DR30DI[H]. -
Page 8: Cabinet Layout
• To reduce the risk of personal injury and to reduce The installation must allow for the following: accumulated smoke in the room, Dacor strongly recommends • Access to the gas shut-off valve when the unit is installed. installing a range hood or downdraft vent (model DR30DI[H] •... -
Page 9: Self-Rimming Installation Without Downdraft Vent
Planning the Installation Self-Rimming Installation Without • When sliding the range into position, it will stop when the rear of the side panels or front panel contact the notches toward Downdraft Vent the front of the countertop. The rear of the range trim will overhang the countertop in back. -
Page 10: Self-Rimming Installation With Downdraft Vent
• Only model DR30DI may be installed with a downdraft vent. (Without 3 1/4 Inch Side Panels Installed) Use only Dacor downdraft vent model ERV3015. • A self-rimming countertop configuration is required for downdraft vent installation. On installations with a downdraft... - Page 11 Planning the Installation Model DR30DI[H]/ERV3015 Countertop Model DR30DI[H]/ERV3015 Countertop and Cabinet Front Self-Rimmed, and Cabinet Front Self-Rimmed, Cabinet Depth: 23 5/8” Minimum Cabinet Depth: 26 7/8” Minimum (With 3 1/4 Inch Side Panels Installed) (Without 3 1/4 Inch Side Panels Installed) 3/8”...
-
Page 12: Installation Instructions
• Meat probe Concrete anchors shown, do • Dacor Stainless Steel Cleaner not use for wood sub-floor • Literature kit Four (4) plastic anchors are provided along with three sizes (4 each) of #8 or #12 Phillips head screws for attaching the anti- tip bracket to the floor. - Page 13 Installation Instructions Determine the location of the range center line and front Attaching the bracket to a concrete floor: panel for the range’s final position based on the Product • Drill four (4) 3/8” diameter countersink holes through any Dimensions on page 5 and the actual cabinet/cutout existing floor covering down to the concrete slab below.
- Page 14 Installation Instructions Preparing for Installation (cont.) To install the bracket, place it against the wall in the mounting location. Using a drill with 1/8” diameter drill bit, drill four (4) 1 5/8” deep pilot holes perpendicular to the screw seating Installing the Anti-Tip Bracket on the Wall surfaces shown below.
- Page 15 Installation Instructions Removing the Oven Door Optional Backguard/Island Trim Installation (Freestanding Model, DR30D[H] Only) To make the range easier to move, remove the door to reduce weight. When used, the optional island trim or optional 6 or 9 inch backguard must be installed before sliding the range into WARNING place.
-
Page 16: Electrical Connection
Improper connection of the electrical wiring can cause an grounding screw and remove the neutral to ground jumper electric shock hazard and damage the appliance. Dacor link from the terminal block. Leave the link in place for 3-wire is not responsible for damages resulting from improper connections. - Page 17 Installation Instructions Slide the end of the appliance cord into the strain relief from the bottom of the box. Connect the white (neutral) wire to the neutral terminal in the Bare wire box. connections Connect the L1 wire to the L1 power supply terminal in the box.
- Page 18 Installation Instructions Electrical Connection (cont.) Connecting Conduit to the Range L1 terminal WARNING Neutral terminal Do not connect the green appliance wire to the neutral (white) supply wire unless local building codes permit. Remove the range electrical access cover from the back of the range.
- Page 19 Installation Instructions Connecting the Conduit to the House Connection to Electrical Junction Box power supply WARNING Junction box • Do not ground the appliance to a gas supply pipe or hot water pipe. WHITE • Do not turn on power to the appliance without it being WHITE permanently grounded.
-
Page 20: Gas Connection
Installation Instructions Gas Connection Final Installation Peel the protective plastic coating off of the range, including WARNING the range door. Measure from the floor to the countertop. • Make sure the gas supply valve is off and that the power to the range is turned off at the circuit breaker or fuse box prior Adjust the leveling legs: to connecting the gas line. -
Page 21: Cooktop Assembly
Installation Instructions Re-installing the Oven Door Cooktop Assembly WARNING WARNING To avoid personal injury or damage to the door from it falling off Never attempt to operate the range’s cooktop with any of the its hinges: burner rings, burner caps or grates removed. •... -
Page 22: Verifying Proper Operation
Installation Instructions Verifying Proper Operation Repeat the bake test or burner ignition test. If the appliance still does not work, contact Dacor Distinctive Service at (877) 337-3226. Do not attempt to repair the WARNING appliance yourself. Have the model and serial numbers available when you call. - Page 24 Dacor ● 14425 Clark Avenue, City of Industry, CA 91745 ● Phone: (800) 793-0093 ● Fax: (626) 403-3130 ● www.dacor.com...
