Installation Instructions
Distinctive

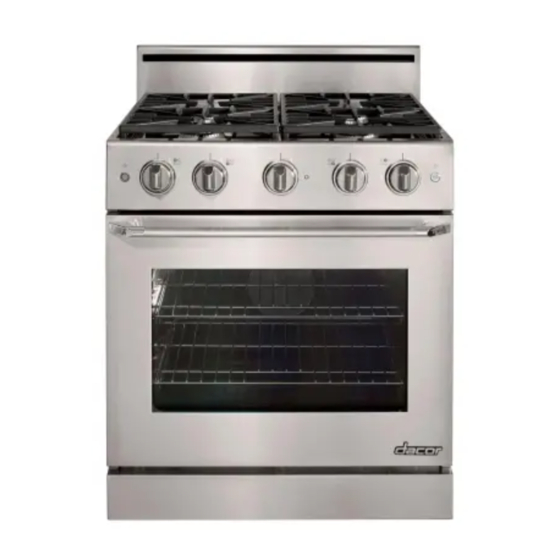

30 - Inch Gas Range
For use with models DR30GS, DR30GFS, DR30GIS and DR30GIFS
THIS APPLIANCE HAS BEEN TESTED IN ACCORDANCE WITH THE LATEST EDITION
OF ANSI Z21.1a-2011 STANDARD FOR HOUSEHOLD GAS COOKING APPLIANCES.
Part No. 105908 Rev. B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Distinctive DR30GIS and is the answer not in the manual?

Questions and answers

Summary of Contents for Dacor Distinctive DR30GIS

  • Page 1 Installation Instructions Distinctive 30 - Inch Gas Range ™ For use with models DR30GS, DR30GFS, DR30GIS and DR30GIFS THIS APPLIANCE HAS BEEN TESTED IN ACCORDANCE WITH THE LATEST EDITION OF ANSI Z21.1a-2011 STANDARD FOR HOUSEHOLD GAS COOKING APPLIANCES. Part No. 105908 Rev. B...
  • Page 2: Table Of Contents

    No character = Equipped for low altitude operation Product data label (view through right side of grate with flashlight) All specifications subject to change without notice. Dacor assumes no liability for changes to specifications. © 2012 Dacor, all rights reserved.
  • Page 3: Important Safety Instructions

    Use common sense and caution when installing, maintaining or operating this appliance. WARNING Always contact the Dacor Customer Service Team about problems or conditions you do not understand. WARNING – NEVER cover any slots, holes or passages...
  • Page 4: General Safety Precautions

    Important Safety Instructions General Safety Precautions To reduce the risk of fire, explosion, electric shock, serious injury or death when installing or using this appliance, follow basic safety precautions, including the following: WARNING WARNING • Read the accompanying use and care manual •...
  • Page 5 Important Safety Instructions WARNING WARNING TO REDUCE THE RISK OF INJURY TO PERSONS IN • Do not expose the knobs to direct flame, hot utensils THE EVENT OF A RANGE TOP GREASE FIRE: or other sources of heat. a. SMOTHER FLAMES with a close-fitting lid, cookie •...
  • Page 6: Installation Specifications

    Installation Specifications Product Dimensions All tolerances: ±1/16” (±1.6 mm), unless otherwise stated 45 9/16” (115.7 cm) Front of open door NOTE: Models DR30GS and 28 9/16” (72.5 cm) Front of knobs DR30GFS are not compatible with a raised vent. 26 1/8” (66.4 cm) Front panel 24”...
  • Page 7: Electrical Power Supply Requirements

    Installation Specifications Gas Supply Requirements WARNING • Be certain that the range being installed is correct for • This appliance must be installed and electrically the gas service being provided (natural gas or LP gas). grounded in conformance to local codes. •...
  • Page 8: Cabinet Layout

    Note 2 hood. • If installing a raised vent, install only Dacor model ERV3015. • The range may be installed flush to the rear wall. See diagram and notes for rear wall surface requirements.
  • Page 9 Installation Specifications Self-Rimming Installation Cutout Options (Models DR30GIS and DR30GIFS Only) For all self-rimming installations (without raised vent): Countertop height: 34 3/4” (88.3 cm) min. 36 7/8” (93.7 cm) max. Countertop thickness: 1 5/8” (4.1 cm) max. 10” min. (25.4 cm) 10”...
  • Page 10 2 For 24 to 24 1/4 inch deep cabinets, the side panels and control panel will protrude from the cabinet face a total of 5 5/8 inches. 3 Revision A ranges only: Raised vent trim piece and 3 1/2 inch side panels (Dacor PN ADTK30GSR24) must be installed to cover the front of the raised vent chassis in back and range chassis on sides.
  • Page 11: Gas And Electrical Locations

    Existing utility connections may be used for replacement purposes, provided they meet local code • Dacor recommends that utility access for all models and fit within the utility clearance area at the back of be installed in an adjacent cabinet, as shown on page the range.
  • Page 12 Installation Instructions Installing the Anti-Tip Bracket on the Floor Attaching the bracket to a concrete floor: (cont.) • Drill four (4) 3/8” diameter countersink holes through any existing floor covering to the concrete slab below. Four (4) plastic anchors are provided along with three sizes (4 each) of #8 or #12 Phillips head screws for attaching •...
  • Page 13: Backguard Kit Installation

    Installation Instructions Installing the Anti-Tip Bracket on the Wall Top hole, indicates 1. Determine the suitability of wall mounting the anti-tip #12 x 1 3/4” bracket center line bracket. To use the wall mount option, the range front screw, panel must not be more than 27 3/8” (69.5 cm) from 4 places the wall and the bracket screws must be able to thread into the base plate inside the wall behind.
  • Page 14: Door Removal

    Installation Instructions Door Removal Side Panel Removal Remove the door to make the range easier to move during (Model DR30GIS/DR30GIFS only) the installation process. If the range will be installed with the partial side panels removed: WARNING 1. Remove the three screws just below the oven opening • Do not attempt to disengage the hinge catches with that hold the kick panel in place.
  • Page 15: Rear Trim Piece Installation

    Installation Instructions Rear Trim Piece Installation Gas Connection (Model DR30GIS/DR30GIFS only) WARNING For self-rimming installations, with or without a raised vent, • Make sure the gas is turned off at the gas supply install the included 1 inch deep rear trim piece to overhang valve before connecting the gas line.
  • Page 16: Moving The Range To Final Location

    Installation Instructions Moving the Range to Final Location Re-Installing the Door 1. Peel the protective plastic coating off of the range, WARNING including the range door. To avoid personal injury or damage to the door from it 2. Uncoil the power cord and route it to the electrical falling off its hinges: outlet so that it does not become trapped behind the range when it is pushed back.
  • Page 17: Cooktop Assembly

    Installation Instructions Cooktop Assembly WARNING Never attempt to operate the range’s cooktop with any of the burner rings, burner caps or grates removed. 1. Remove the burner rings, burner caps and grates from their shipping cartons. 2. Install the burners as shown. Gently twist each piece back and forth after installation to make sure it is properly seated.
  • Page 18: Verifying Proper Operation

    4. Test the left front burner on the cooktop 4. Repeat the above tests. by pushing in and turning the control knob 5. If the appliance still does not work, contact Dacor counterclockwise to the HIGH position. HIGH Distinctive Service at (800) 793-0093 ex. 2822. Do not The igniter for the left front burner will attempt to repair the appliance yourself.
  • Page 19: Installation Checklist

    Installation Instructions Installation Checklist WARNING To ensure a safe and proper installation, the installer must perform the following checklist to ensure that no part of the installation has been overlooked. Proper installation is the responsibility of the homeowner. □ Has the plastic coating been peeled off of the outside of the range? Have all packaging materials been removed from inside the oven? □...
