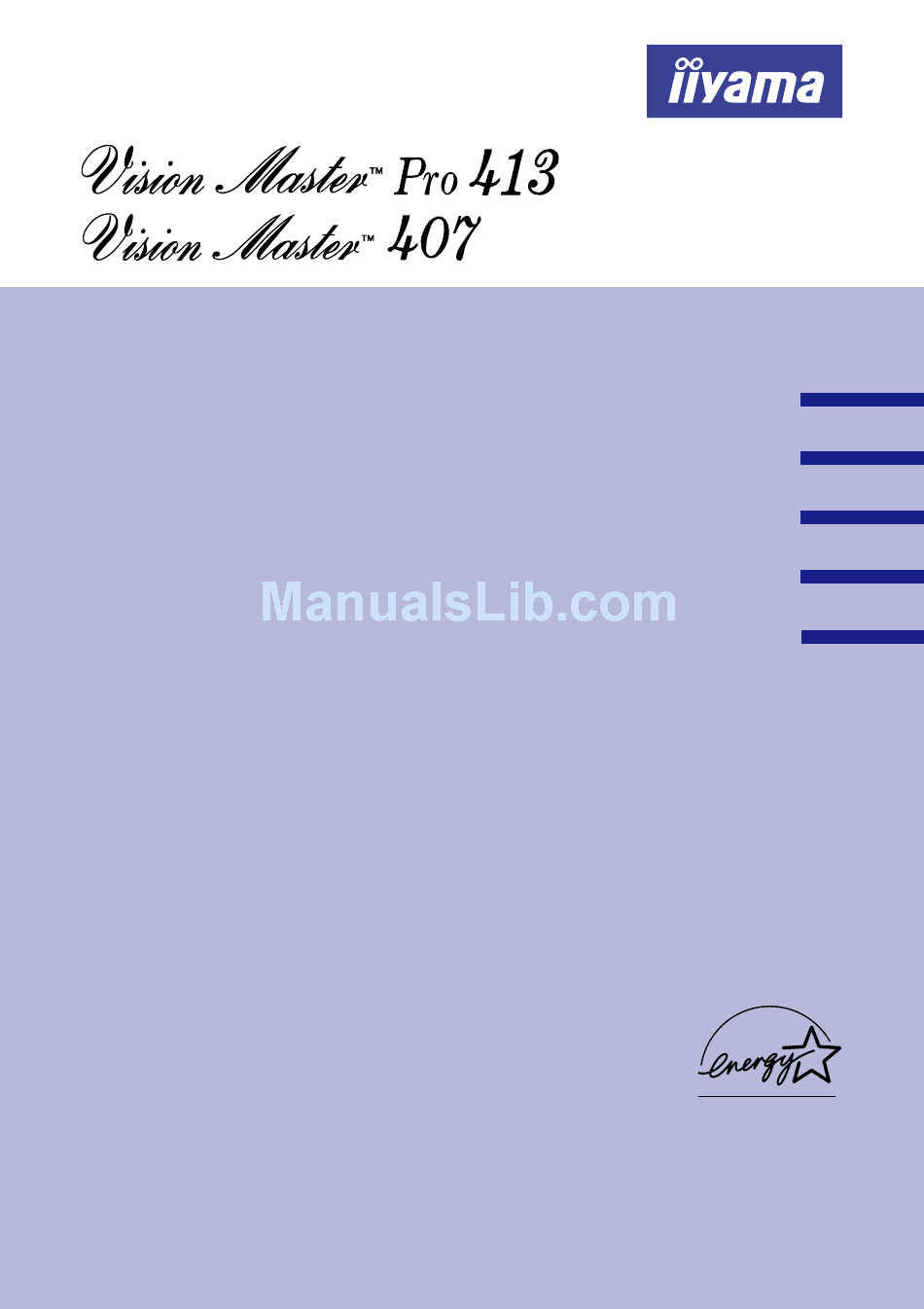

Vision master pro 413, vision master 407
Hide thumbs Also See for HM703UT A:

Advertisement

USER MANUAL

TABLE OF CONTENTS

FOR YOUR SAFETY............................................................
SAFETY PRECAUTIONS............................................
CUSTOMER SERVICE................................................
CLEANING...................................................................
BEFORE YOU OPERATE THE MONITOR..........................
FEATURES..................................................................
ACCESSORIES...........................................................
LOCATION OF CONTROLS........................................
CONNECTING YOUR MONITOR.................................
OPERATING THE MONITOR................................................
ADJUSTMENT MENU CONTENTS..............................
POWER MANAGEMENT FEATURE.............................
SELF-DIAGNOSIS FUNCTION......................................
TROUBLE SHOOTING........................................................
APPENDIX............................................................................
SPECIFICATIONS: HM703UT A.....................................
SPECIFICATIONS: HF703UT A....................................
PRESET MODES.........................................................
CONNECTOR PIN ASSIGNMENT.................................
Thank you very much for choosing the iiyama Vision Master color monitor.
We recommend that you take a few minutes to read carefully through this brief but
comprehensive manual before installing and switching on the monitor. Please keep
this manual in a safe place for your future reference.
HM703UT A
HF703UT A
ENGLISH
DEUTSCH
1
1
FRANCAIS
3
3
NEDERLANDS
4
4
SVENSKA
4
4
5
6
7
8
9
13
14
15
17
17
18
19
19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HM703UT A and is the answer not in the manual?

Questions and answers

Summary of Contents for Iiyama HM703UT A

  • Page 1: Table Of Contents

    PRESET MODES............CONNECTOR PIN ASSIGNMENT......... Thank you very much for choosing the iiyama Vision Master color monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep...
  • Page 3: Why Do We Have Environmentally Labelled Computers

    Congratulations! You have just purchased a TCO’99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
  • Page 4: Environmental Requirements

    Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances.
  • Page 5: Fcc Declaration Of Conformity

    Consult the dealer or an experienced radio or TV technician for help. CAUTION Changes or modifications not expressly approved by iiyama could void the users authority to operate the equipment under FCC compliance regulations. CANADIAN DEPARTMENT OF COMMUNICATIONS COMPLIANCE...
  • Page 6: For Your Safety

    STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock.
  • Page 7 CAUTION MAINTAIN GOOD VENTILATION Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause fire. To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls. Do not remove the stand when operating the monitor. Ventilation slots on the cabinet bottom will be blocked and the monitor may overheat if the stand is removed.
  • Page 8: Customer Service

    OPQ function is active. CUSTOMER SERVICE NOTE If you have to return your unit for service and the original packaging has been discarded, please contact your dealer or iiyama service center for advice or replacement packaging. CLEANING WARNING If you drop any materials or liquids such as water into the monitor when cleaning, unplug the power cable immediately and contact your dealer or iiyama service center.
  • Page 9: Before You Operate The Monitor

    10A / 250V must be used. FOR WINDOWS 95/98/2000/ME/XP USERS Windows 95/98/2000/Me/XP Monitor Information File for iiyama monitors may be obtained via the Internet, using the address: http://www.iiyama.com (U.S.A.) http://www.iiyama.co.uk (U.K.)
  • Page 10: Installation Of Tilt And Swivel Stand

    INSTALLATION OF TILT AND SWIVEL STAND The monitor is designed to be used with the stand installed. Be sure to install the stand before operating the monitor. CAUTION Install the stand on a stable surface. The monitor may cause injury or damage if it falls or is dropped.
  • Page 11: Location Of Controls

    LOCATION OF CONTROLS A Power Indicator B Power Switch C + Button D – Button E Menu Button F Input Select Button (VIDEO 1/2) Select either VIDEO IN 1 or 2 for the signal input when both of the signal inputs are connected to a signal source.
  • Page 12: Connecting Your Monitor

    The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor.
  • Page 13: Operating The Monitor

    OPERATING THE MONITOR The iiyama Vision Master has been preset at the factory with the signal timings listed on page 19 in PRESET MODES to create the best picture. If an incorrect picture appears during the operation, adjust the image by following the procedure below to get the desired picture.
  • Page 14: Adjustment Menu Contents

    ADJUSTMENT MENU CONTENTS Main Menu Sub-Menu Problem / Option Button to Press Too dull Contrast Direct Too intense Too dark Color Brightness Direct Control Too bright Color 1: 9300K Color Temp. COLOR Color 2: 6500K Color 3: 5000K sRGB User color: Red / Blue n sRGB is an international standard which defines and unifies the difference NOTE of color appearance between equipment.
  • Page 15 Main Menu Sub-Menu Problem / Option Button to Press Too small Zoom Too large Screen Too small Control H-Size Too large Too far to the left H-Position Too far to the right Too small V-Size Too large Too low V-Position Too high Return to Menu Return to Main Menu.
  • Page 16 Main Menu Sub-Menu Problem / Option Button to Press To correct vertical H-Moire wavy lines To correct horizontal Picture V-Moire* Quality wavy lines NOTE Moiré is the result of interference between the phosphor layout and the video signal. By changing the horizontal and vertical size, the moiré can be reduced. You may find the moiré...
  • Page 17 Main Menu Sub-Menu Problem / Option Button to Press To move the OSD to the left / OSD H-Position center / right To move the OSD to the top / Function OSD V-Position center / bottom 3 5 15 30 45 sec OSD Off Timer You can set the OSD display time to any one of the above 5 settings.
  • Page 18: Power Management Feature

    Power Management Mode which reduces the power consumption to less than 2W (HM703UT A) / 5W (HF703UT A). The screen becomes dark, and the power indicator turns to orange. From Power Management Mode, the image reappears in 10 seconds when either the keyboard or the mouse are touched again.
  • Page 19: Self-Diagnosis Function

    B Turn ON the monitor. Diagnosis A A full white picture is displayed: The monitor is working normally. Check the computer. B A full white picture is not displayed: The monitor may be damaged. Contact your dealer or iiyama service center. OPERATING THE MONITOR...
  • Page 20: Trouble Shooting

    2. Consult the following charts if you cannot find an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem...
  • Page 21 Normal phenomenon on ‘Diamondtron M -CRT’ monitors HM703UT A Misalignment of Aperture Grille Due to the nature of the Diamondtron M -CRT, in rare cases, a misalignment of the aperture grille may happen by the shock or vibration caused during transportation. If a black vertical line appears on the screen, apply a light shock to the side of the monitor with your hand.
  • Page 22: Appendix

    APPENDIX SPECIFICATIONS: HM703UT A 17" (16.0" / 41cm viewable), Aperture Grille pitch: 0.25mm, Diamondtron M -CRT, 90 degree deflection, Short persistence phosphor, Anti-reflection & Anti-static coating Sync Frequency Horizontal: 30.0-96.0kHz, Vertical: 50-160Hz 160MHz dot clock Video Bandwidth Recommended Resolution 1024 × 768 at 85Hz Input Connector D-Sub mini 15pin ×...
  • Page 23: Specifications: Hf703Ut A

    SPECIFICATIONS: HF703UT A 17" (16.0" / 40cm viewable), Dot pitch 0.25mm (Horizontal: 0.21mm), Flat square tube, 90 degree deflection, Short persistence phosphor, Anti-reflection & Anti-static coating Sync Frequency Horizontal: 30.0-96.0kHz, Vertical: 50-160Hz 160MHz dot clock Video Bandwidth 1024 × 768 at 85Hz Recommended Resolution Input Connector D-Sub mini 15pin ×...
  • Page 24: Preset Modes

    PRESET MODES The following chart indicates the Factory Preset Modes. Sync Polarity Vertical Horizontal Resolution Frequency Frequency 720×400 31.33kHz 70.0Hz Negative Positive 640×480 31.47kHz 59.9Hz Negative Negative 640×480 37.50kHz 75.0Hz Negative Negative 640×480 43.27kHz 85.0Hz Negative Negative 800×600 46.88kHz 75.0Hz Positive Positive 800×600...
