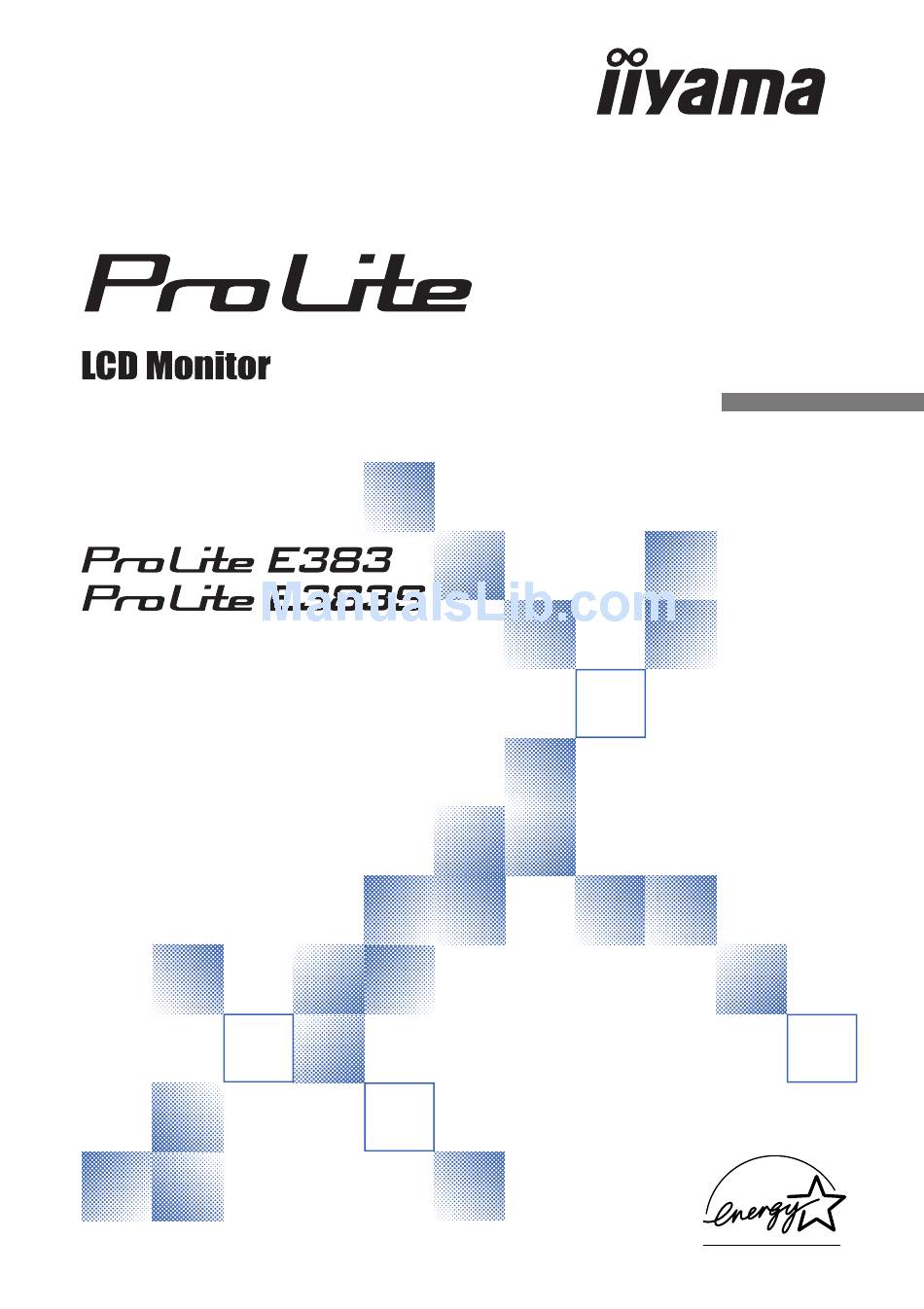

USER MANUAL
ENGLISH
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes to
r e a d c a r e f u l l y t h r o u g h t h i s b r i e f b u t
comprehensive manual before installing and
switching on the monitor. Please keep this
manual in a safe place for your future
reference.
Advertisement
Table of Contents
Related Manuals for Iiyama ProLite E383
Summary of Contents for Iiyama ProLite E383
-
Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to r e a d c a r e f u l l y t h r o u g h t h i s b r i e f b u t comprehensive manual before installing and switching on the monitor. - Page 2 Some of the features of the TCO’03 Display requirements: Ergonomics • Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability. Energy •...
-
Page 3: Why Do We Have Environmentally Labelled Computers
Why do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. -
Page 4: Environmental Requirements
Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. -
Page 5: Fcc Declaration Of Conformity
To meet the FCC requirements, you should use a signal cable with ferrite core at both ends. CAUTION Changes or modifications not expressly approved by iiyama could void the users authority to operate the device under FCC compliance regulations. CANADIAN DEPARTMENT OF COMMUNICATIONS COMPLIANCE... -
Page 6: Table Of Contents
POWER MANAGEMENT FEATURE ... 17 TROUBLE SHOOTING ... 18 APPENDIX ... 20 SPECIFICATIONS: ProLite E383-W1X / E383-B1X / E383-S1X ... 20 SPECIFICATIONS: ProLite E383S-W1X / E383S-B1X / E383S-S1X .. 21 SPECIFICATIONS: ProLite E383-W2X / E383-B2X / E383-S2X ... 22 SPECIFICATIONS: ProLite E383S-W2X / E383S-B2X / E383S-S2X .. 23 COMPLIANT TIMING ... -
Page 7: For Your Safety
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock. -
Page 8: Installation Location
CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. -
Page 9: Special Notes On Lcd Monitors
Power Switch for hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself. -
Page 10: Before You Operate The Monitor
TCO ’03 and MPR 3 3 3 3 3 Approved: ProLite E383-W1X / E383-S1X / E383S-W1X / E383S-S1X TCO ’99 and MPR 3 3 3 3 3 Approved: ProLite E383-B1X / E383S-B1X / E383-W2X / E383-B2X / E383-S2X ProLite E383S-W2X / E383S-B2X / E383S-S2X VESA Mounting Standard (75mm×75mm) Compliant... -
Page 11: Checking The Contents Of The Package
Optional parts as below are available for your LCD monitor. Please contact your local iiyama dealer or regional iiyama office for more details. The Protection Sheet may be attached to the LCD panel surface to protect it from stains or scratches. -
Page 12: Controls And Connectors
CONTROLS AND CONNECTORS <Front> A Power Switch / Power Indicator (POWER) Green: Normal operation (ProLite E383 / ProLite E383-B / ProLite E383-S / NOTE Blue: Normal operation (ProLite E383S-B / ProLite E383S-S) Orange: Power Management The monitor enters into power management mode which reduces the power consumption to less than 2W when receiving no horizontal and/or vertical sync signal. -
Page 13: Connecting Your Monitor
The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor. -
Page 14: Computer Setting
Change to the desired signal timing listed on page 24: COMPLIANT TIMING. Windows 95/98/2000/Me/XP Plug & Play The iiyama LCD monitor complies with DDC1/2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP by connecting the monitor to DDC1/2B compliant computer with the Signal Cable supplied. -
Page 15: Adjusting The Viewing Angle
ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor. Hold the stand so that the monitor does not topple when you change the monitor’s angle. You are able to adjust the monitor’s angle up to 0-25 degrees backward. -
Page 16: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 24. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 15 for SCREEN ADJUSTMENTS. -
Page 17: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Menu : 1 Adjustment Item Brightness * Contrast Clock * Phase * V-Position H-Position Return to Menu Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too bright. See page 15 for SCREEN ADJUSTMENTS. - Page 18 Menu : 2 Adjustment Item Auto Set-up * Direct NOTE The brightness of screen varies for several seconds during the adjustment. This function is not performed automatically when changing the signal input because the factory-preset of “Setting” in Auto Set-up is set to Off. Color Temp.
- Page 19 Menu : 2 Adjustment Item Gamma Economy Mode Direct NOTE is displayed while Economy Mode is active. Return to Menu Direct You can skip the Menu pages and display an adjustment scale directly by using the following button operations. Economy Mode: When OSD menu is off, holding the Menu button for 1-2 seconds will toggle the Economy Mode switch Off, Mode1 and Mode2.
- Page 20 Menu : 3 Adjustment Item Direct Volume * NOTE is displayed while Mute is active. OSD Position Language Lockout NOTE is displayed while Lockout is active. Reset Return to Menu *Available for ProLite E383S only Direct You can skip the Menu pages and display an adjustment scale directly by using the following button operations.
-
Page 21: Screen Adjustments
SCREEN ADJUSTMENTS Adjust the image by following the procedure below to get the desired picture when selecting Analog input. The screen adjustments described in this manual are designed to set image position and minimize flicker or blur for the particular computer in use. The monitor is designed to provide the best performance at resolution of 1024 ×... - Page 22 Press the Auto Button (Auto Set-up) C C C C C D D D D D Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Set-up.
-
Page 23: Power Management Feature
H H H H H Select “Brightness” in the Adjustment Program and adjust the Brightness and Contrast so that all 16 levels of gray in the grayscale pattern are visible. Click on “FINISH” to close the Adjustment Program. POWER MANAGEMENT FEATURE The power management feature of this product complies with every power saving requirement of ®... -
Page 24: Trouble Shooting
2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem The picture does not appear. - Page 25 Problem No sound. The audio equipment (computer etc.) is ON. The Audio Cable is properly connected. The Volume is turned up. The Mute is OFF. The audio output level of the audio equipment is within the specification of the monitor. The sound is too The audio output level of the audio equipment is within the specification of the monitor.
-
Page 26: Appendix
APPENDIX SPECIFICATIONS: ProLite E383-W1X / E383-B1X / E383-S1X LCD Panel Driving system Size Pixel pitch Brightness Contrast ratio Viewable angle Response time Display Colors Sync Frequency Dot Clock Maximum Resolution Input Connector Plug & Play Input Sync Signal Input Video Signal... -
Page 27: Specifications: Prolite E383S-W1X / E383S-B1X / E383S-S1X
SPECIFICATIONS: ProLite E383S-W1X / E383S-B1X / E383S-S1X LCD Panel Driving system Size Pixel pitch Brightness Contrast ratio Viewable angle Response time Display Colors Sync Frequency Dot Clock Maximum Resolution Input Connector Plug & Play Input Sync Signal Input Video Signal Input Audio Connector Input Audio Signal Speakers... -
Page 28: Specifications: Prolite E383-W2X / E383-B2X / E383-S2X
SPECIFICATIONS: ProLite E383-W2X / E383-B2X / E383-S2X LCD Panel Driving system Size Pixel pitch Brightness Contrast ratio Viewable angle Response time Display Colors Sync Frequency Dot Clock Maximum Resolution Input Connector Plug & Play Input Sync Signal Input Video Signal... -
Page 29: Specifications: Prolite E383S-W2X / E383S-B2X / E383S-S2X
SPECIFICATIONS: ProLite E383S-W2X / E383S-B2X / E383S-S2X LCD Panel Driving system Size Pixel pitch Brightness Contrast ratio Viewable angle Response time Display Colors Sync Frequency Dot Clock Maximum Resolution Input Connector Plug & Play Input Sync Signal Input Video Signal Input Audio Connector Input Audio Signal Speakers... -
Page 30: Compliant Timing
COMPLIANT TIMING Video Mode 640 × 480 SVGA 800 × 600 VESA 1024 × 768 VGA TEXT 720 × 400* 640 × 480 Macintosh 832 × 624 PC9801 640 × 400* NOTE * The screen is stretched vertically because the screen size ratio is not 4:3. CONNECTOR PIN ASSIGNMENT D-Sub mini 15pin Connector...
