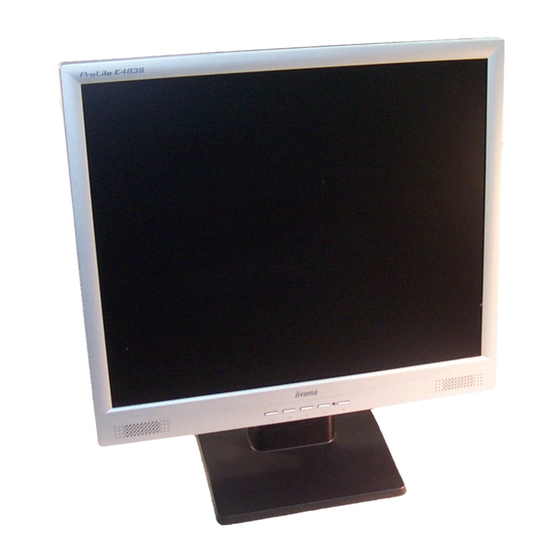

Iiyama Prolite E4835 User Manual
  1. Manuals
  2. Brands
  3. Iiyama Manuals
  4. Monitor
  5. Prolite E4835
  6. User manual

Iiyama Prolite E4835 User Manual

Iiyama lcd monitor user manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

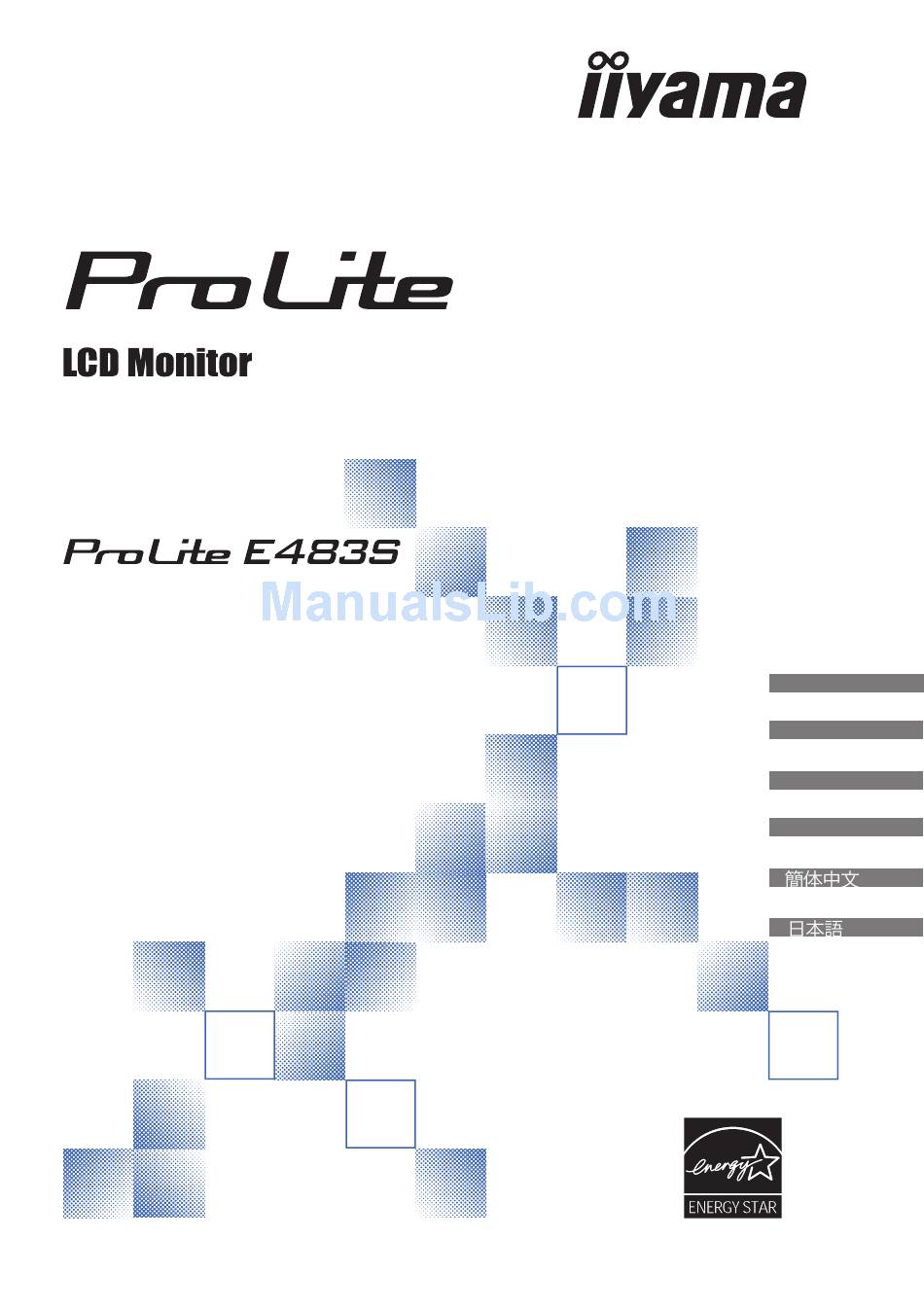

USER MANUAL

Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes to
r e a d c a r e f u l l y t h r o u g h t h i s b r i e f b u t
comprehensive manual before installing and
switching on the monitor. Please keep this
manual in a safe place for your future reference.
FRANCAIS
NEDERLANDS
DEUTSCH
DEUTSCH
SVENSKA
SVENSKA
SVENSKA
ENGLISH
ITALIANO
DEUTSCH
FRANCAIS
ITALIANO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prolite E4835 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Iiyama Prolite E4835

Summary of Contents for Iiyama Prolite E4835

  • Page 1: User Manual

    USER MANUAL Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to r e a d c a r e f u l l y t h r o u g h t h i s b r i e f b u t comprehensive manual before installing and switching on the monitor.
  • Page 2 Why do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture.
  • Page 3 Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances.

  • Page 4: Fcc Declaration Of Conformity

    Consult the dealer or an experienced radio or TV technician for help. To meet the FCC requirements, you should use a signal cable with ferrite core at both ends. Changes or modifications not expressly approved by IIYAMA could void the users authority CAUTION to operate the device under FCC compliance regulations.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS F O R Y O U R S A F E T Y ... 1 SAFETY PRECAUTIONS ... 1 SPECIAL NOTES ON LCD MONITORS ... 3 CUSTOMER SERVICE ... 3 CLEANING ... 3 BEFORE YOU OPERATE THE MONITOR ... 4 CHECKING THE CONTENTS OF THE PACKAGE ...

  • Page 6: For Your Safety

    STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock.
  • Page 7 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.

  • Page 8: Special Notes On Lcd Monitors

    Power Switch for hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself.

  • Page 9: Before You Operate The Monitor

    CHEKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local IIYAMA dealer or regional IIYAMA office.

  • Page 10: How To Uninstall The Stand

    HOW TO UNINSTALL THE STAND (Fig 1) (Fig 3) (Fig 5) 1. Lay the monitor flat on a table with the LCD screen face down (see Fig 1). To prevent the monitor from being scratched, put a piece of soft cloth on the table on which the screen will be set.

  • Page 11: Computer Setting

    Change to the desired signal timing listed on page 19: COMPLIANT TIMING. Windows 95/98/2000/Me/XP Plug & Play The iiyama LCD monitor complies with DDC1/2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP by connecting the monitor to DDC1/2B compliant computer with the Signal Cable supplied.

  • Page 12: Front Panel Control

    FRONT PANEL CONTROL A ACTIVATE/EXIT OSD C SCROLL UP / INCREASE E LED INDICATOR G SPEAKERS INSTALLATION H AC CONNECTOR (AC IN) J DVI-D-24PINCONNECTOR(DVI) L KEYHOLE FOR SECURITY LOCK You can fasten a security lock and cable to prevent the monitor from being removed NOTE without your permission.

  • Page 13: Operating The Monitor

    OPERATING THE MONITOR USING OSD FUNCTION Press the button to display the main menu shown below. Press the button to scroll to the desired menu option. Press the button to select the menu option. Press the button to select submenu option. After making adjustment, press MAIN MENU MAIN MENU...
  • Page 14 C o n t r a s t 1 : Exit To adjust the foreground white level of screen image. Contrast: : increase contrast, B r i g h t n e s s 1 : Exit To adjust the background black level of screen image. Brightness: : increase brightness, Color Adjust...
  • Page 15 User Color 1 : Exit User Color: Individual adjustments for red(R), green (G), blue (B). 1. Press button to set adjustment and select next color to adjust. 2. Press button to adjust selected color. Information H.Frequency: V. Frequency: P i x e l C l o c k : Resolution: 1280 x 1024 Model Number:...
  • Page 16 Image Adjust H. /V. Position H.Size Fine Tune Sharpness 1 : Exit Image Adjust: Adjust Horizontal/ Vertical position, H. Size, Fine Tune and Sharpness. H. Position Use Up/Down to Adjust 1 : Exit H./V. Position: To adjust the horizontal and vertical position of the video. H.

  • Page 17: Language Select

    F i n e Tu n e 1 : Exit Fine Tune: To adjust the delay time. Press to adjust to user preference. S h a r p n e s s 1 : Exit Sharpness: Adjusts the clarity of a non-SXGA (1280x1024) signal. Press button to adjust.
  • Page 18 Language Select 1 : Exit Language Select: Allows the user to choose from available languages. Resolution Notice Disable Enable 1 : Exit Resolution Notice: There is a OSD message of “For best picture quality change resolution to ”1280 x 1024” displayed on the screen after 30 seconds Powering ON or changing mode to lower resolutions (640 x 480/ 720 x 400/ 800 x 600/ 1024x768), if the function was “enable”.
  • Page 19 O S D Po s i t i o n 1 : Exit OSD Position: Press the button to select the horizontal or vertical OSD position. Horizontal OSD Position horizontally repositions all OSD screens. moves OSD right, moves OSD left. Vertical OSD Position vertically repositions all OSD screen.
  • Page 20 Setup Menu Language Select Resolution Notice OSD Position OSD Time Out Input Select 1 : Exit Input Select: When press Input Select change Input singnal to Analog or Digital. Memory Recall Memory Recall: Return the adjustments back to factory settings. Press the button to select the Memory Recall menu option.

  • Page 21: Care And Maintenance

    CARE AND MAINTENANCE CARE CARE Avoid exposing your monitor directly to sunlight or other heat source. Place your monitor away from the sun to reduce glare. Put your monitor in a well ventilated area. Do not place anything heavy on top of your monitor.

  • Page 22: Trouble Shooting

    TROUBLE SHOOTING No Power Make sure A/C power is securely connected to the power adapter and the power supply is firmly connected to the monitor. Plug another electrical device into the power inlet to verify that the outlet is supplying proper voltage.

  • Page 23: Appendix

    APPENDIX SPECIFICATIONS LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 48.3cm / 19.0" Pixel pitch 0.294mm H × 0.294mm V Brightness 250cd/m Contrast ratio 0 : 1 (Typical) Viewable angle Right / Left : 7 degrees each, Up / Down: Response time ms (Black, white, black) Display Colors...

  • Page 24: Dimensions

    DIMENSIONS DIMENSIONS 414.5mm/16.3" COMPLIANT TIMING Video Mode COMPLIANT TIMING COMPLIANT TIMING 640 × 480 VESA SVGA 800 × 600 1024 × 768 SXGA 1280 × 1024 720 × 400 VGA TEXT 640 × 480 Macintosh 832 × 624 APPENDIX 70.5mm/2.8" 201.5mm/7.9"...

  • Page 25: Connector Pin Assignment

    CONNECTOR PIN ASSIGNMENT D-Sub mini 15pin Connector Red video Green video Blue video Ground Red video ground Green video ground Blue video ground DVI-D 24pin Connector T.M.D.S Data 2– T.M.D.S Data 2+ T.M.D.S Data 2 Ground DVI-D Clock line (SCL) * Data line (SDA) * V-Sync T.M.D.S Data 1–...
