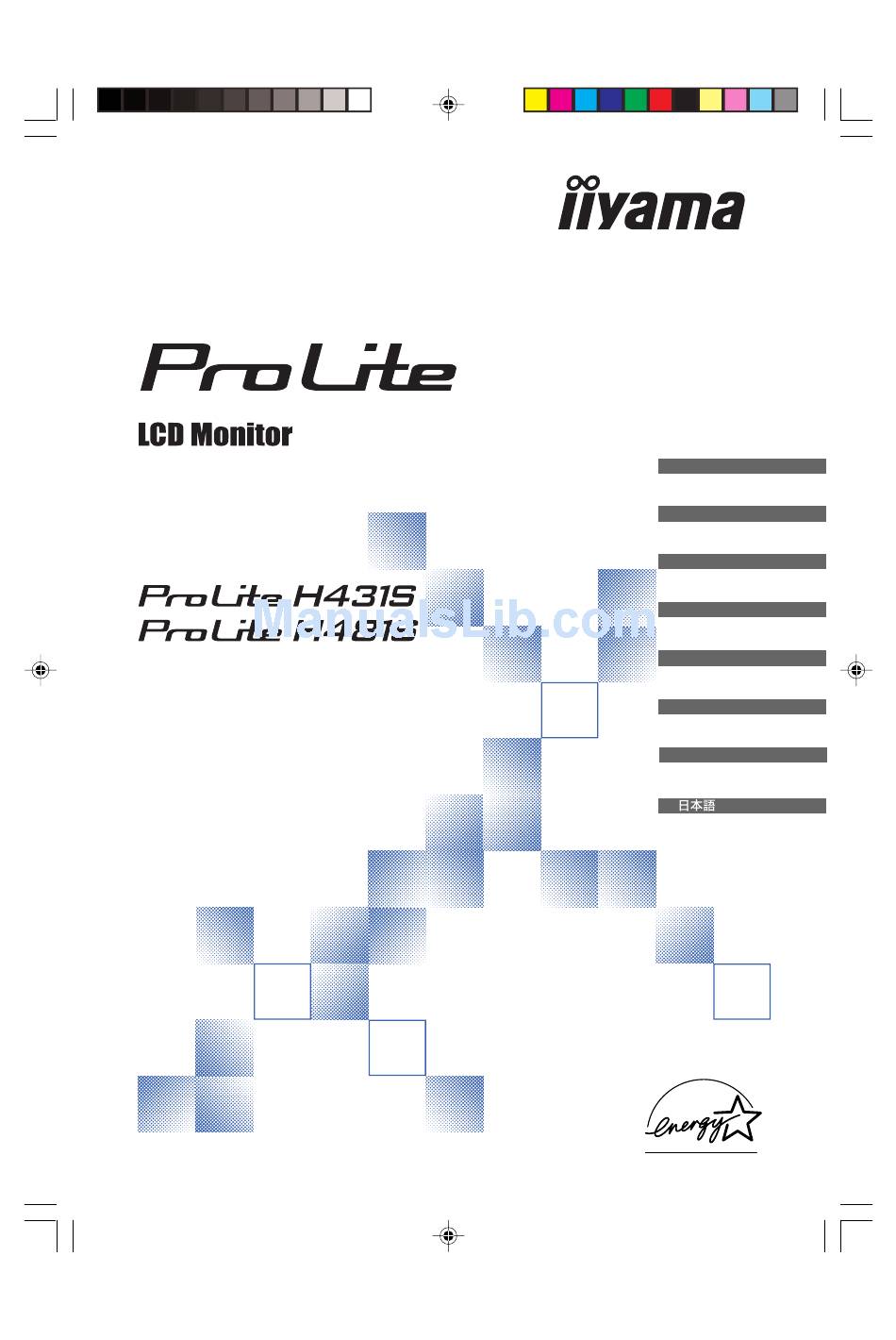

USER MANUAL
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes to
read carefully through this brief but
comprehensive manual before installing and
switching on the monitor. Please keep this
manual in a safe place for your future
reference.
PLH431S-481S-e.P65
1
ENGLISH
ENGLISH
DEUTSCH
FRANCAIS
NEDERLANDS
SVENSKA
ITALIANO
ESPAÑOL
2005/03/25, 13:17
Advertisement
Table of Contents
Related Manuals for Iiyama ProLite H431S
Summary of Contents for Iiyama ProLite H431S
-
Page 1: User Manual
ENGLISH ENGLISH DEUTSCH FRANCAIS NEDERLANDS SVENSKA Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to ITALIANO read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this ESPAÑOL... -
Page 2: Why Do We Have Environmentally Labelled Computers
Congratulations! You have just purchased a TCO’99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products. -
Page 3: Environmental Requirements
Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. -
Page 4: Fcc Declaration Of Conformity
To meet the FCC requirements, you should use a signal cable with ferrite core at both ends. CAUTION Changes or modifications not expressly approved by iiyama could void the users authority to operate the device under FCC compliance regulations. CANADIAN DEPARTMENT OF COMMUNICATIONS COMPLIANCE... -
Page 5: Table Of Contents
FEATURES ..................5 CHECKING THE CONTENTS OF THE PACKAGE ......6 OPTIONAL PARTS ................6 CONTROLS AND CONNECTORS : ProLite H431S ......7 CONTROLS AND CONNECTORS : ProLite H481S ......8 CONNECTING YOUR MONITOR ............9 COMPUTER SETTING ............... 10 ADJUSTING THE HEIGHT AND THE VIEWING ANG ...... -
Page 6: For Your Safety
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock. - Page 7 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 8: Special Notes On Lcd Monitors
Power Switch for hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself. -
Page 9: Before You Operate The Monitor
BEFORE YOU OPERATE THE MONITOR The monitor functions as a hub when connected to a USB compliant computer and USB peripherals. However, with older operating systems and/or BIOS settings in your computer, the USB hub may not operate. In this case, please contact your computer dealer first for advice. Please stand the monitor and then remove the stopper on the back of the stand slowly while pushing top face of the stand before you install... -
Page 10: Features
Clear Display for Moving Pictures & Photographs Digital Character Smoothing Automatic Set-up Stereo Speakers ProLite H431S: 2 × 1.5W Stereo Speakers & Headphone Connector ProLite H481S: 2 × 2W Stereo Speakers & Headphone Connector Economy Mode Reduced Power Consumption Plug & Play VESA DDC2B Compliant... -
Page 11: Checking The Contents Of The Package
Optional parts as below are available for your LCD monitor. Please contact your local iiyama dealer or regional iiyama office for more details. The Protection Sheet may be attached to the LCD panel surface to protect it from stains or scratches. -
Page 12: Controls And Connectors : Prolite H431S
CONTROLS AND CONNECTORS : ProLite H431S AC IN LINE IN DVI-D D-SUB <Front> <Back> A Power Switch / Power Indicator ( Green: Normal operation (ProLite H431S) NOTE Blue: Normal operation (ProLite H431S-B) Orange: Power Management The monitor enters into power management mode which reduces the power consumption to less than 2W when receiving no horizontal and/or vertical sync signal. -
Page 13: Controls And Connectors : Prolite H481S
CONTROLS AND CONNECTORS : ProLite H481S AC IN DVI-D D-SUB LINE <Front> <Back> A Power Switch / Power Indicator ( Green: Normal operation (ProLite H481S) NOTE Blue: Normal operation (ProLite H481S-B) Orange: Power Management The monitor enters into power management mode which reduces the power consumption to less than 2W when receiving no horizontal and/or vertical sync signal. -
Page 14: Connecting Your Monitor
The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor. -
Page 15: Computer Setting
Change to the desired signal timing listed on page 28: COMPLIANT TIMING. Windows 95/98/2000/Me/XP Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 16: Adjusting The Height And The Viewing Ang
ADJUSTING THE HEIGHT AND THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's Height and angle to your own preference. Hold the stand so that the monitor does not topple when you change the monitor’s angle. -
Page 17: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 28. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 20 for SCREEN ADJUSTMENTS. -
Page 18: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Analog Input Menu : 1 Menu:1 (Analog) 1280 × 1024 H: 80.0 KHz V: 75.0 Hz Adjustment Item Problem / Option Button to Press Too dark Brightness * Direct Too bright Too dull Contrast Direct Too intense Clock * To correct flickering text or lines Phase *... -
Page 19: Screen Adjustments
Menu:2 Menu : 2 (Analog) 1280 × 1024 H: 80.0 KHz V: 75.0 Hz Adjustment Item Problem / Option Button to Press Return to Menu. Auto Set-up * Adjust Clock, Phase, V-Position and H-Position Direct automatically. The Auto Set-up is not performed when the Setting signal input is changed. - Page 20 Menu : 2 (Analog) Adjustment Item Problem / Option Gamma Mode1 High contrast Dark Mode2 Normal Economy Mode Mode1 Brightness of back-light is reduced. Direct Mode2 Brightness of back-light is reduced more than Mode1. NOTE is displayed while Economy Mode is active. Return to Menu Highlight “Menu : 2”...
- Page 21 Menu:3 Menu : 3 (Analog) 1280 × 1024 H: 80.0 KHz V: 75.0 Hz Problem / Option Button to Press Adjustment Item Too soft Volume Direct Too loud NOTE is displayed while Mute is active. 1 2 3 4 5 OSD Position You can move the OSD display area to any one of the following 5 positions...
-
Page 22: Digital Input
Digital Input Menu : 1 Menu:1 (Digital) 1280 × 1024 H: 80.0 KHz V: 75.0 Hz Adjustment Item Problem / Option Button to Press Too dark Brightness * Direct Too bright Too dull Contrast Direct Too intense Color 1: 9300K Color Temp. - Page 23 Menu : 1 (Digital) Adjustment Item Problem / Option Normal Economy Mode Mode1 Brightness of back-light is reduced. Direct Mode2 Brightness of back-light is reduced more than Mode1. NOTE is displayed while Economy Mode is active. Return to Menu Highlight “Menu : 1” again. Direct You can skip the Menu pages and display an adjustment scale directly by using the following button operations.
- Page 24 Menu:2 Menu : 2 (Digital) 1280 × 1024 H: 80.0 KHz V: 75.0 Hz Adjustment Item Problem / Option Button to Press Too soft Volume Direct Too loud NOTE is displayed while Mute is active. 1 2 3 4 5 OSD Position You can move the OSD display area to any one of the following 5 positions...
-
Page 25: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Set-up, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http:// www.iiyama.com). - Page 26 C C C C C Press the Auto Button. (Auto Set-up) D D D D D Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Set-up.
- Page 27 G G G G G Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern. – NOTE NOTE In case the strong flicker or blurs remain on a part of the screen, repeat steps F and G because the Clock may not be adjusted correctly.
-
Page 28: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with every power saving requirement of ® and VESA DPMS. When activated, it automatically reduces unnecessary power NERGY consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 29: Trouble Shooting
2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... - Page 30 Problem Check The audio equipment (computer etc.) is ON. No sound. The Audio Cable is properly connected. The Volume is turned up. The Mute is OFF. The audio output level of the audio equipment is within the specification of the monitor. The sound is too The audio output level of the audio equipment is within the specification of loud or too quiet.
-
Page 31: Appendix
APPENDIX SPECIFICATIONS : ProLite H431S LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 43cm / 17.0" Pixel pitch 0.264mm H × 0.264mm V Brightness 300cd/m (Typical) Contrast ratio 700 : 1 (Typical) Right / Left: 75 degrees each, Up: 75 degrees, Down: 60 degrees... -
Page 32: Specifications : Prolite H481S
SPECIFICATIONS : ProLite H481S LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 48cm / 19.0" Pixel pitch 0.294mm H × 0.294mm V Brightness 300cd/m (Typical) Contrast ratio 700 : 1 (Typical) Viewable angle Right / Left: 75 degrees each, Up: 75 degrees, Down: 60 degrees Response time 8ms (Black, white, black) Display Colors... -
Page 33: Dimensions : Prolite H431S
DIMENSIONS : ProLite H431S 368.5mm/14.5" 53mm/2.1" 339.5mm/13.4" 300.5mm/11.8" ( ):Maximum adjustment range DIMENSIONS : ProLIte H481S 418mm/16.5" 65mm/2.6" 378.5mm/14.9" 300.5mm/11.8" ( ):Maximum adjustment range COMPLIANT TIMING Horizontal Vertical Dot Clock Video Mode Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 31.500MHz 37.500kHz 75.000Hz 640 ×... -
Page 34: Connector Pin Assignment
CONNECTOR PIN ASSIGNMENT D-Sub mini 15pin Input Signal Input Signal Connector Red video Green video / Sync on green Ground Blue video Reserved port Reserved port Data line (SDA)* Ground Ground H-Sync/HV-Sync Red video ground V-Sync Green video ground Clock line (SCL)* Blue video ground * Compliant to VESA DDC.
